Soundsmith
Zephyr MkIII
Zephyr MkIII
Regular price
$2,750.00 AUD
Regular price
Sale price
$2,750.00 AUD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

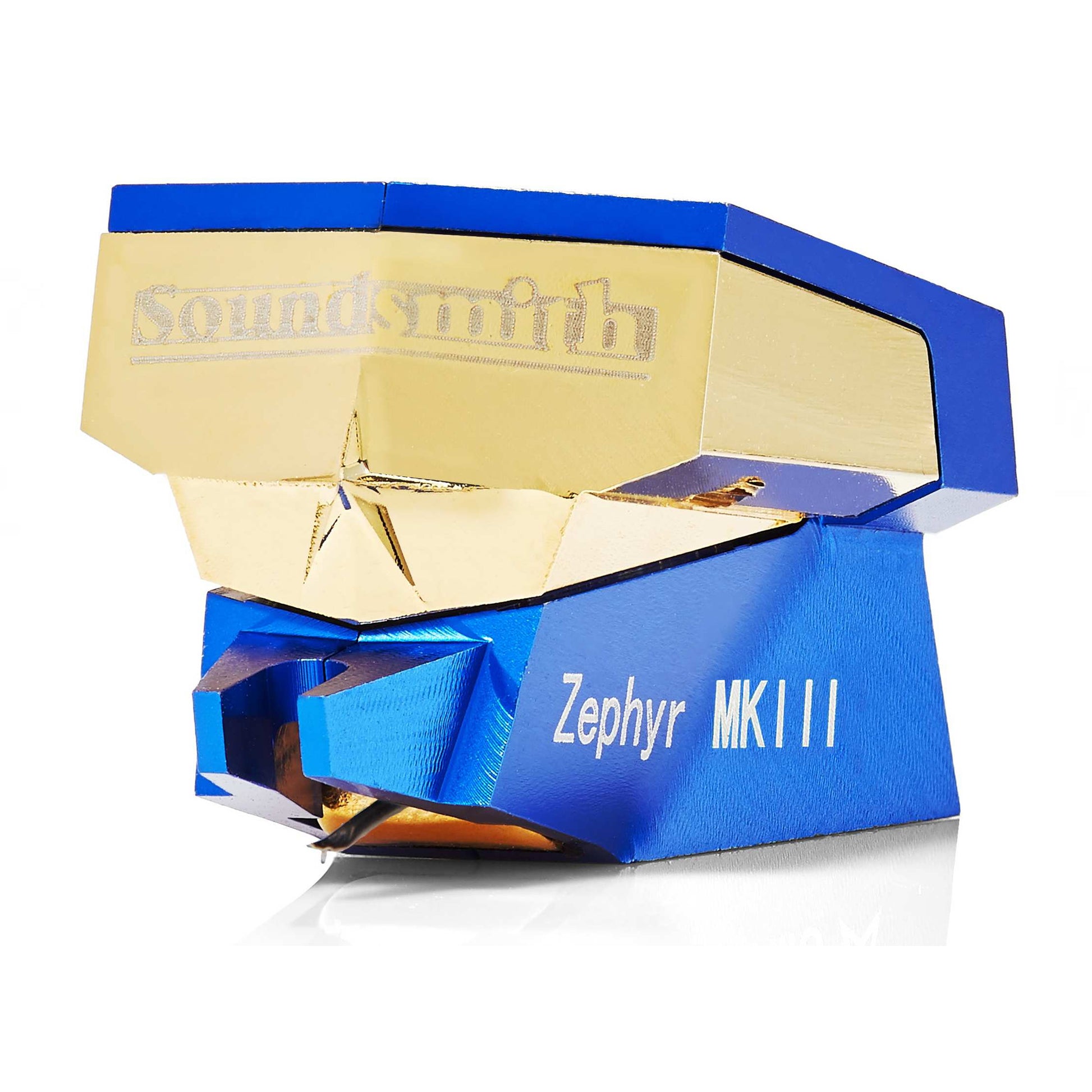

Zephyr MkIII
The Soundsmith Zephyr MKIII phono cartridge employs a “Trickle Down“ Technology from a unique Energy Distribution System within the cartridge body as used in the Soundsmith’s well-received high-end Sussurro Cartridge.
The Zephyr MKIII features a newly developed Aluminum cantilever with contact line diamond stylus — capable of truly remarkable separation, sound stage and imaging. The new ES DEMS body design unique energy distribution system contributes to the Zephyr MKIII‘s ability to produce high-end performance from a moderately priced cartridge.
Technical Specifications:
Stylus Specifications
- Stylus Type: Selected Contact Line, Low Mass Nude Stylus
- Stylus Radius of Curvature: 6 x 17 μm
Cantilever
- Material: Aluminum Alloy
Recommended Tracking Force
- Range: 1.8 to 2.2 grams
Performance Characteristics
- Effective Tip Mass: 0.32 mg
- Compliance: 10 μm/mN (Low Compliance)
- Frequency Response: 15 - 45,000 Hz ± 2.0 dB
-
Channel Separation (Stereo Only):
- 1000 Hz: >28 dB
- 50-15,000 Hz: >25 dB
-
Channel Difference:
- Stereo: <1.0 dB
- Dual Mono Operation (with Optimal VTF Setting): <0.5 dB
Output Voltage
- Level: 2.4 mV
Cartridge Details
- Weight: 12.2 grams
- Loading Impedance: ~47 kΩ
