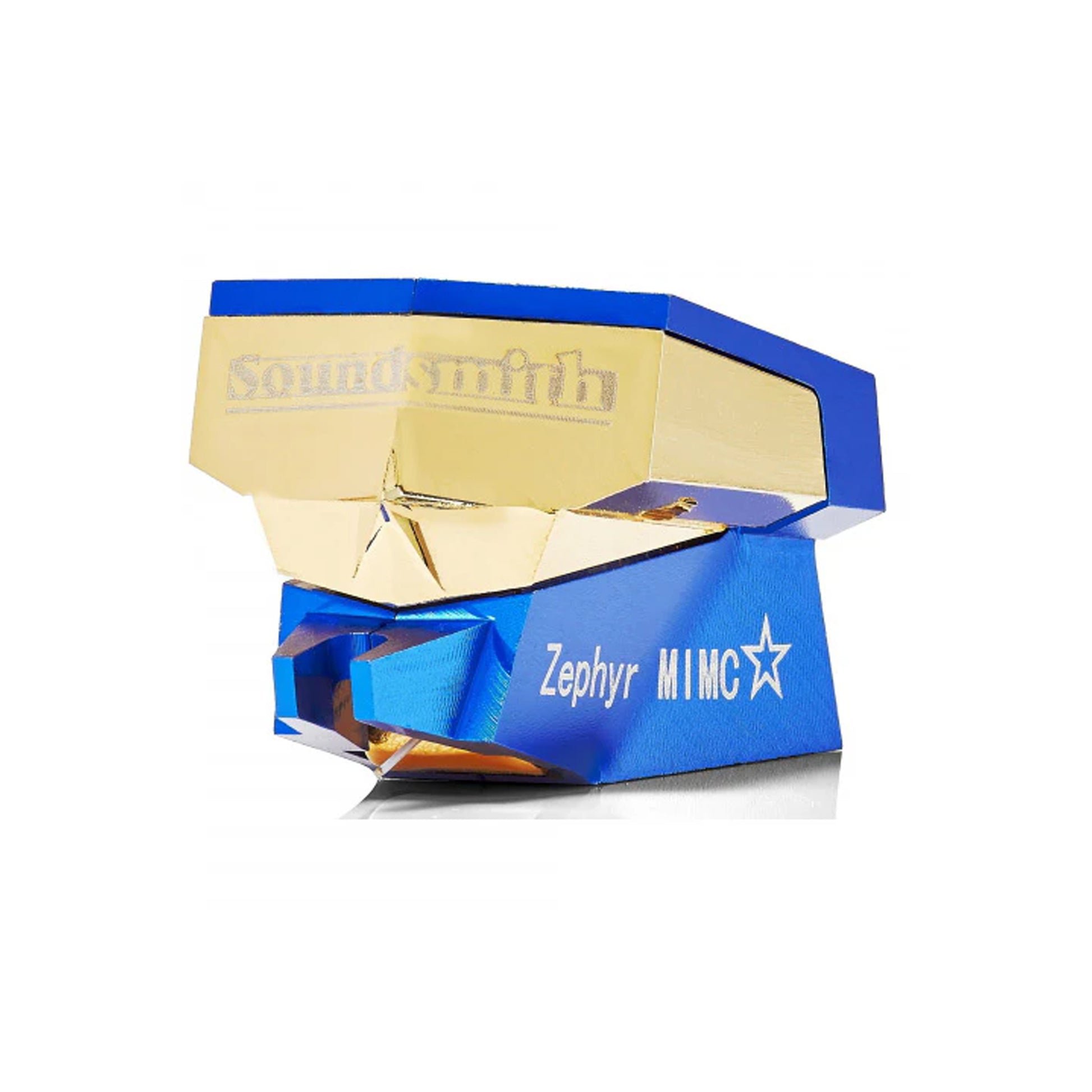

Zephyr MIMC Star

Zephyr MIMC Star

Responding to the demand for a lower priced, low-output design for those who own high gain preamps, the Soundsmith recently developed the Zephyr MIMC STAR , which follows in the footsteps of the highly successful high-output Zephyr II.

The handcrafted Zephyr MIMC STAR (Moving Iron for Moving Coil Preamps) is based on the world famous Sussurro cartridge and captures the gist of the latter‘s sonic signature at a much more reasonable price.

The Zephyr MIMC STAR has been specifically designed to complement both unipivot arms and gimbaled bearing arms. Its sonic attributes include evenly balanced frequency response, dynamic shadings and remarkable detail retrieval; its slam will leave even the most die-hard analog buffs breathless.

Technical Specifications:

Stylus Specifications

• Stylus Type: Selected Contact Line, Low Mass
• Stylus Radius of Curvature: 6 x 17 μm

Cantilever

• Material: Laser Drilled Sapphire

Recommended Tracking Force

• Range: 1.8 to 2.2 grams

Performance Characteristics

• Effective Tip Mass: 0.32 mg
• Compliance: 10 μm/mN (Low Compliance)
• Frequency Response: 15 - 45,000 Hz ± 2.0 dB
• Channel Separation (Stereo Only):
  • 1000 Hz: >32 dB
  • 50-15,000 Hz: >25 dB
• Channel Difference:
  • Stereo: <1.0 dB
  • Dual Mono Operation (with Optimal VTF Setting): <0.5 dB

Output Voltage

• Level: 0.4 mV

Cartridge Details

• Weight: 12.2 grams
• Loading Impedance: ~470 Ω
