TToby

TToby

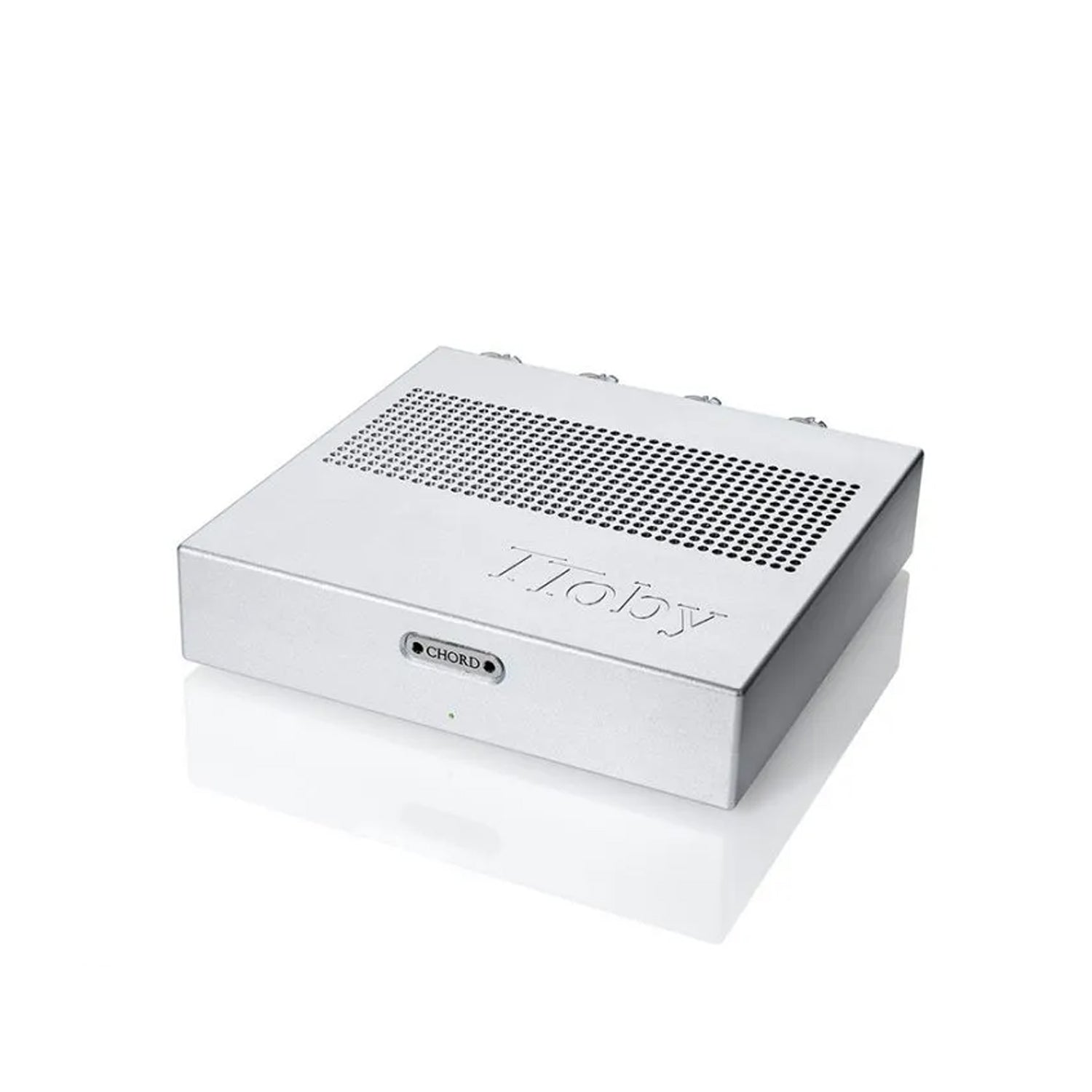

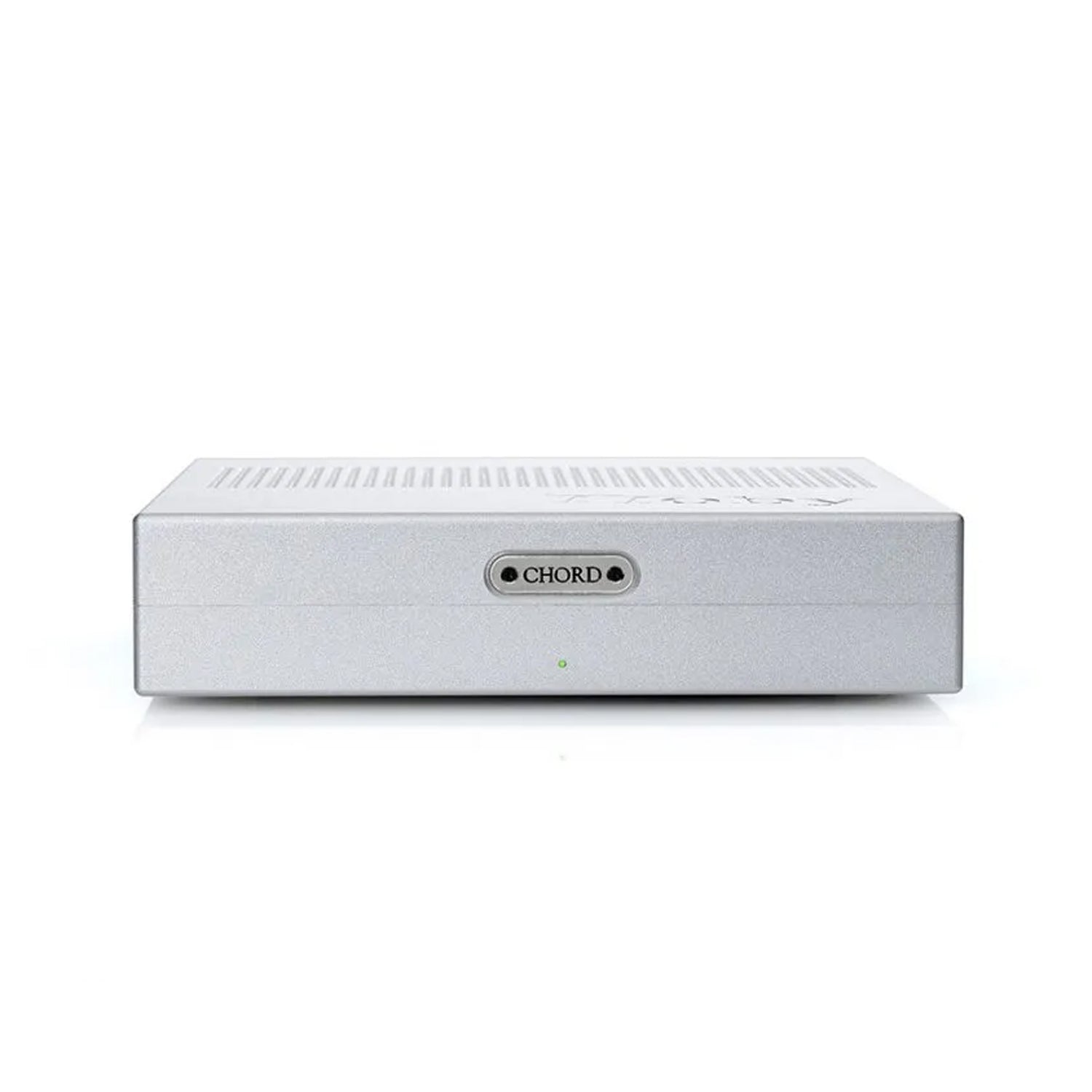

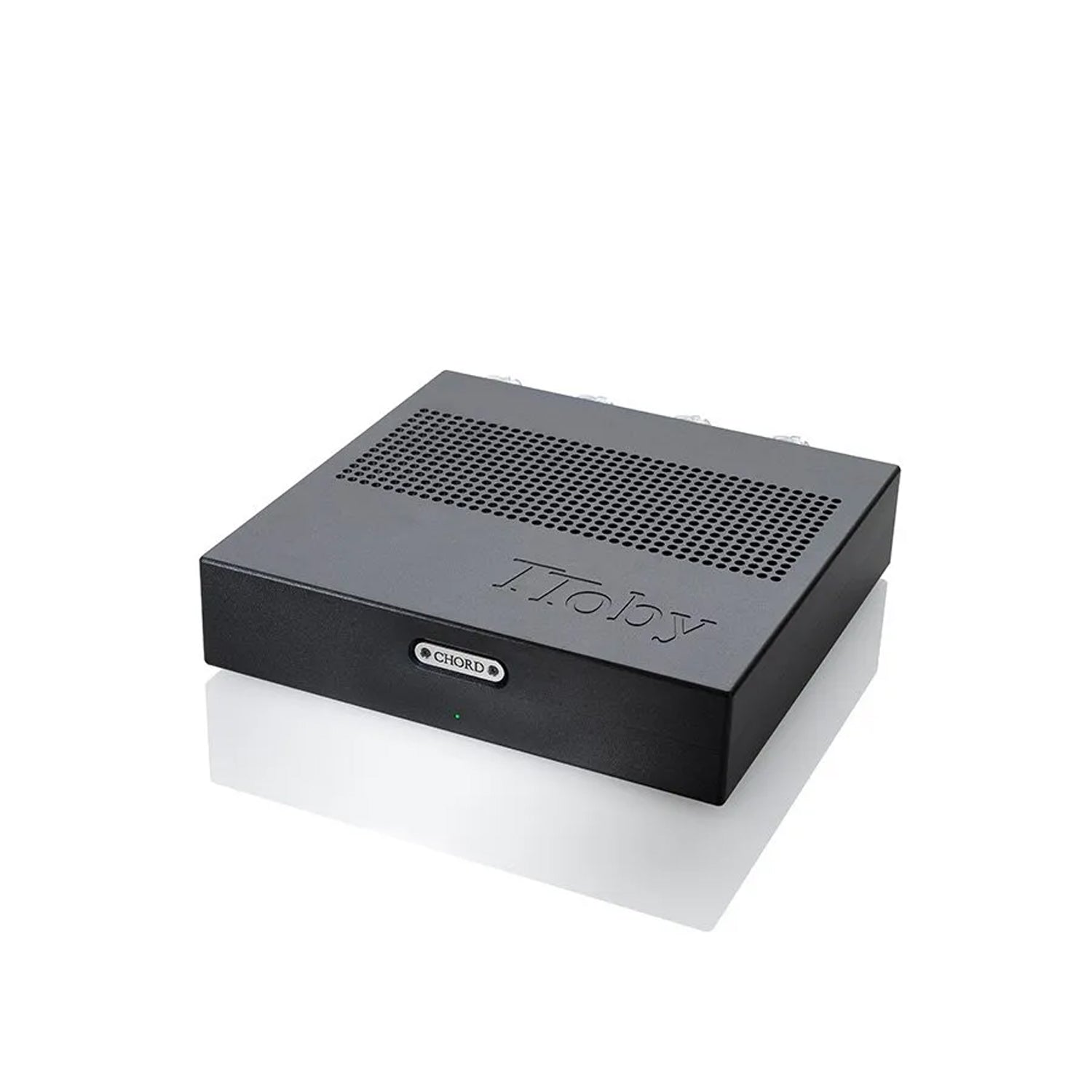

The TToby has been designed to complement our desktop DAC/headphone amplifier, the Hugo TT 2 and shares the same compact form factor as its stablemate. The combination of our 1M-tap digital upscaling device M Scaler, Hugo TT 2 and TToby provides a high-quality hi-fi system, with desktop dimensions and a space-saving footprint. Despite its size, the TToby sets new standards for small amplifiers and takes full advantage of Chord Electronics’ proprietary amplification technology and design know-how.

The addition of TToby, enables owners of the Hugo TT 2 to fully exploit the device as a ‘digital preamp’, effortlessly driving a wide variety of loudspeakers, large or small, in addition to the Hugo TT 2’s headphone prowess. The TToby is a 100-watt design, featuring both an unbalanced and balanced input, to take advantage of the Hugo TT 2’s XLR output.

TToby features two of our famous high-frequency power supplies and benefits from forced air-cooling through the aluminium casework by means of a sonically closed anechoic miniature multi-speed quadruple-fan plenum chamber, enabling the external design to be free of sharp heatsinks and, therefore, carry a stunning aesthetic. The M Scaler/Hugo TT 2/TToby combination offers both class-leading DAC and amplification technology via headphones and loudspeakers, giving complete flexibility within the demands of busy households.

FEATURES

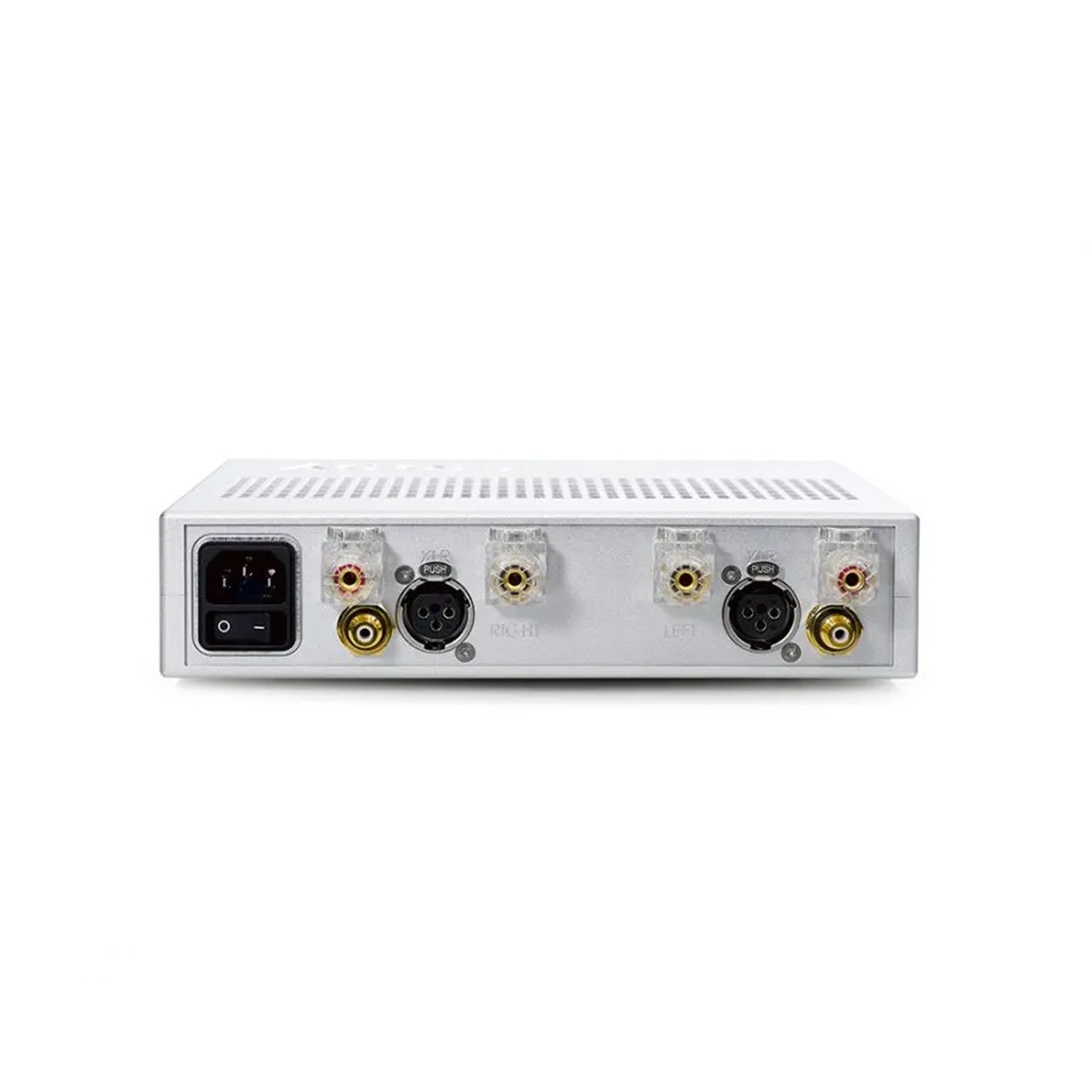

Inputs:

1x Stereo Pair of Gold Plated Balanced XLR Inputs

1x Stereo Pair of Gold Plated Unbalanced RCA Inputs

Output:

1x Pair of High Quality, High Current, Gold Plated Type Speaker Terminals

KEY FEATURES

• 100w into 4Ω

• >-83dB Signal to Noise Ratio

• Class AB Sliding Bias

• HF Switch Mode Power Supply

• Chord MOSFET Construction

• Fully Balanced Circuitry

• Fan Cooled

• Stereo Balanced XLR Inputs

• Stereo Unbalanced RCA Inputs

• Solid Aluminium Chassis

TECHNICAL SPEC

Output Power:

100w RMS per channel @ 0.016% distortion into 4Ω

Frequency Range:

5Hz – 100kHz +/- 0.5dB

Signal to Noise Ratio:

Better than -83dB

Channel Separation:

Better than 95dB

Input Impedance:

100kΩ Unbalanced/Balanced

Input Capacitance:

<32pf

Output Inductance:

2.6μH

Slew Rate:

70v per μS 1kHz, 20v Square Wave

Gain:

30dB

Stability:

Unconditional

Dimensions:

5.9cm (H) 23.5cm (W) 25.6cm (D)

Weight:

3.75kG
