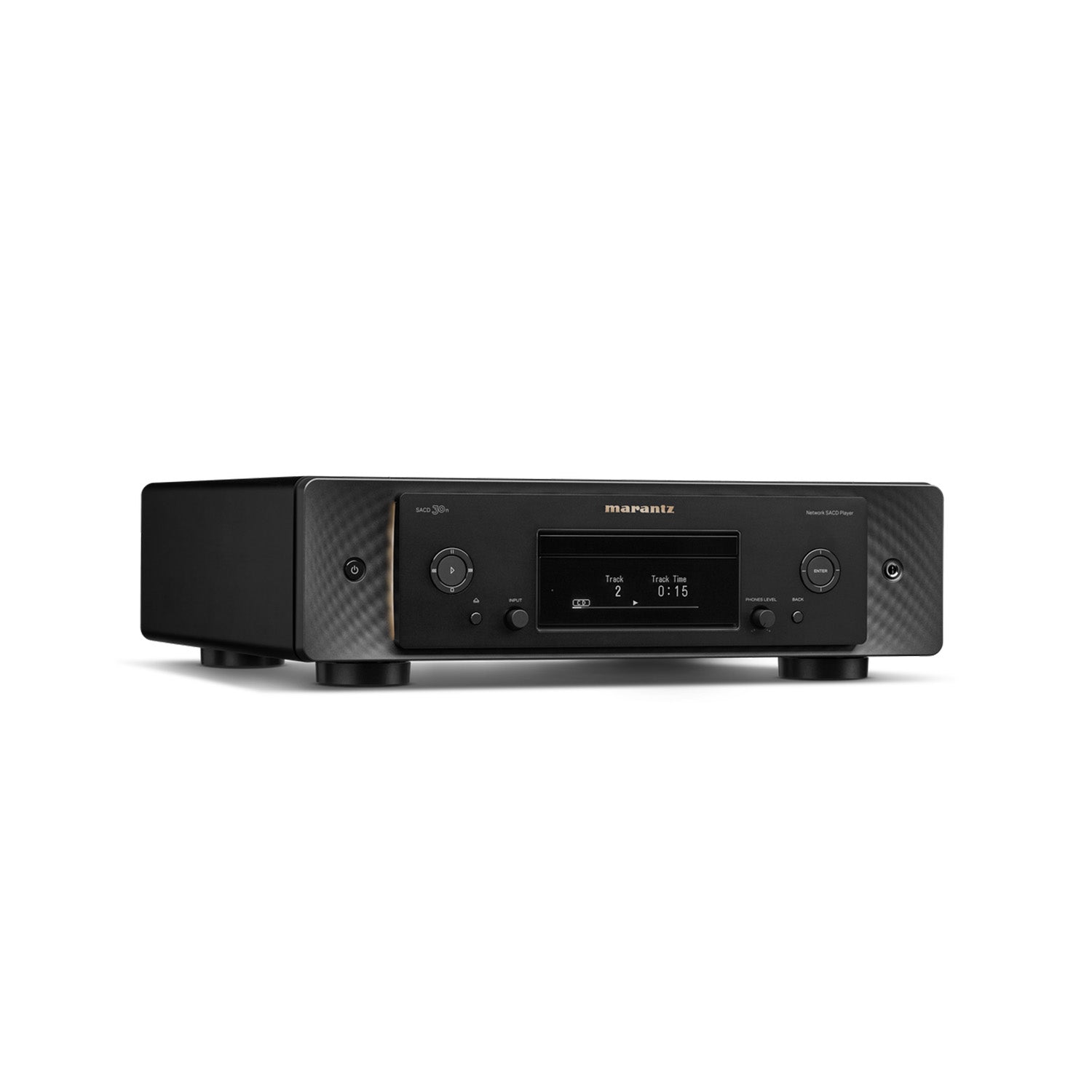

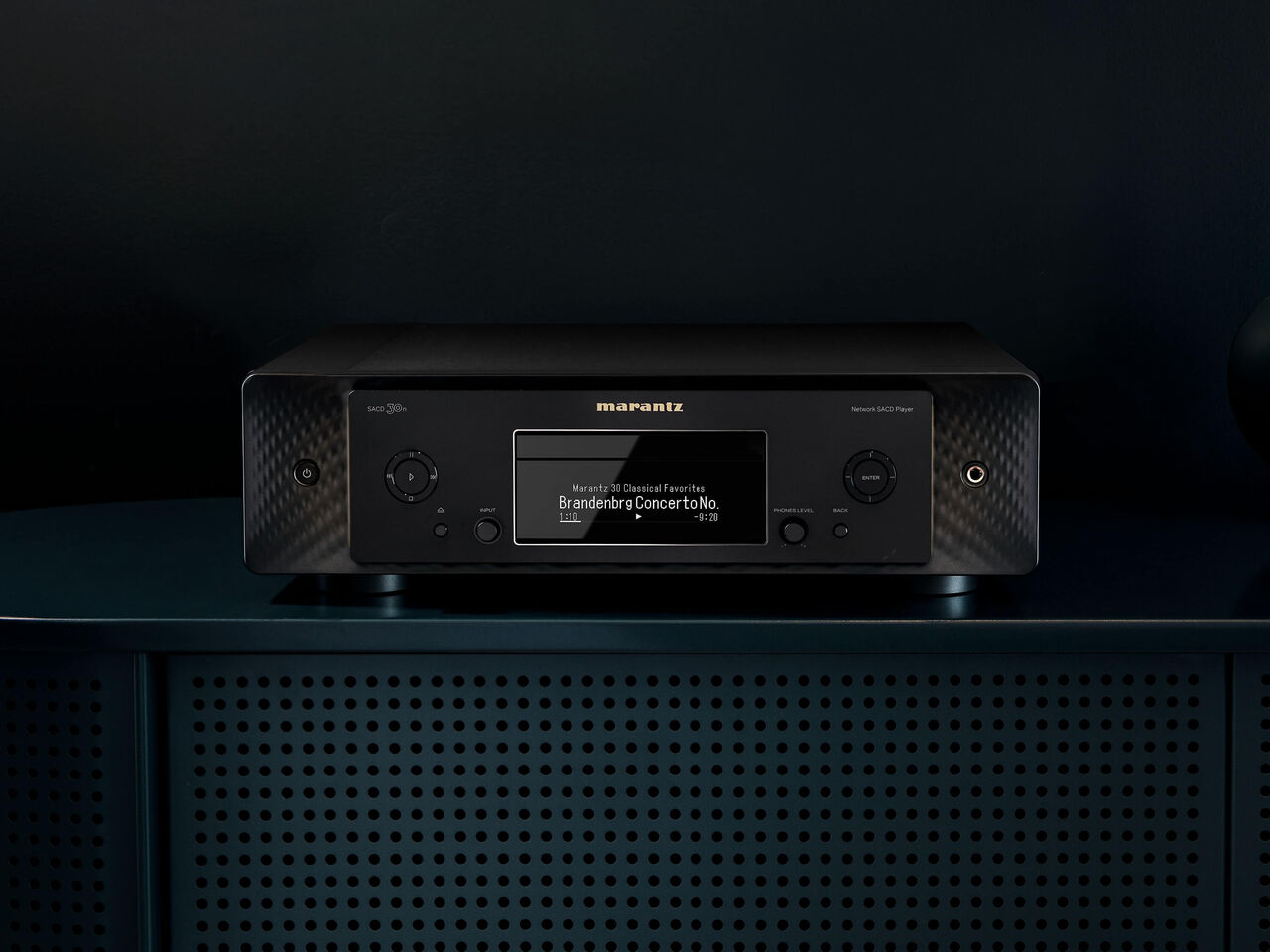

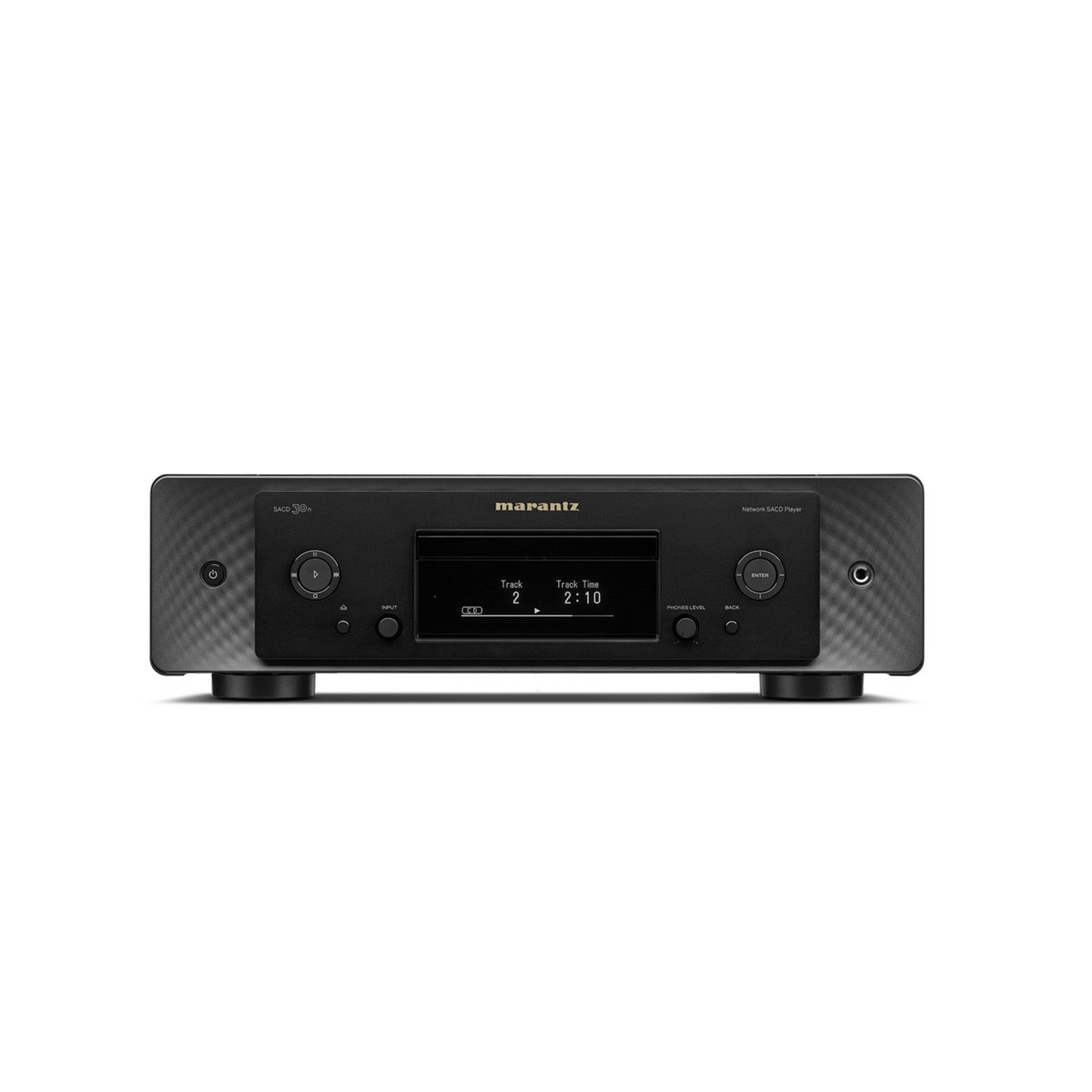

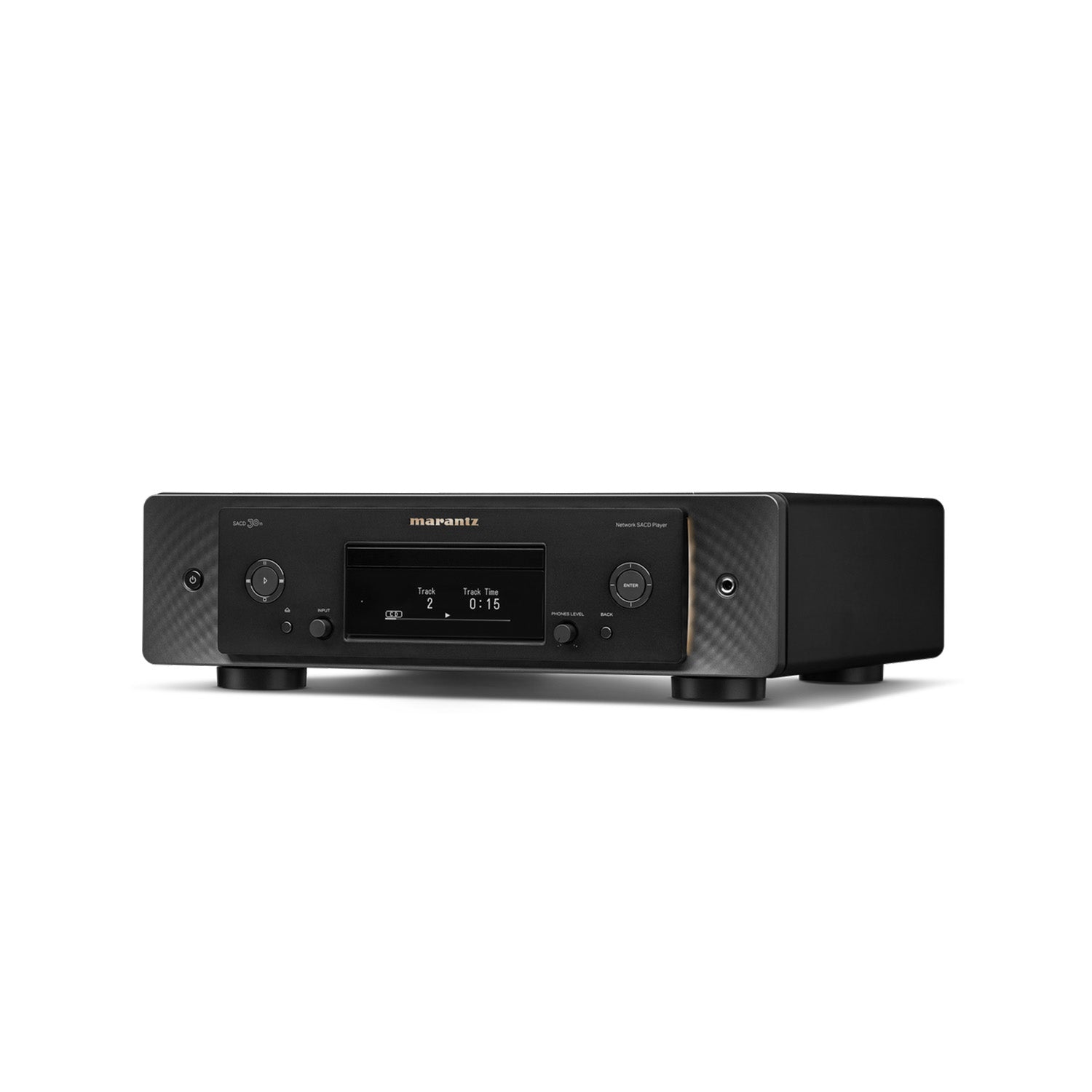

Marantz SACD 30n

Marantz SACD 30n

Featuring network capabilities and exquisite CD and SACD playback, SACD 30n was designed for any experienced audiophile who appreciates flexibility in format.

Specifications

• Crafted in Shirakawa, Japan
• SACD, CD & DVD Support
• Exclusive HDAM
• DSD Support
• HEOS Built-in
• Marantz Musical Mastering DAC

Key Features

Features

• AirPlay 2Yes
• Amazon Prime Music* / Pandora*Yes / No
• Asynchronous mode rear USB-BYes
• Bit-perfect transmissionYes
• CD Compatibility: CD / CD-R/RW / SA-CD / WMA / MP3 / AACYes / Yes / Yes / Yes / Yes / No
• CD-Text / SA-CD Text / ID3 Tag / WMA Meta Tag / AAC Meta dataNo / Yes / Yes / Yes / No
• Copper Plated ChassisNo
• Customised ComponentsYes
• DAC operation mode: USB B type / Coax / OpticalYes / Yes / Yes
• Data Disc Compatibility: DSD / WAV / ALACYes / Yes / Yes
• Digital out off / Audio EX ModeYes / No
• Extra metal plate for chassis strengthingYes (1.5mm)
• HDAM versionHDAM+HDAM SA3
• Headphone: Standard / Buffer / Current feedbackNo / No / Yes (HDAM SA2)
• HEOS Multiroom and StreamingYes
• High Grade Audio ComponentsYes
• Internet radiotunein
• Jitter reducerYes
• Network Audio StreamingYes
• Power Transformer: Toroidal / ElYes / No
• Roon TestedYes
• Signal isolator for DAC Mode operationYes
• Spotify Connect* / Tidal* / Deezer* / others *Yes / Yes / Yes / Yes
• Symmetric circuit layoutYes
• USB input for memory stickYes
• USB-B DSD Audio Streaming (DoP): DSD2.8 / DSD5.6 / DSD11.2Yes / Yes / Yes
• Voice Control - Google Assist / Apple SiriYes / Yes
• Voice Control - Microphone built-inNo
• Voice Control - Works with Amazon AlexaYes

General

• Auto Power offYes
• Available Colors: Gold / Silver / Black / Silver-GoldNo / No / Yes / Yes
• Carton Maximum Dimensions (W x D x H) in mm534 x 522 x 255
• Carton Weight (inc. product) in kg16.2
• Detachable Power CableYes
• Maximum Dimensions (W x D x H) in mm443 x 424 x 130
• Metal Front PanelYes
• Power Consumption in W48
• Remote ControlRC002PMND
• Standby Consumption in W0.4
• Weight in kg13.5

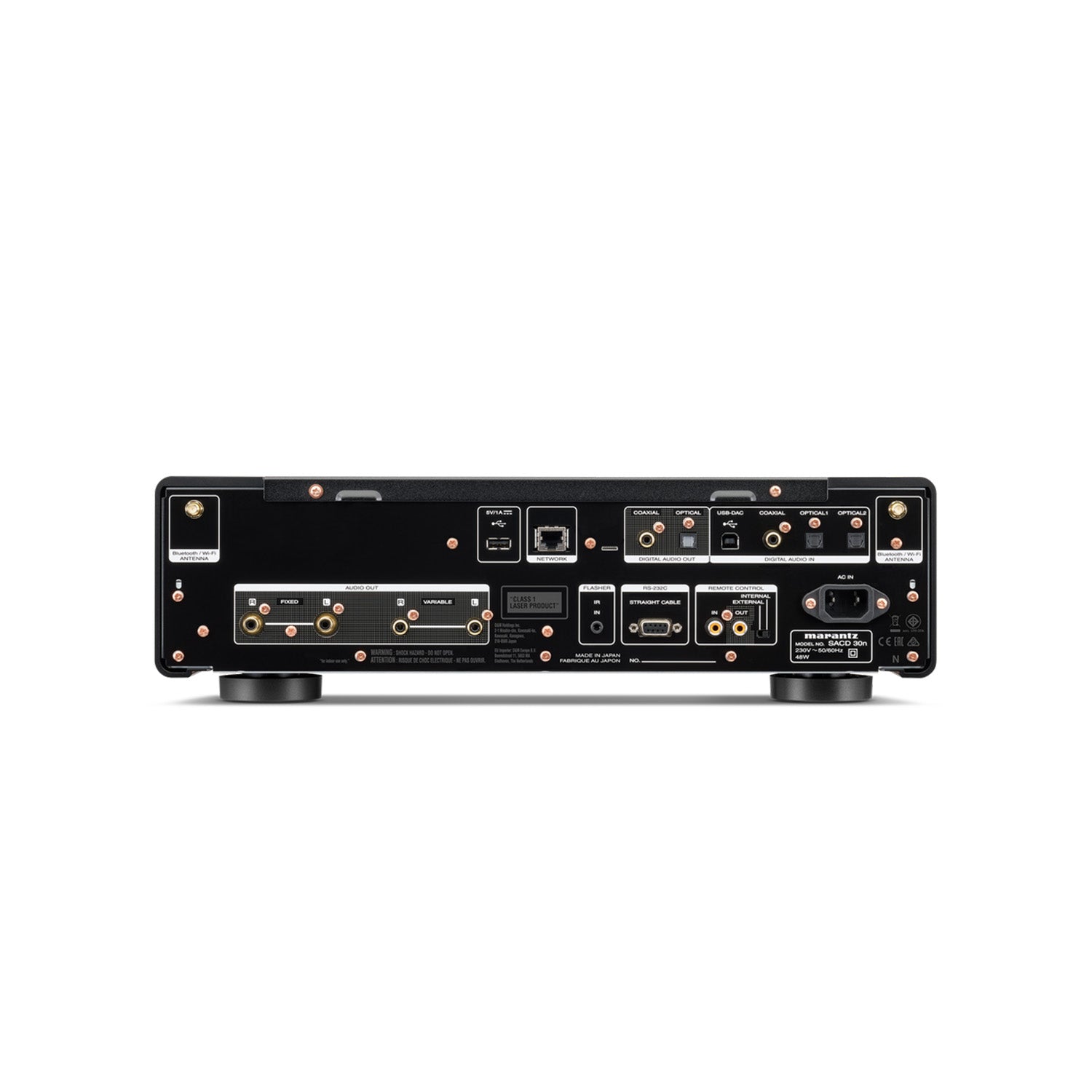

Inputs Outputs

• Analogue Out (Cinch)1
• Balanced OutNo
• D-BusYes
• Digital Coaxial In / Out2 / 1
• Digital Optical In / Out1 / 1
• Ethernet portYes
• Flasher InputYes
• Gold Plated CinchYes
• Headphone OutYes
• Headphone Volume ControlYes
• IP controlYes
• RS232Yes
• Sample Rate digital In192 kHz / 24-bit
• USB Audio (front)Yes (rear)
• USB type B input for PC (rear) Sample Rate USB type B InYes up to DSD11.2
• Variable Out (Cinch)1

Network

• App control AMP/CD via Network PlayerYes
• Bluetooth on / off modeYes
• DSD Audio Streamingup to DSD5.6
• Gapless PlaybackYes (FLAC, WAV, DSD)
• Lossless formats: DSD / FLAC HD 192/24 / ALAC 96/24 / WAV 192/24Yes / Yes / Yes / Yes
• Lossy formats MP3 / WMA / AACYes / Yes / Yes
• Remote APP: iDevice / AndroidYes / Yes
• Wi-Fi on / off modeYes
• Wi-Fi / Wired LAN2.4GHz, 5GHz / Yes

Playback

• Program Play (CD / SA-CD)25 / No
• Random PlayYes
• RepeatYes

Specifications

• Channel separationNo
• Channel Separation (SA)No
• D/A ConversionMMM
• DAC ICMMM
• Digital FilterMMM
• Dynamic Range98 dB
• Dynamic Range (SA)109dB
• Frequency response2 Hz - 20 kHz
• Frequency Response (Cust.)2 Hz - 20 kHz
• Headphone ampHDAM SA3
• Low Pass Filter stageHDAM
• MechanismSACDMNo3L
• Noise ShaperMMM
• Output BufferHDAM SA3
• Signal to Noise Ratio104dB
• Signal to Noise Ratio (SA)112dB
• Total Harmonic Distortion0,000015
• Total Harmonic Distortion (SA)0.0008%

Others

• Display: Dimmer / OffYes / Yes
• Marantz Musical MasteringYes
• Marantz Musical Mastering ConversionYes
• Marantz Musical Mastering StreamYes
• Selectable filter: CD / SA-CD / DAC-ModeYes/ No / Yes(PCM only)
• Separated rectifier circuit for analogue and digital circuitryYes
