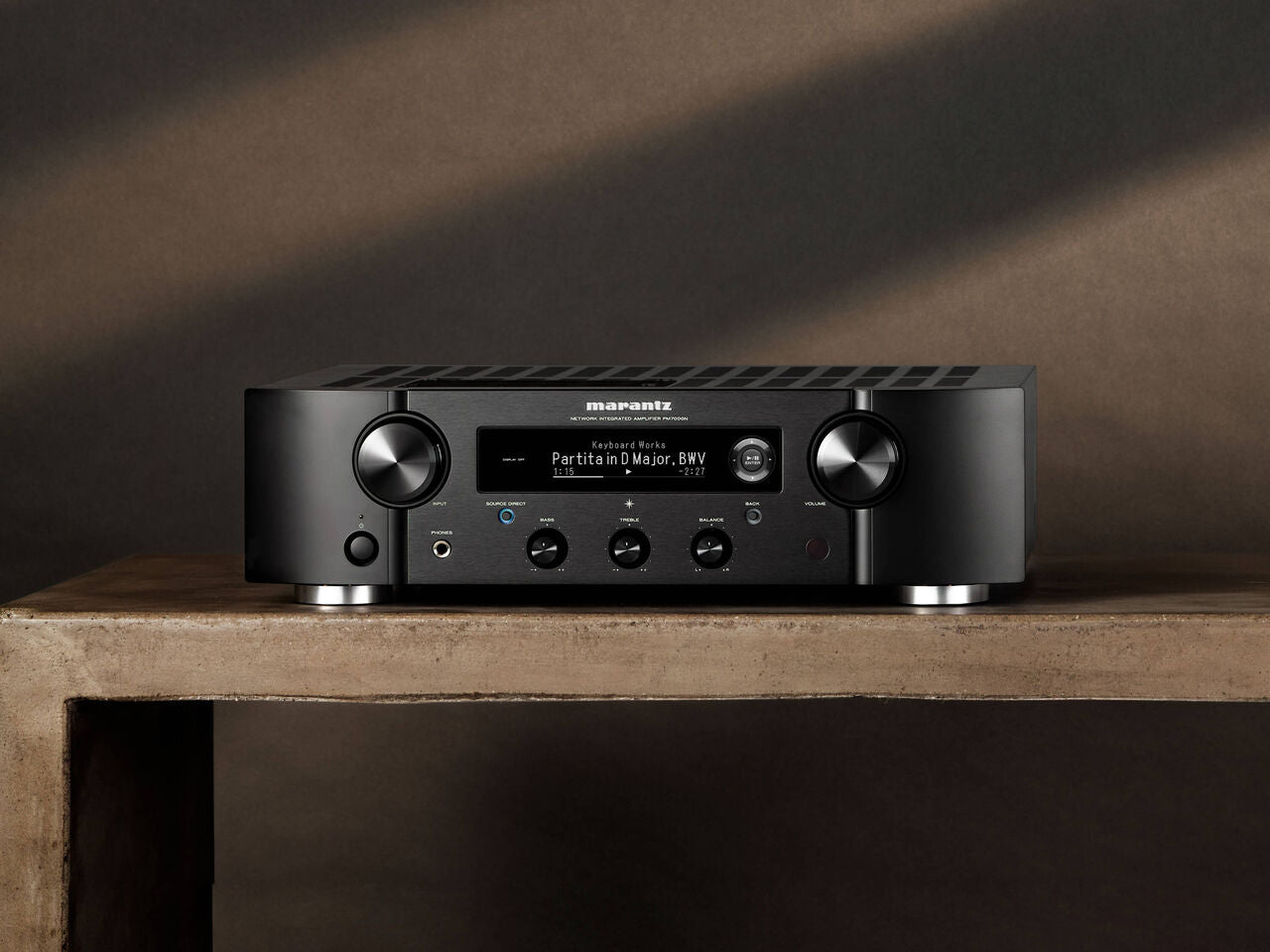

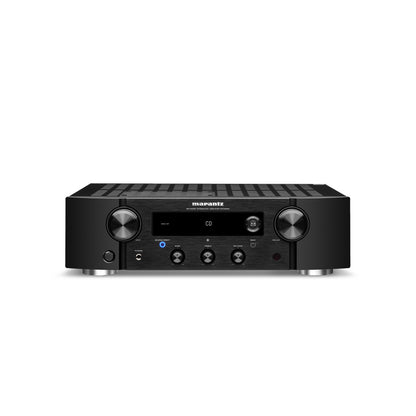

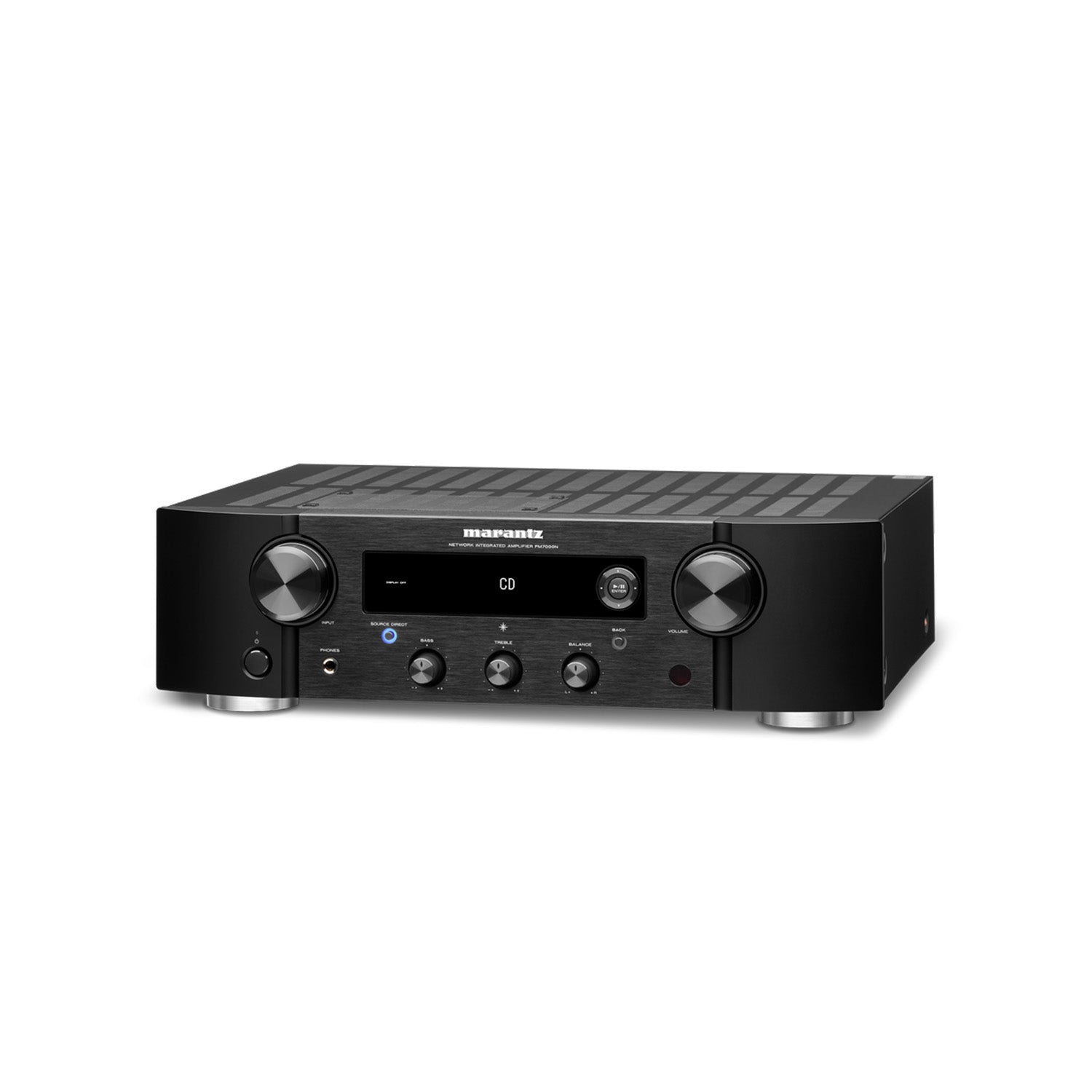

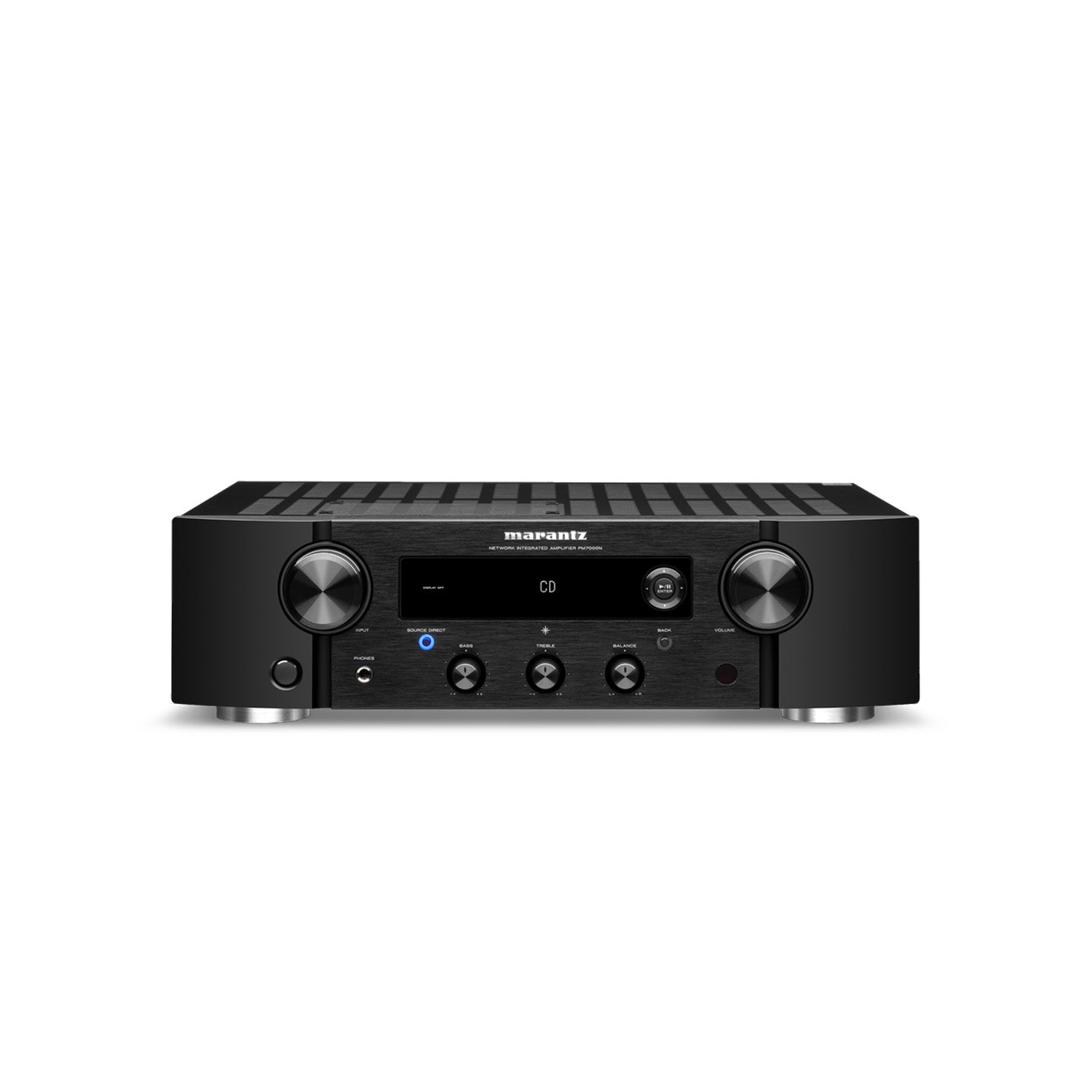

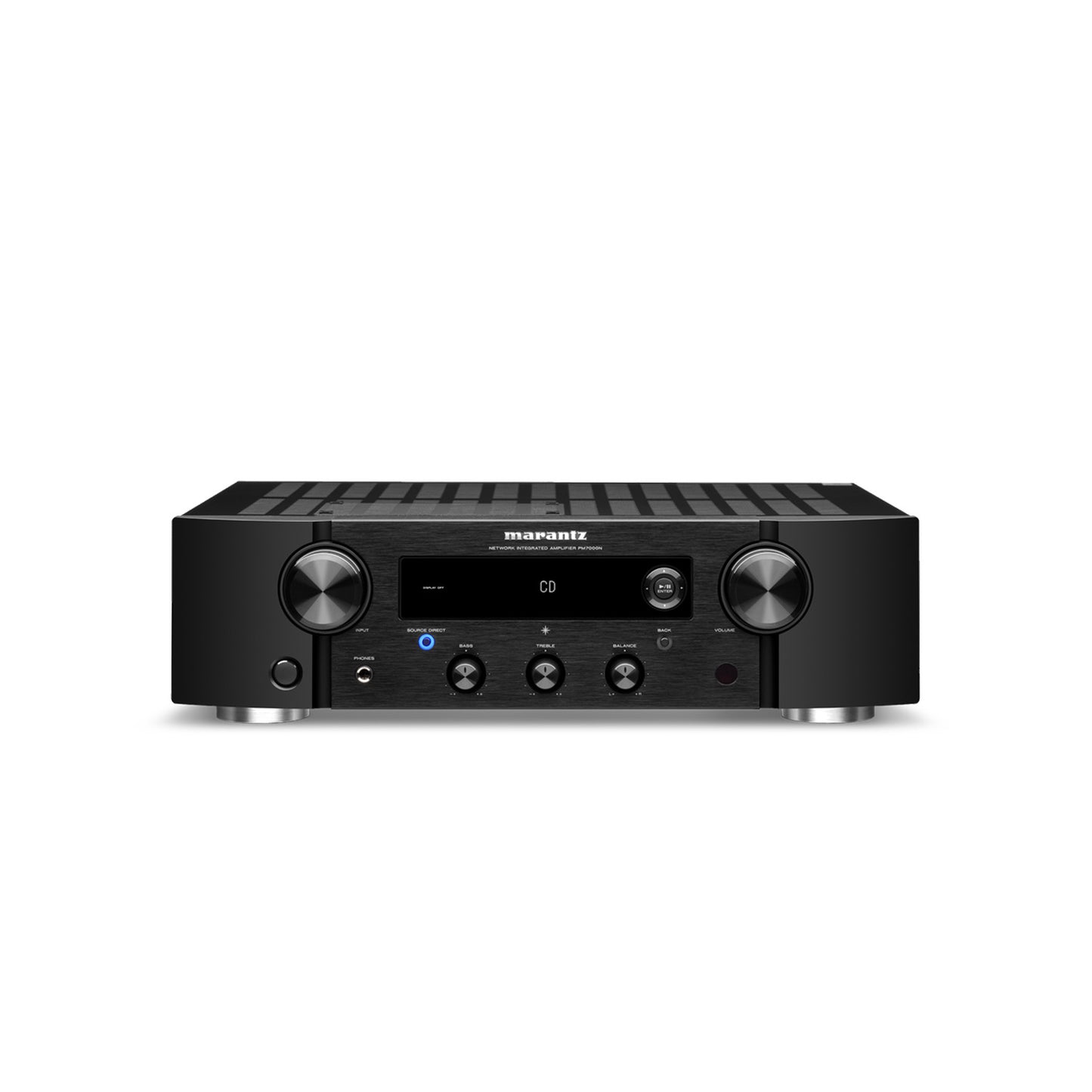

Marantz PM7000N

Marantz PM7000N

Discover PM7000n which was the first Marantz fully discrete, current feedback integrated Hi-Fi amplifier with HEOS Built-in technology. It includes high-grade audio components, current feedback HDAMs, a toroidal transformer and a high-speed instantaneous current power supply. Stream music wirelessly, or enjoy high-resolution digital audio files up to 24 bits and 192 kHz sampling.

Specifications

• Slimline Design
• 2.2 Channels
• 60 Watts Per Channel
• Custom HDAM
• HEOS Built-in
• 3 Year Warranty

Key Features

Features

• Channels2
• Current Feedback TopologyYes
• Phono EQ:OP amp + FET input stage
• HDAM versionHDAM-SA3, SA2
• Power TransformerToroidal
• High Grade Audio ComponentsYes
• Customised ComponentsYes
• Symmetric PCB LayoutYes
• Aluminium extrusion heat sinkYes
• Tone Control: Bass / Treble / BalanceYes / Yes
• Source DirectYes
• Pure Modes3

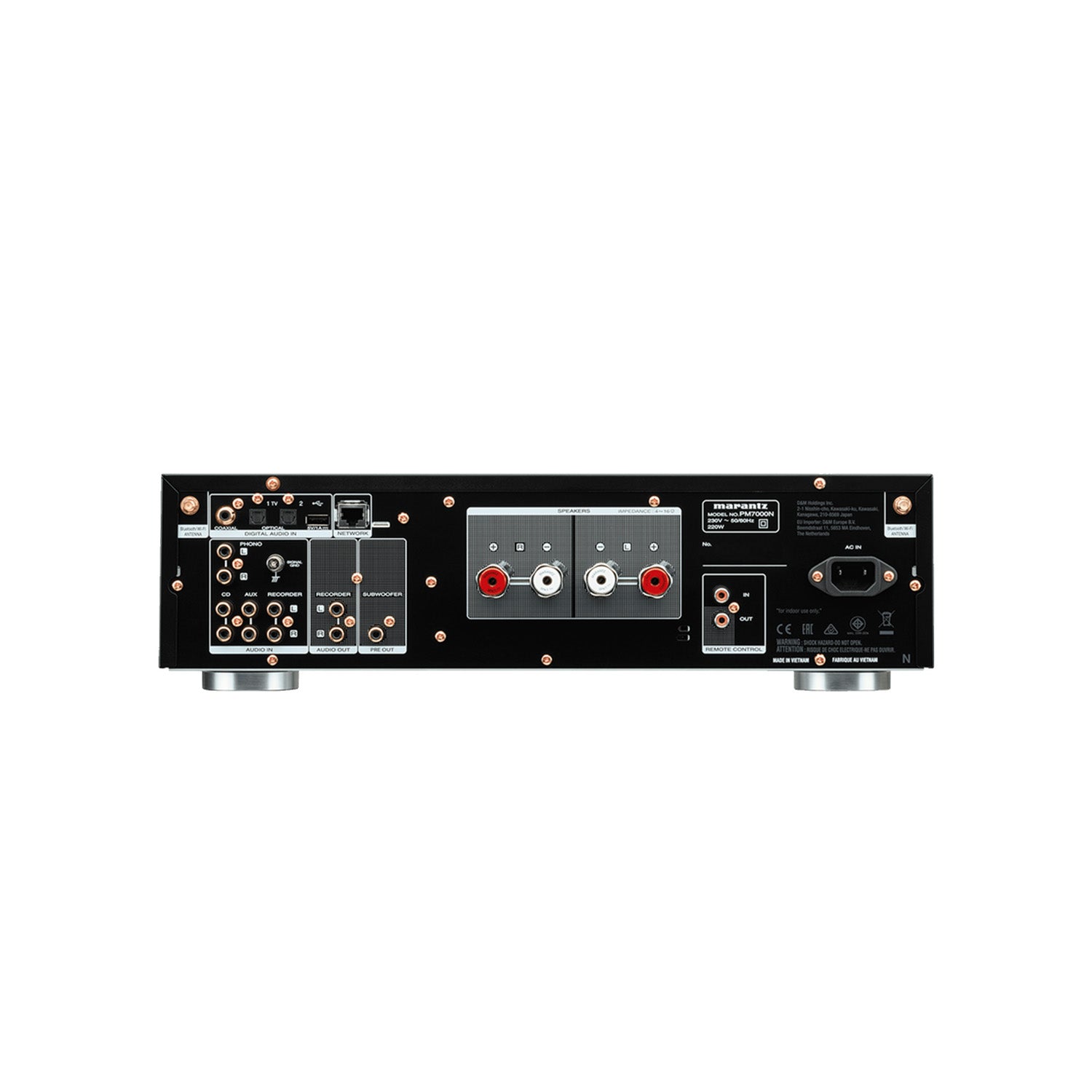

Inputs Outputs

• Audio Inputs4
• Phono Input: MMYes
• Digital In: Optical / Coaxial2 / 1
• USB-A1 (rear)
• Recorder outYes
• Pre-outSubwoofer
• Power Amp Direct INNo
• Gold Plated CinchYes
• Speaker A / BNo
• Speaker TerminalsMarantz SPKT-1+
• Number of terminals1 pair
• Remote Control Bus in / outYes
• Headphone OutYes (Front)

Network

• HEOS Multi-room and Streaming / Network Audio StreamingYes / Yes
• Lossy formats: MP3 / WMA / AACYes / Yes / Yes
• Lossless formats: FLAC / ALAC / WAVYes / Yes / Yes
• Lossless formats: FLAC HD 192/24 / WAV 192/24 / ALAC 192/24Yes / Yes / Yes
• DSD Audio Streamingup to DSD5.6
• Gapless PlaybackYes (FLAC, WAV ,ALAC ,DSD)
• AirPlay 2 Audio StreamingYes
• Internet radioYes (TuneIn)
• Spotify connect / Deezer / TIDAL / Napster / Pandora / SiriusXMYes / Yes / Yes / Yes / Yes / Yes
• Support for voice control: Alexa/Google assistant / SiriYes / Yes / Yes
• Compatible with Remote APP for Smart PhonesHEOS
• Ethernet / Wi-FiYes / Yes (dual antenna/ dual band)
• BluetoothYes

Specifications

• Power Output (8 / 4 Ohm RMS)60 W / 80 W
• Frequency response5 Hz – 100 kHz ±3 dB
• Total Harmonic Distortion0.02%
• Damping Factor100 and over
• Input Sensitivity: MM2.0 mV / 47 kΩ/kohms
• Signal to Noise Ratio: MM87 dB (5 mV input, 1 W output)
• Input Sensitivity: High level220 mV/18 kΩ
• Signal to Noise Ratio: High level115 dB (2 V input, rated output)

General

• Available ColorsSG / BK
• Metal Front PanelYes
• Power Consumption220W
• Network Standby Consumption in W4.7
• Standby Consumption0.4W
• Detachable Power CableYes
• Remote ControlYes
• System Remote FunctionYes
• Maximum Dimensions (W x D x H)440 x 125 x 379 mm *excluding antennas
• Weight10.8kg

Others

• FL Display3 line OLED
• GUI LanguagesEnglish / French / Spanish
• Setup AssistantYes
• Firmware Update by Network / USBYes
• Variable Cross OverYes (40/60/80/100/120Hz)
• Shield Case for Digital CircuitYes
• IR Learning for TV remoteYes
• Auto Power On / OffOptical In 1 / Optical In 2 / Coaxial In (Default: OFF)
• Sleep / TimerYes
