Marantz

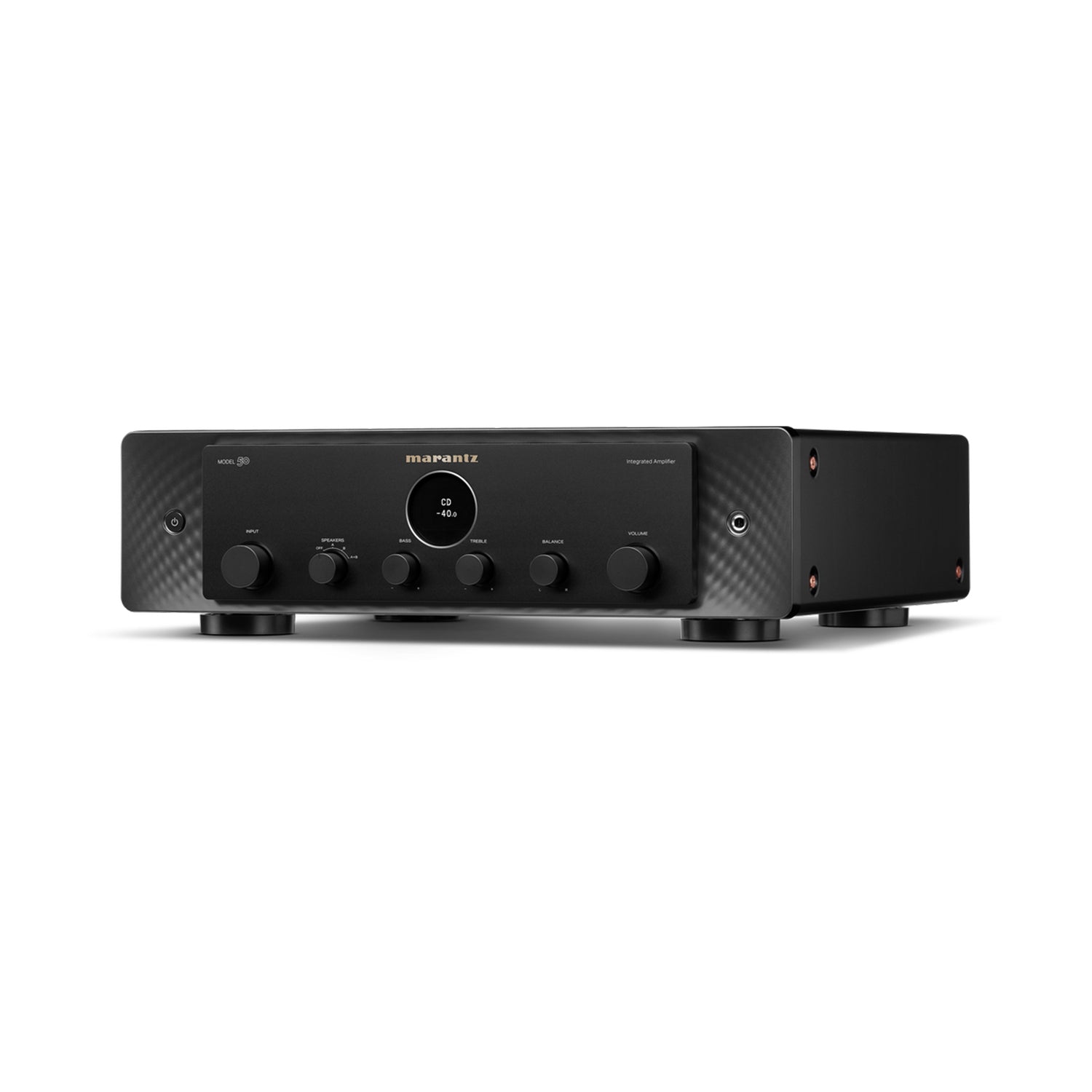

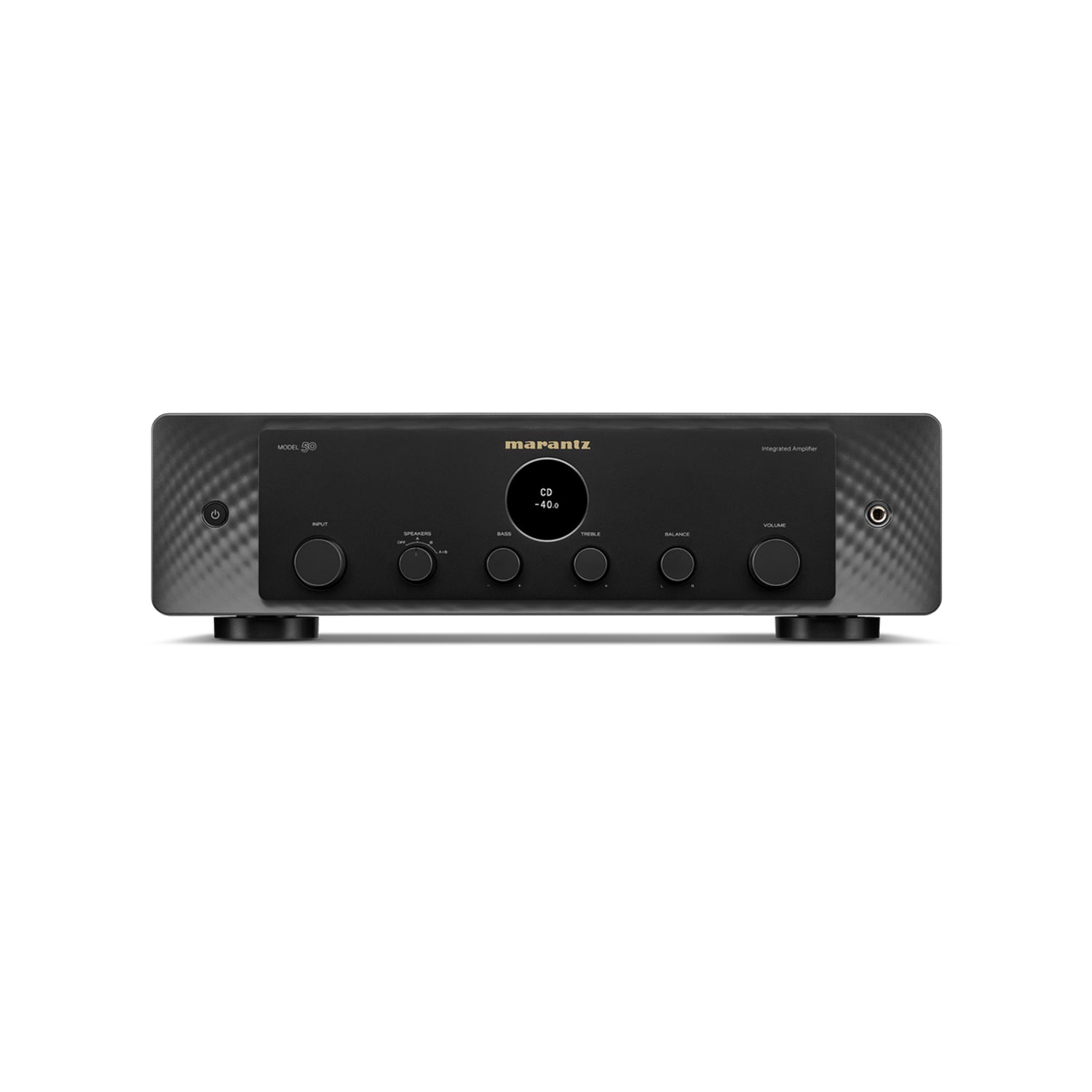

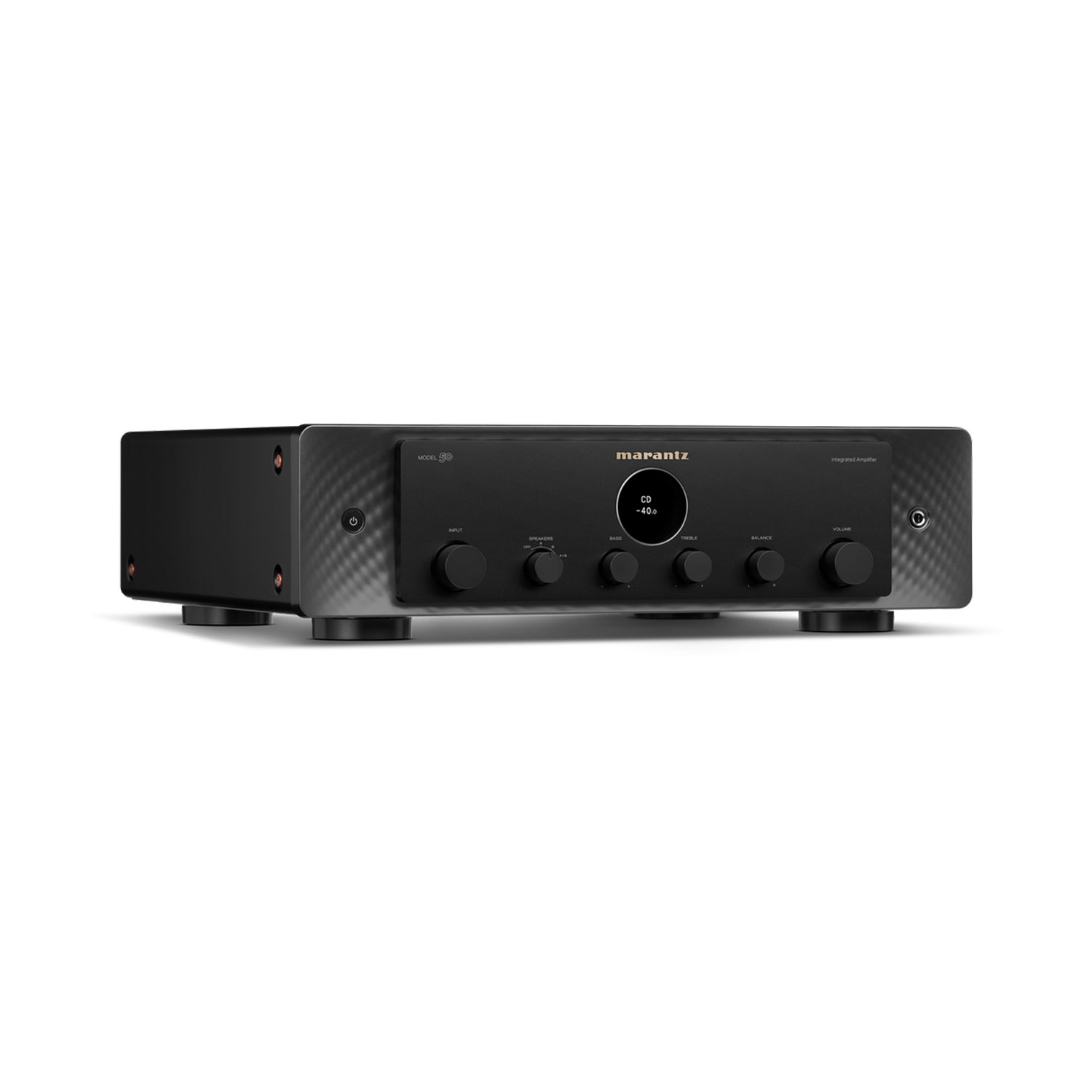

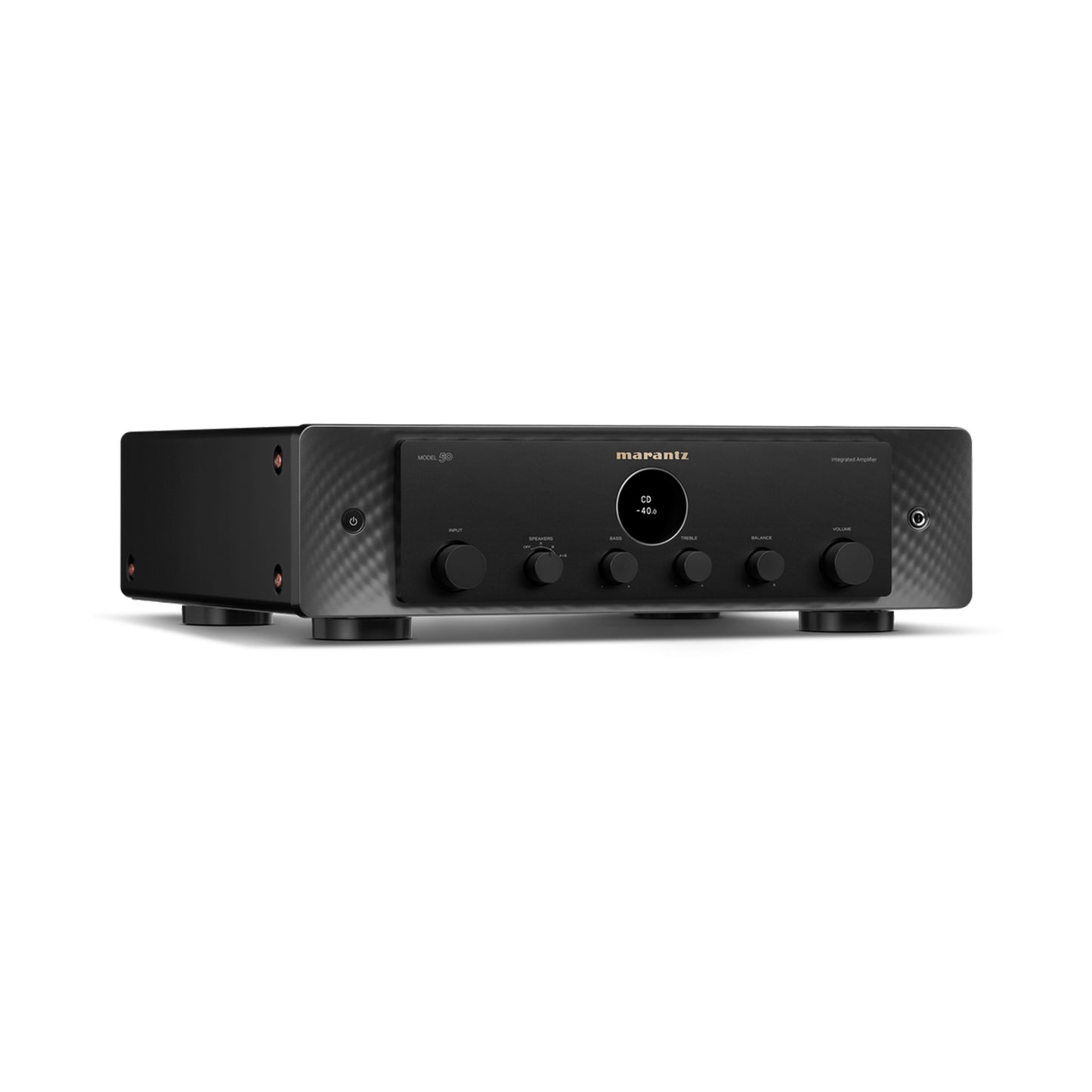

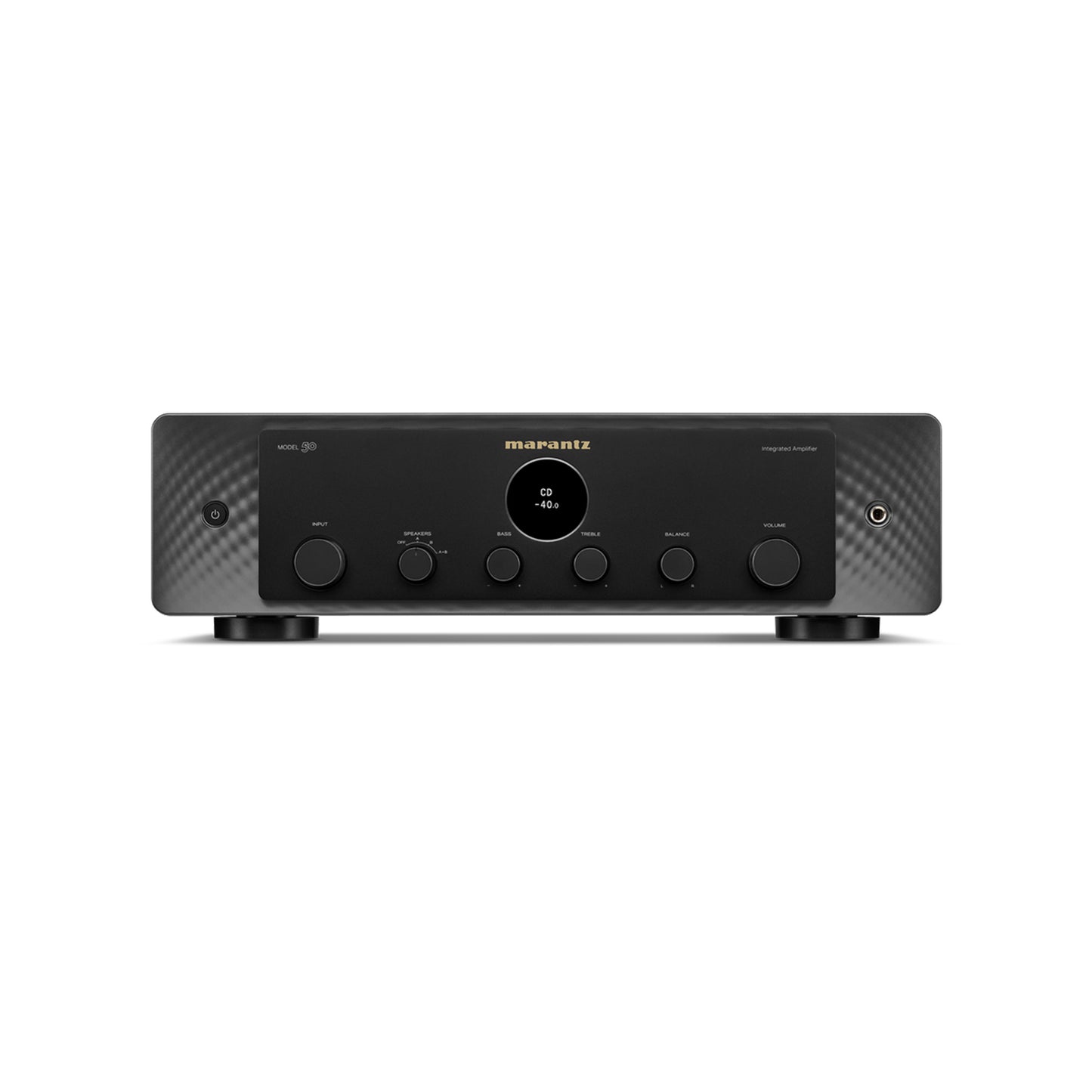

Marantz Integrated amp Model50

Marantz Integrated amp Model50

$3,200.00 AUD
$3,200.00 AUD
Sale Sold out
Shipping calculated at checkout.
Color

MODEL 50 is the ideal integrated amplifier. With 70 watts per channel of unique Marantz current- feedback power and HDAM SA-3 circuitry, this amplifier drives loudspeakers with total control.

  • Artisinal Design
  • 2.2 Channels
  • 70 Watts Per Channel
  • Custom HDAM
  • 5 Year Warranty

An Evolution 70 Years
in the Making

Warm, rich, and spacious sound. Elegant to behold. Marantz 50 series strikes a perfect balance between timeless and modern.

Exquisite Style

We designed MODEL 50 to be thoroughly modern, yet timeless. Hallmark aesthetic cues like symmetry, warmth, and tactile satisfaction push the boundaries of audio equipment design inspired by icons of our past.

Powerful Yet Precise

With a precisely engineered Class A/B amplifier, MODEL 50 will drive your loudspeakers with authority yet reveal details you never knew existed.

Sound Master Tuned

The Marantz Sound Master meticulously tuned MODEL 50 for amazing performance with careful parts selection to create the Most Musical Sound in your home.

Moving Magnet Phono

The built-in MM phono stage works with your turntable to amplify the nuance and tone in your records. Using a new circuit without distortion-inducing coupling capacitors.

Stereo Preamp Out

MODEL 50’s stereo preamp outputs add valuable flexibility to your audio system setup. Connect a subwoofer, add channels to your home theater, or multiply listening zones—the possibilities are endless.

Details & Specifications

Features

Channels

  • 2

Current Feedback Topology

  • Yes

Phono EQ

  • Standard: -
  • Marantz Musical: Yes
  • Marantz Musical Premium: -

Digital In

  • USB-B: -
  • Optical: -
  • Coaxial: -
  • USB-A: -

HDAM Version

  • SA3, SA2

Power Transformer

  • Toroidal: Yes
  • El: -

High Grade Audio Components

  • Yes

Customised Components

  • Yes

Symmetric PCB Layout

  • Yes

Aluminium Extrusion Heat Sink

  • Yes

Balance / Bass / Treble / Loudness

  • Balance: Yes
  • Bass: Yes
  • Treble: Yes
  • Loudness: -

Others

Linear Drive Power Supply

  • Yes

Linear Volume Control

  • Yes

Schottky Diodes

  • Yes

Input Buffer Amp (All Inputs / CD Only)

  • All Inputs: -
  • CD Only: -

Solid Heat Sinks

  • Yes

System Block Shielding

  • Copper: -
  • Metal: -
  • None: none

Bottom Plate

  • Triple

Low Noise OLED Display

  • Yes

Source Direct

  • Yes

Power Amp Direct

  • Yes

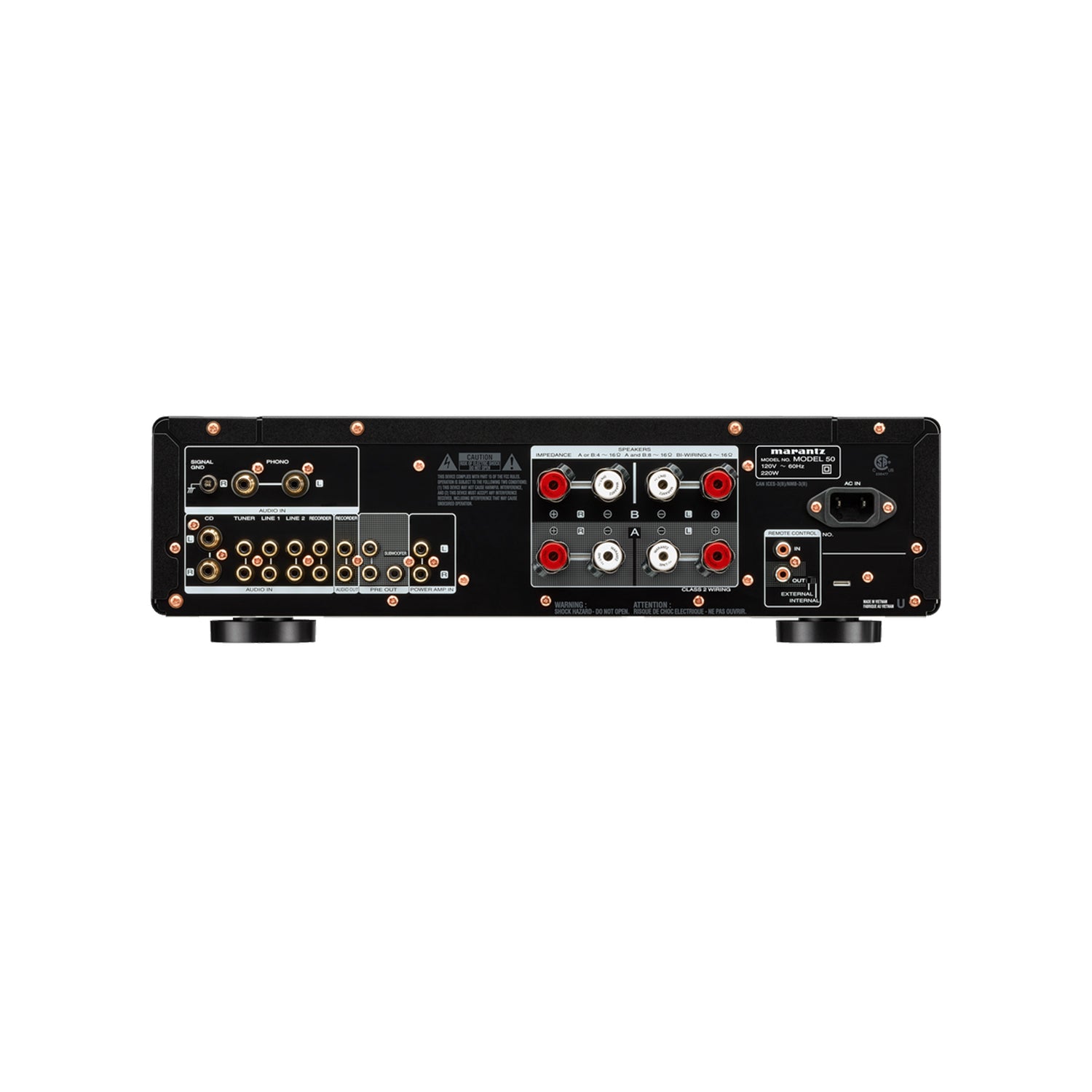

Inputs Outputs

Audio Inputs

  • 6

Digital In

  • USB-B: -
  • Optical: -
  • Coaxial: -
  • USB-A: -

Phono Input

  • MM: Yes
  • MC: -

Audio Outputs

  • 1

Balanced In / Out

  • In: -
  • Out: -

Pre-out / Main-in

  • Pre-out: Yes + subwoofer
  • Main-in: -

Power Amp Direct IN

  • Yes

Gold Plated Cinch

  • Yes

Speaker A / B

  • Yes

Speaker Terminals

  • Marantz SPKT-1+
  • Number of Terminals: 4

D-Bus

  • Yes

Headphone Out

  • Yes

Specifications

Power Output (8 / 4 Ohm RMS)

  • 70 W / 100 W

Frequency Response

  • 5 Hz – 100 kHz

Total Harmonic Distortion

  • 0.02 %

Damping Factor

  • 100

Input Sensitivity: MM

  • 1.4 mV / 47 kΩ

Signal to Noise Ratio: MM

  • 87 dB

Input Sensitivity: High Level

  • 185 mV / 16 kΩ

Signal to Noise Ratio: High Level

  • 116 dB (2 V input)

Input Sensitivity: Power Amp Direct IN

  • 1.5 V / 15 kΩ

Signal to Noise Ratio: Power Amp Direct IN

  • 125 dB

Treble Control

  • ± 10 dB at 15 kHz

Bass Control

  • ± 10 dB at 50 Hz

General

Available Colors

  • Gold: -
  • Silver: -
  • Black: Yes
  • Silver-Gold: Yes

Metal Front Panel

  • Yes

Power Consumption

  • 220 W

Standby Consumption

  • 0.3 W

Auto Power Off

  • Yes

Detachable Power Cable

  • Yes

Remote Control

  • RC003PMND

System Remote Function

  • Yes

Maximum Dimensions (W x D x H)

  • 442 x 431 x 130 mm

Weight

  • 14.2 kg

Carton Maximum Dimensions (W x D x H)

  • 527 x 517 x 255 mm

Carton Weight (including product)

  • 17.5 kg
