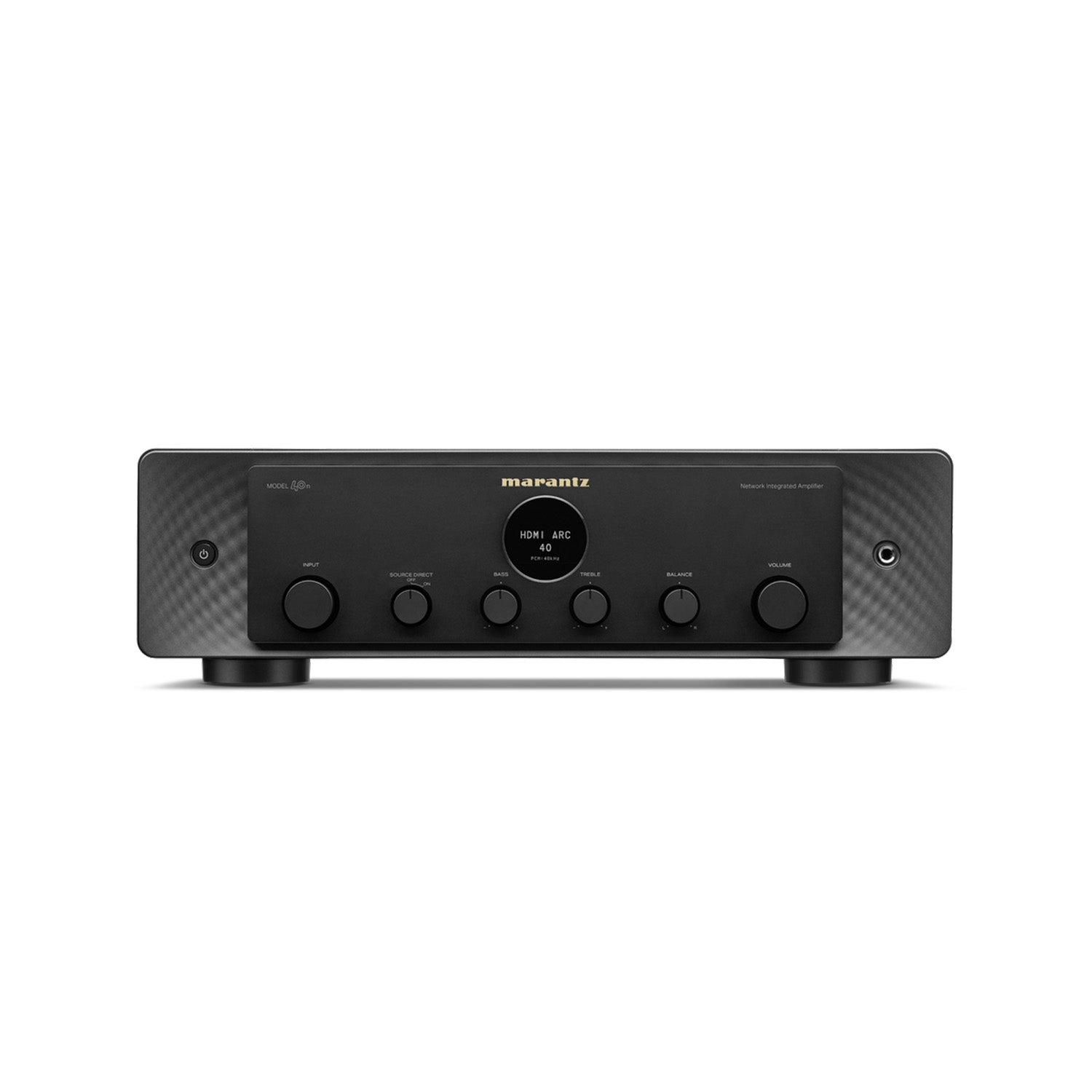

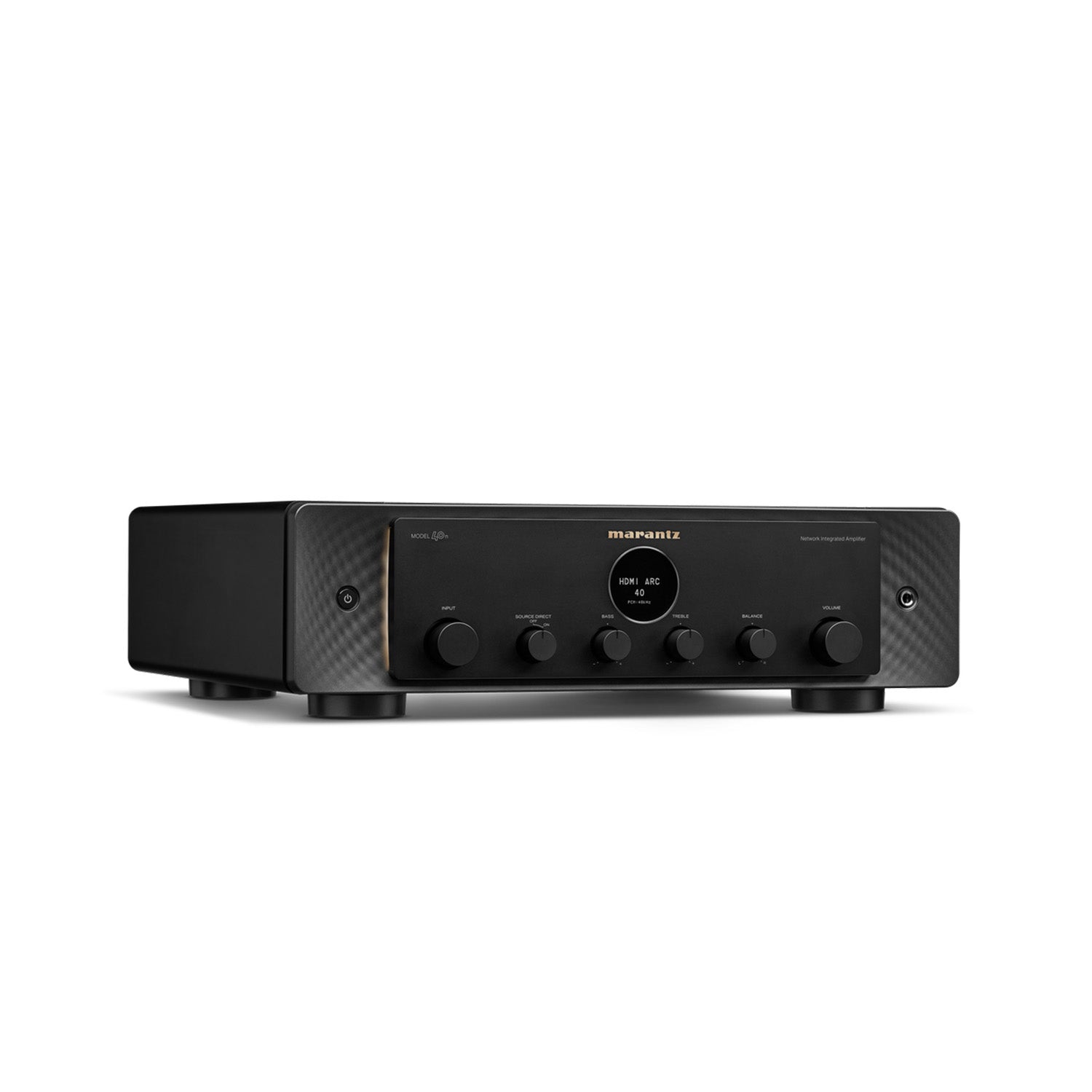

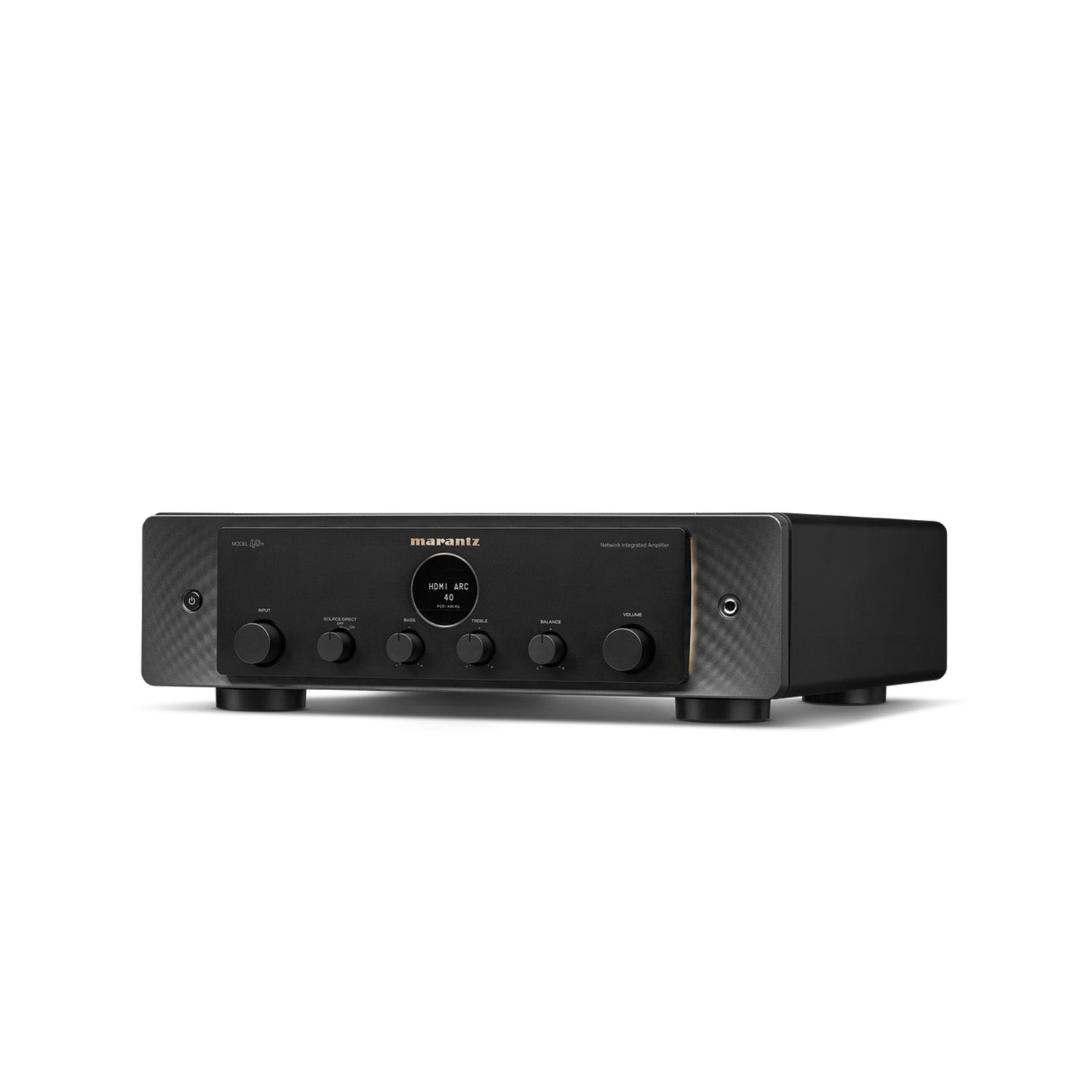

Marantz Model 40n

Marantz Model 40n

Marantz has reimagined the integrated amplifier for the digital age while preserving a luxurious analog feel and sound.

Specifications

• Artisinal Design
• 2.2 Channels
• 70 Watts Per Channel
• Custom HDAM
• 1 HDMI Input plus ARC
• 5 Year Warranty

Key Features

Output Power

• Rated Output Power70W + 70W (8ohm)
  100W + 100W (4ohm)

Features

• Power Amplifier CircuitHDAM-SA3
• Power TransformerDouble Shielded Toroidal
• VolumeElectric
• Bass / Treble / Mid / Balance Controlyes / yes / - / yes
• Source Directyes
• Frequency Response5Hz - 50kHz
• Total Harmonic Distortion0.02% (20Hz - 20kHz, 8Ω)
• Dumping Factor100
• Input Sensitivity: Phono input2 mV / 47 kohm
• Input Sensitivity: CD/Line/Recorder220 mV / 20 kohm
• Input Sensitivity: Power Amplifier input1.6 V / 15 kohm
• SN RatioPHONO (MM): 87dBCD: 106dB

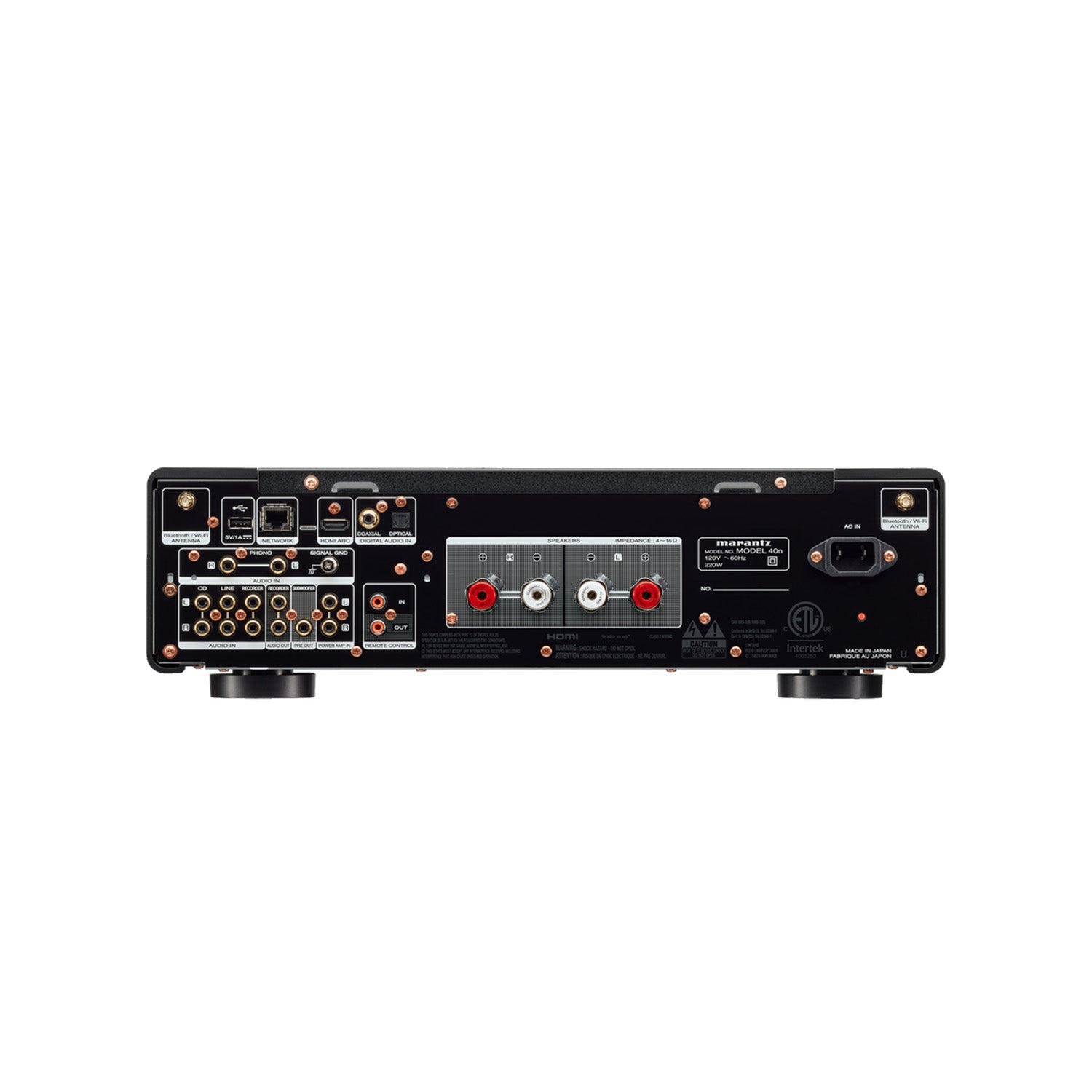

Terminal

• Phono Inputyes (MM)
  Marantz Musical Phono EQ
• Ext. Pre Input (Power Amp Direct)yes
• Preoutno
• Analog Input (include Phono) / REC Out (RCA)4 (PHONO, CD, LINE,RECORDER) / 1 (RECORDER)
• Optical input1
• Coaxial input1
• HDMI1 / 0 (ARC) PCM only
• USB A1 (Rear), Mass Storage Class5V/1A
• Speaker TerminalSPKT-1+
• Remote Control Bus Terminalyes (RC-5 In / Out)
• Subwoofer Pre-out Low Pass FilterSelectable
  40 Hz / 60 Hz / 80 Hz /100 Hz / 120 Hz

Control

• AppHEOS App
• Remote ControllerSystem Remote
  Features (Amp and CD Player Control)

Cosmetic

• Panel ColorSG / BK
• Front Center PanelAluminum
• Top CoverSteel
• Edge Lightingyes (Dimmer)
• Volume KnobAluminum
• Input SelectorAluminum
• Bass/Treble/Balance/ REC Out Sel knobsAluminum
• Power buttonAluminum
• Chassis MaterialSECC
• Bottom LayerThicker double layer

Others

• Weight in lbs36 lbs 13 Oz
• Carton Weight (incl. product) in lbs43 lbs 3 Oz
• Power Consumption220W, 0.3W (Standby)
• AC Inletyes
• Quick Start GuideIncluded
• Packaging Dimensions (W x H x D in inches)21" x 10" x 20.6"
• Product Dimensions (W x H x D in inches)17.4" x 5.1" x 17"
