Marantz
Marantz Model30 Integrated Amplifier
Marantz Model30 Integrated Amplifier
Regular price
$5,200.00 AUD
Regular price
Sale price
$5,200.00 AUD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Marantz Model 30
Get the most musical sound possible from this Master-tuned integrated amplifier. Its custom-designed HDAM delivers exquisite detail and unforgettable musicality from any style of music.
Specifications
- Artisinal Design
- 2.2 Channels
- 100 Watts Per Channel
- Custom HDAM
- 3 Year Warranty
Key Features
Output Power
-
Rated Output Power100W + 100W (8ohm)
200W + 200W (4ohm) - JEITA Power outputNo
Features
-
Amplifier CircuitSwitching Amp
(Hypex NC500/SMPS600
by single) - Power TransToroidal w/case
- VolumeElectric
- LoudnessNo
- Bass / Treble / Mid / Balance Controlyes / yes / No / yes
- REC Out SelectNo
- Source Directyes
- Pure DirectNo
- (Marantz) Purest ModeNo
- Isolator (for USB-B input)No
- Jitter reducerNo
- Dual Clock: 44.1 / 48 kHzNo
- Digital FilterNo
- Analog Amp ModeNo
- Wide Range5Hz - 50kHz
-
Total Harmonic Distortion0.005%
(1kHz, 8Ω) - Damping Factor500
-
Input Sensitivity: Phono inputMM: 2.3 mV / 39 kohm
MC: 250 - Input Sensitivity: CD/Line/Recorder220 mV / 13 kohm
- Input Sensitivity: Power Amplifier input1.1 V / 13 kohm
-
SN RatioPHONO (MM): 88dB
PHONO (MC): 75dB
CD: 107dB

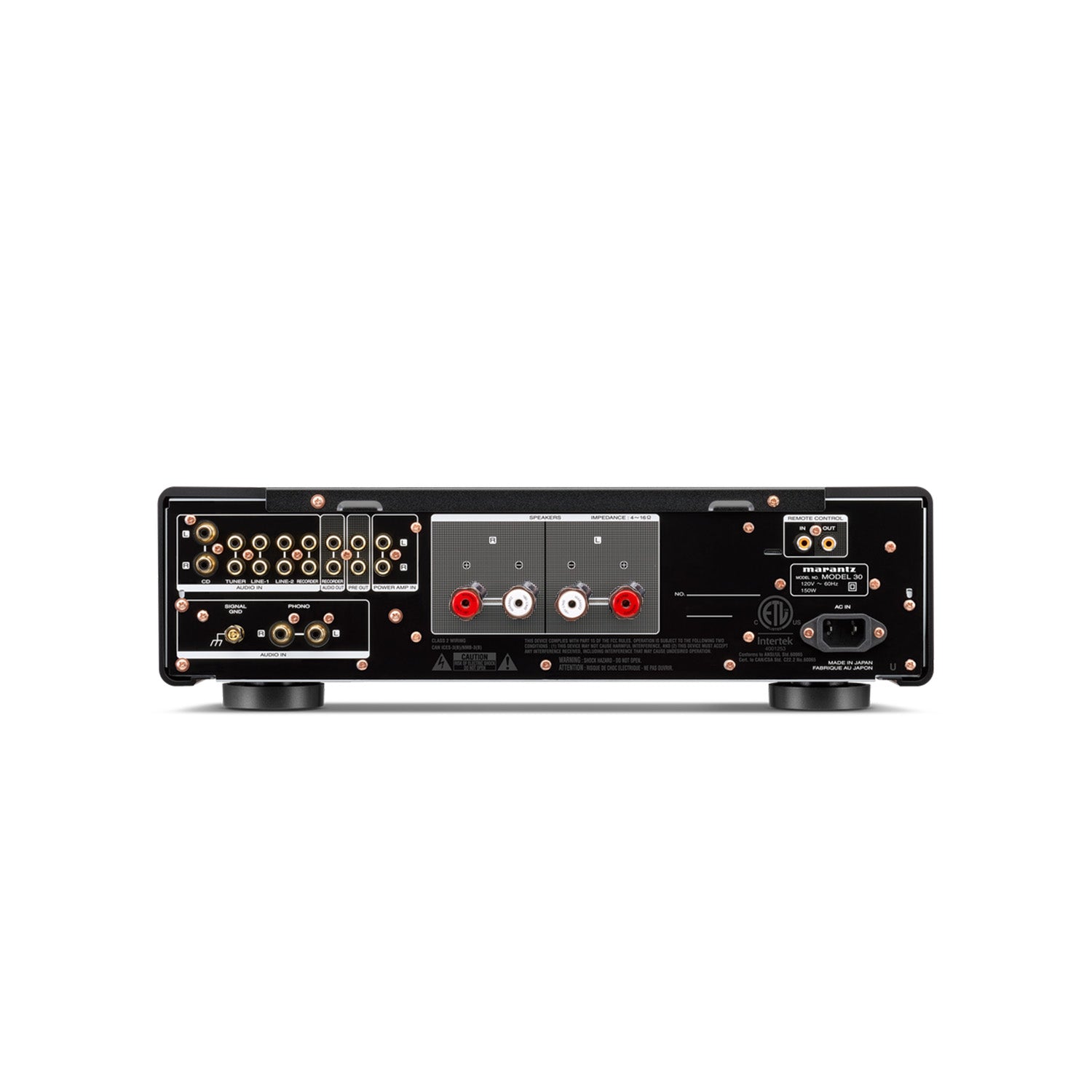

Terminal
- Phono Inputyes (MM/MC)
- Ext. Pre Input (Power Amp Direct)yes
- Preoutyes
-
Audio (In/Out) Terminals *except Power Amp Direct In(or Ext-Pre) and Pre-out6/1
(PHONO / MM&MC / CD / TUNER / LINE 1 / LINE 2 / RECORDER)
* [PHONO] and [CD] inputs = high grade terminals. - Balanced XLR inputNo
- Rec-Out SelectorNo
- Optical inputNo
- Coaxial inputNo
- USB ANo
- USB BNo
- HDMINo
- DACNo
- 2 sets of Spk TerminalNo
-
Speaker TerminalMarantz Original
SPKT-100+ - Remote Control Bus Terminalyes (Cinch)
- NFCNo
- EthernetNo
Network
- EngineNo
- Computer music file streamingNo
- Gapless Playback Music ServerUSB ANo
- Internet radioNo
- AirPlay 2No
- GoogleCastNo
- Album art browsingNo
- Jpeg Picture PlaybackNo
- Cloud Music ServiceNo
- WPS Wi-Fi Protected SetupNo
- Wi-Fi SharingNo
- WMMNo
- OFF modeNo
- OFF modeNo
- Multi-PoimtNo
UI
- Displayyes (Porthole, OLED)
Control
- App Control via Network Playeryes
-
System Remote Controlleryes
(New system remote controller to control SACD 30 and MODEL 30) - RS232CNo
- Flasher InputNo
- Trigger 12VNo
- TV Auto-play (Opt/Coax digital-in sensor)No
Cosmetic
- Panel ColorSG / BK
- Front Center PanelAluminum
- Back-shellNo
- Side coverAluminum
- Top CoverSteel
- Edge Lightingyes (Dimmer)
- Volume KnobAluminum
- Input SelectorAluminum
- Bass/Treble/Balance/ REC Out Sel knobsREC Out-->PHONO (Aluminum)
- Speaker A/B buttonNo
- Power buttonAluminum
- Other knob/button (LOUDNESS, SOURCE DIRECT etc)No
- Side screwCopper plated
Others
- Unit (W x H x D mm)443 x 130 x 432
- Packaging Dimensions (W x H x D mm)534 x 255 x 522
- Net weight14.8kg
- Packaging gross weight17.6kg
- Power Consumption130W
- at Standby0.2W
- at Network Control On (all of Bluetooth, Ethernet, Wi-Fi, USB)No
- AC Inletyes
- AC OutletNo
- Owner's ManualWeb Manual
- Quick Start GuidePaper
- Chassis MaterialSECC
- Chassis LayerTriple
- FootNew
