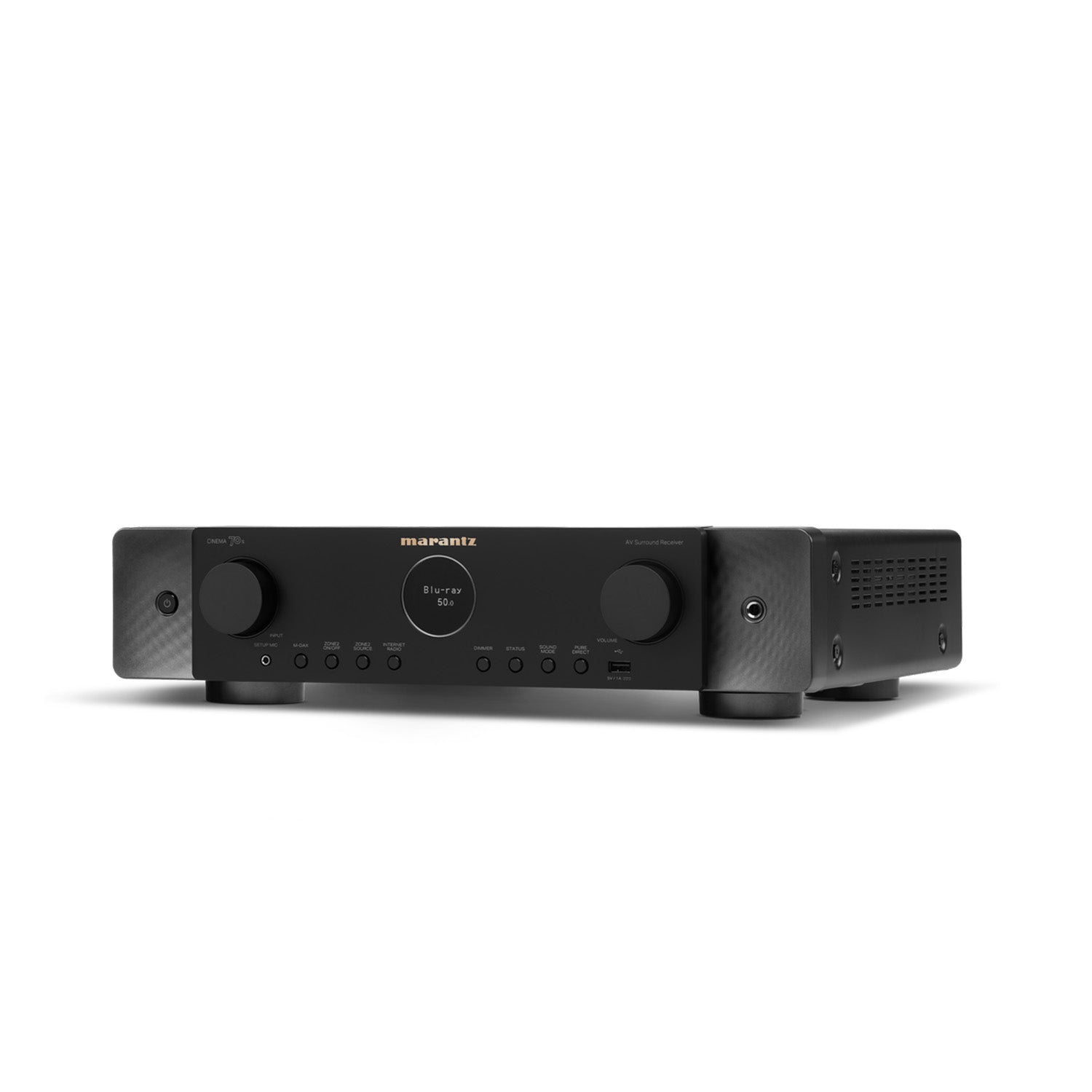

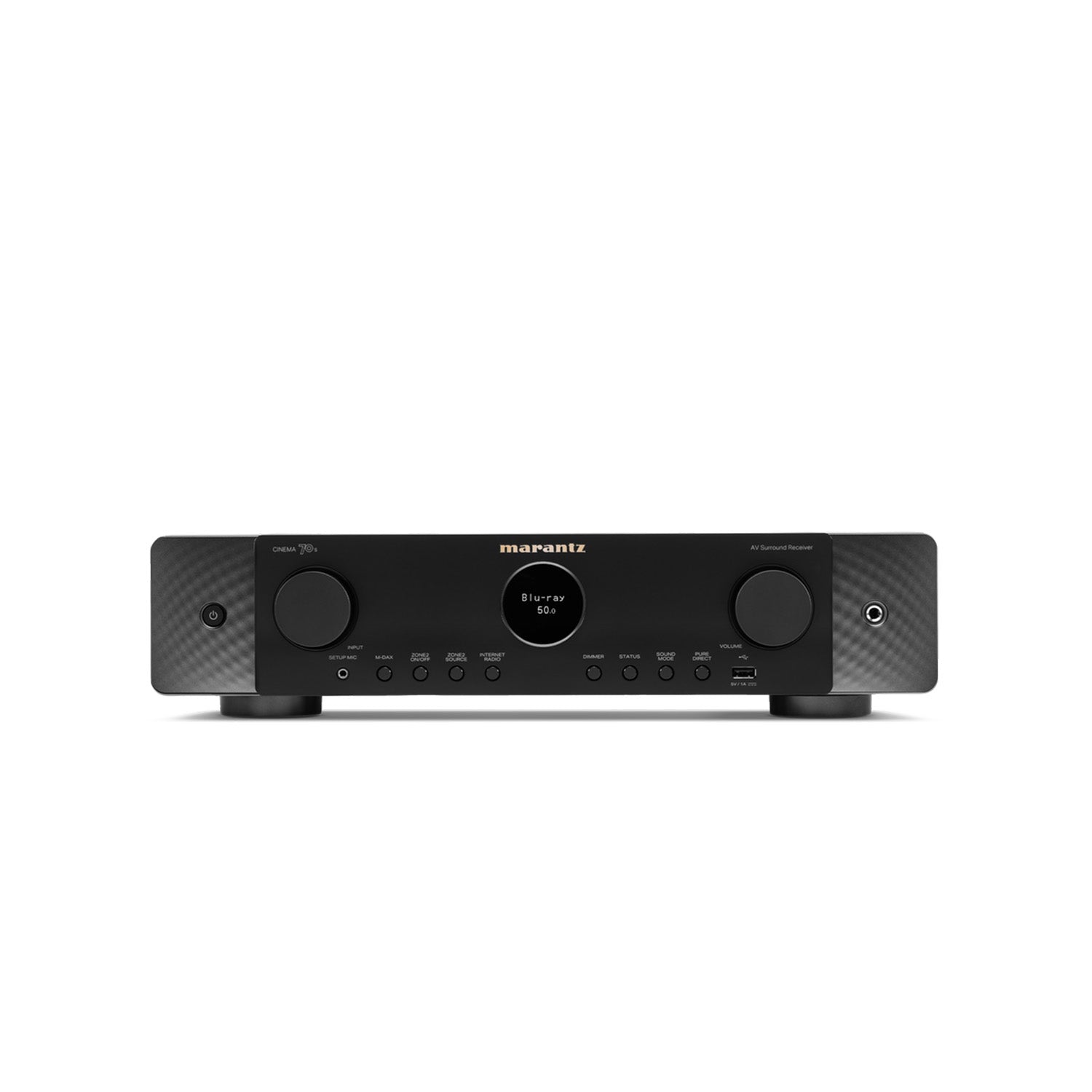

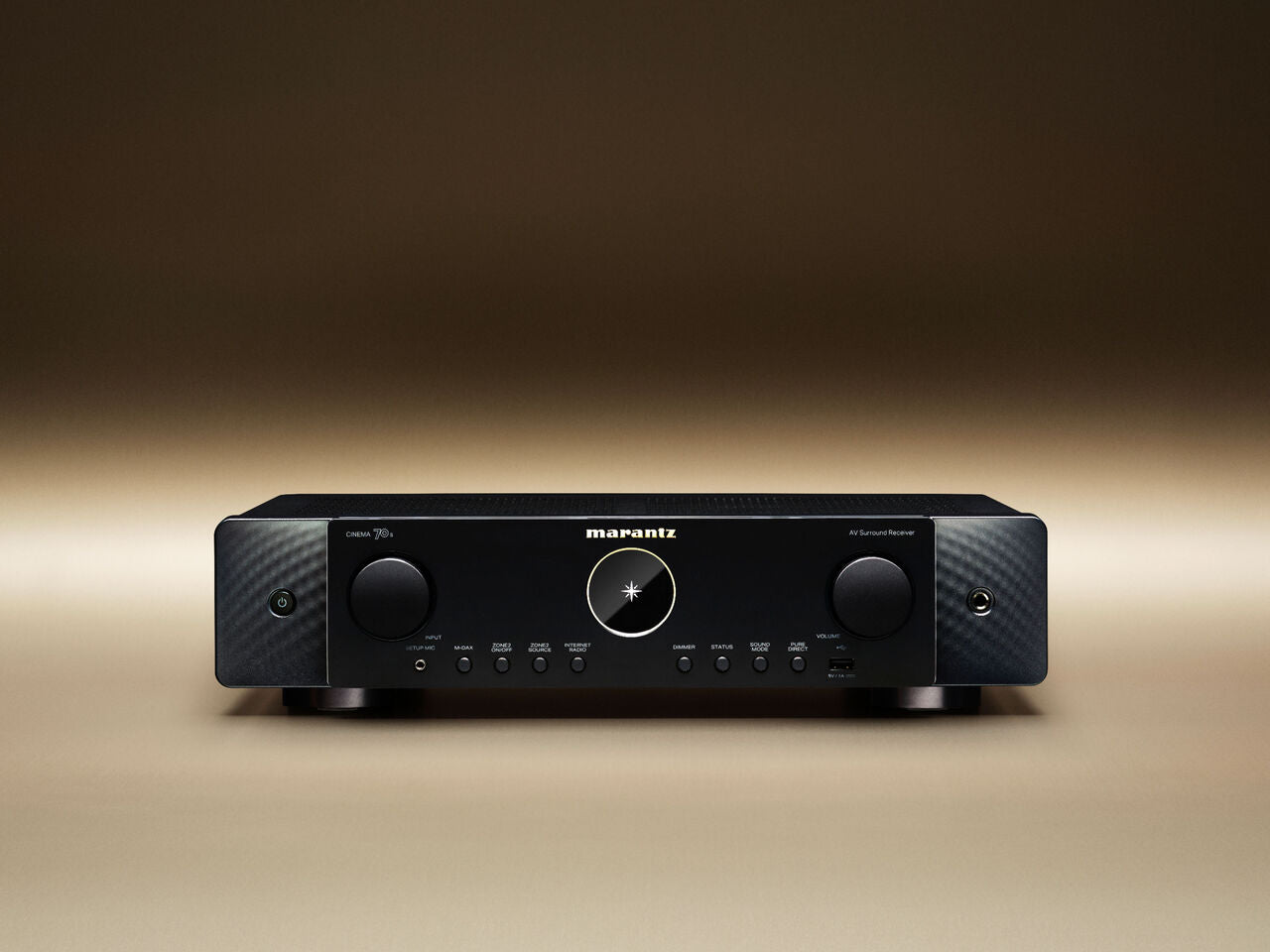

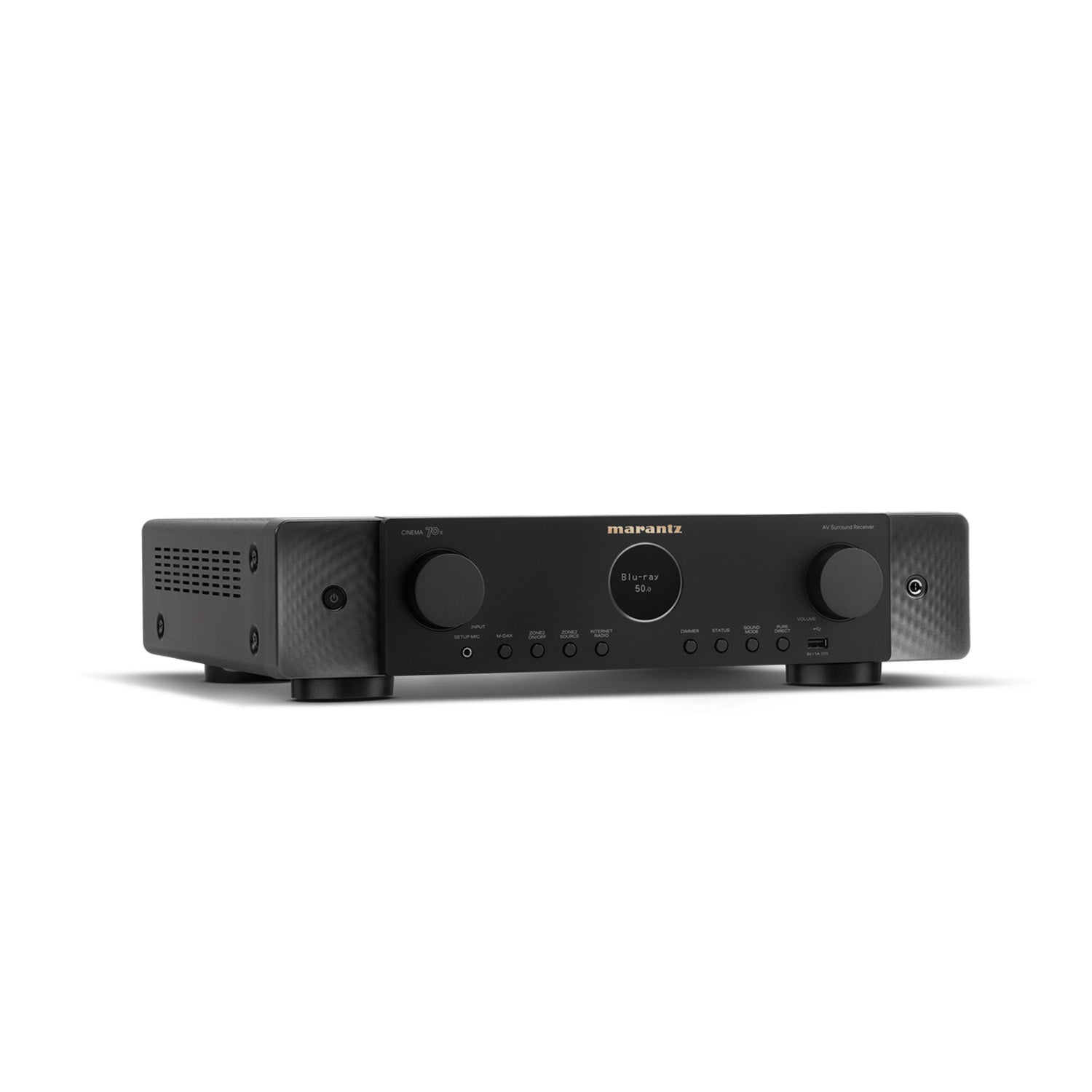

Marantz Cinema70s

Marantz Cinema70s

Slimline 7.2 channel 50-watts-per-channel amplification, Dolby Atmos, DTS:X and 8K Ultra HD, and HEOS streaming built-in. CINEMA 70s appears discreet yet remains a highly capable AV receiver.

Specifications

• Slimline Design
• 7.2 Channels
• 50 Watts per Channel
• 6 HDMI Inputs plus eARC
• 8K & Dolby Atmos
• HEOS Built-in
• 5 Year Warranty

Key Features

Power Amplifier

• Number of Powered Channels7
• Power Output (8 ohm, 20 Hz - 20 kHz, 0.08% 2ch Drive)50 W
• Power Output (8 ohm, 20 Hz - 20 kHz, 0.05% 2ch Drive)-
• Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive)70 W
• Power Output (6 ohm, 1 kHz, 10% 1ch Drive)100 W
• 70% GuaranteeYes
• Discrete Power AmplifierYes
• Amplifier TopologyClass A/B
• Current Feedback TopologyNo
• Bi-Amp Driveassignable

Multichannel Surround Technologies

• DTSDTS HD Master, DTS:X, DTS Neural:X, DTS Virtual:X
• DolbyDolby TrueHD, Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Atmos Music, Dolby Surround
• Other
• Max Number of Processing (Preamp) Channels7.1

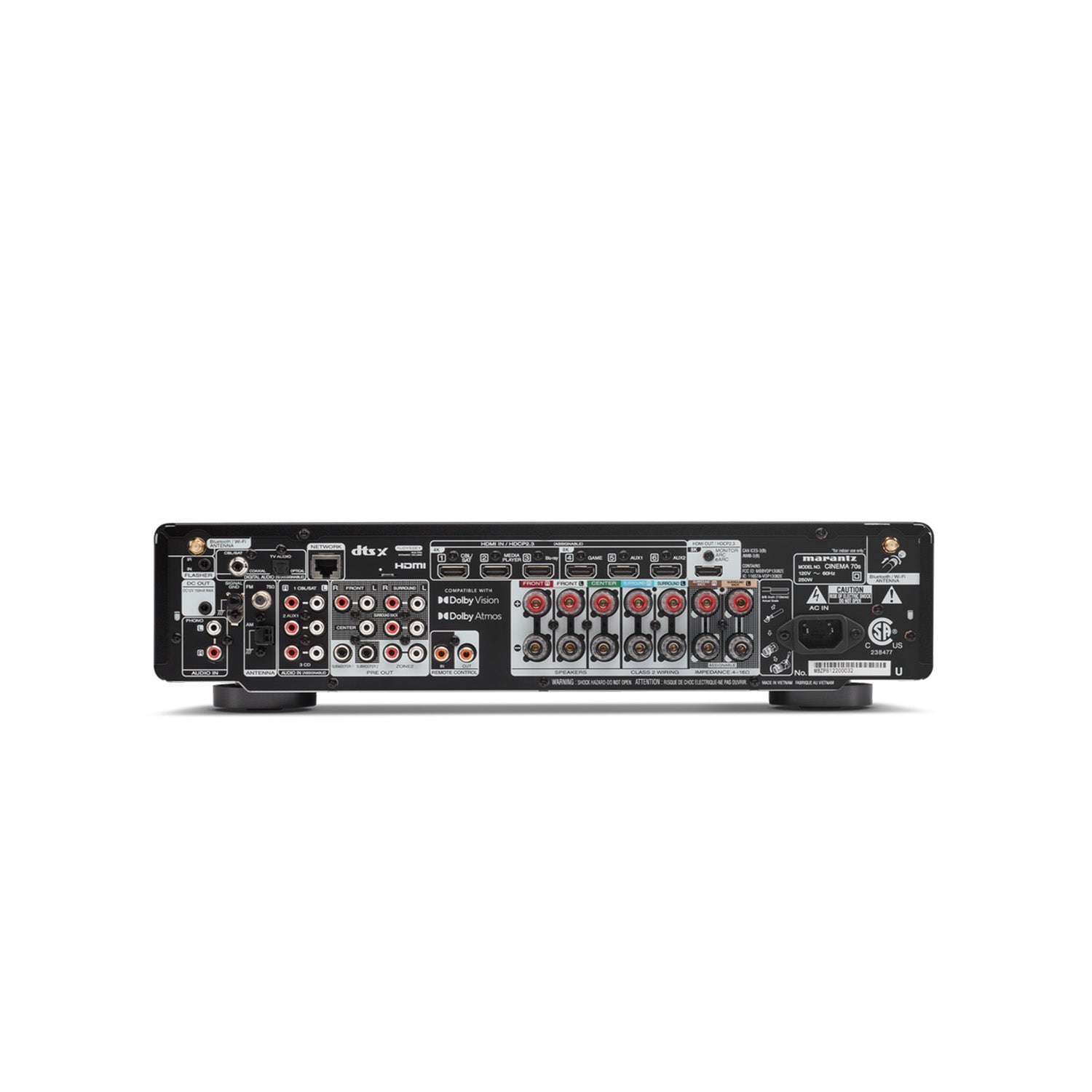

Inputs Outputs

• Composite In / Out0 / 0
• Component In / Out0 / 0
• HDMI In / Out6 / 1
• Multi-Room Video Out via HDMINo
• Analog In / Fixed Level Out3 in / 0 out
• Phono (MM) InYes
• Digital In: Optical / Coaxial1 / 1
• Multi-Room Out: analog / digital1 / 0
• Multichannel Preamp Out7.2
• Subwoofer Out2
• 7.1 multichannel inputNo
• Number of Speaker Terminals7
• Speaker A / Bassignable
• Multi-Room Speaker Terminalassignable
• Front InputsUSB-A
• USB Audio / Made for iPod / Made for iPhoneYes / No / No
• AM/FM TunerYes

HDMI

• Total HDMI Inputs / No. Support 8K6 / 3
• HDCP2.3 supportYes
• HDMI Outputs: Main / Zone1 / 0
• Analog to HDMI Video ConversionNo
• HDMI Upscaling1080P/4K to 8K
• Max resolution @ framerate8K/60Hz, 4K/120Hz
• Audio Return ChannelARC, eARC
• Video Dynamic RangeHDR / HLG / Dolby Vision / HDR10+ / Dynamic HDR
• ALLM (Auto Low Latency Mode) Pass-through for gamingYes
• Variable Refresh Rate / Quick Frame TransportYes / Yes
• HDMI Pass-Through in Standby ModeYes
• CECYes
• DSD Audio over HDMINo
• Auto LipSyncYes

Performance Technologies

• Copper Plated ChassisNo
• Toroidal Power Supply TransformerNo
• Hyper Dynamic Amplifier Modules (HDAM) (List version)No
• Pure Direct ModeYes
• Gold Plated RCA TerminalsNo
• Clock Jitter ReducerNo

Acoustic Room Correction

• AudysseyMultEQ
• Audyssey Dynamic EQ / Dynamic VolumeYes / Yes
• Audyssey LFCNo
• Dirac Live SupportNo
• Variable Cross OverYes
• Optimized Bass RedirectionYes
• Bass SyncNo

Music File Support

• Lossy FormatsMP3 / WMA / AAC
• Lossless formatsFLAC HD 192/24 / WAV 192/24 / ALAC 192/24
• DSD Audio2.8 MHz / 5.6 MHz
• Gapless PlaybackFLAC, WAV ,ALAC ,DSD
• Compressed Audio Enhancer: MDAX2Yes
• Network Audio SharingYes

Streaming Services

• HEOS Multi-room and StreamingYes
• AirPlay Audio StreamingAirPlay 2
• Internet RadioTuneIn
• Spotify*Spotify Connect
• PandoraYes
• SiriusXMYes
• Other Streaming Services *Amazon Music HD/
  Amazon Music / TIDAL / Deezer / iHeart Radio / Napster / SoundCloud / Mood Mix
• Roon testedYes

Network Connectivity

• Ethernet PortsYes
• Wi-Fi (include version / band)Yes
• Bluetooth (Include version)Yes
• Bluetooth Re-transmit for Bluetooth headphonesYes

Smart Home Integration and Control

• Voice Assistant CompatibilityAlexa / Google Voice Assistant / Apple HomePod
• App for Smart Phones & Tablets (iOS & Android)Marantz AVR Remote App, HEOS
• HEOS Multi-Room IntegratedYes
• HEOS Link Compatibility: IR/ IPYes /Yes
• Multi-Room zones2
• Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog2 Ch / 2 Ch / Yes / Yes
• Zone Audio Output: Speaker / PreoutYes / Yes
• Zone HDMI Output from HDMI SourceNo
• Control ConnectivityIP Control / Web Control / App Control
• IR Flasher InYes
• Marantz Remote BusYes
• DC Trigger Output1
• HDMI DiagnosticsYes

General

• Available ColorsBlack
• Metal Front PanelNo
• System Remote ControlRC050SR
• Power Consumption in W250
• Power Consumption No-Sound (ECO on/off) in W30 / 40
• Standby Consumption in W0.2
• CEC Standby Consumption in W0.5
• Network Standby Consumption in WLess than 2.0
• Maximum Dimensions
  Antenna:Horizontal:(W x D x H) in inches
  Antenna:Vertical :(W x D x H) in inches
  W/o Antenna:(W x D x H) in inches17.4 x 15.1 x 4.3
  17.4 x 15.1 x 7.0
  17.4 x 14.7 x 4.3
• Weight in lbs.19.2
• What's in the boxMain unit, remote control, batteries, AM/FM antennas, wire labels, quick start guide, Audyssey microphone, card board microphone stand, 2 External Detachable Antenna, AC cord

Others

• Front Displayport hole OLED
• GUI Languages3
• Setup AssistantYes
• Smart Select on RemoteYes
• Firmware Update by Network / USBYes / Yes
• ECO ModeYes
• Auto Power offYes
• Sleep TimerYes
