Marantz Cd player- CD60
Marantz Cd player- CD60
Featuring contemporary styling and excellent sound
- Artisinal Design
- CD & CD-R/RW Support
- Exclusive HDAM
- High Res USB Playback
- Marantz Musical Digital Filtering
- 5 Year Warranty

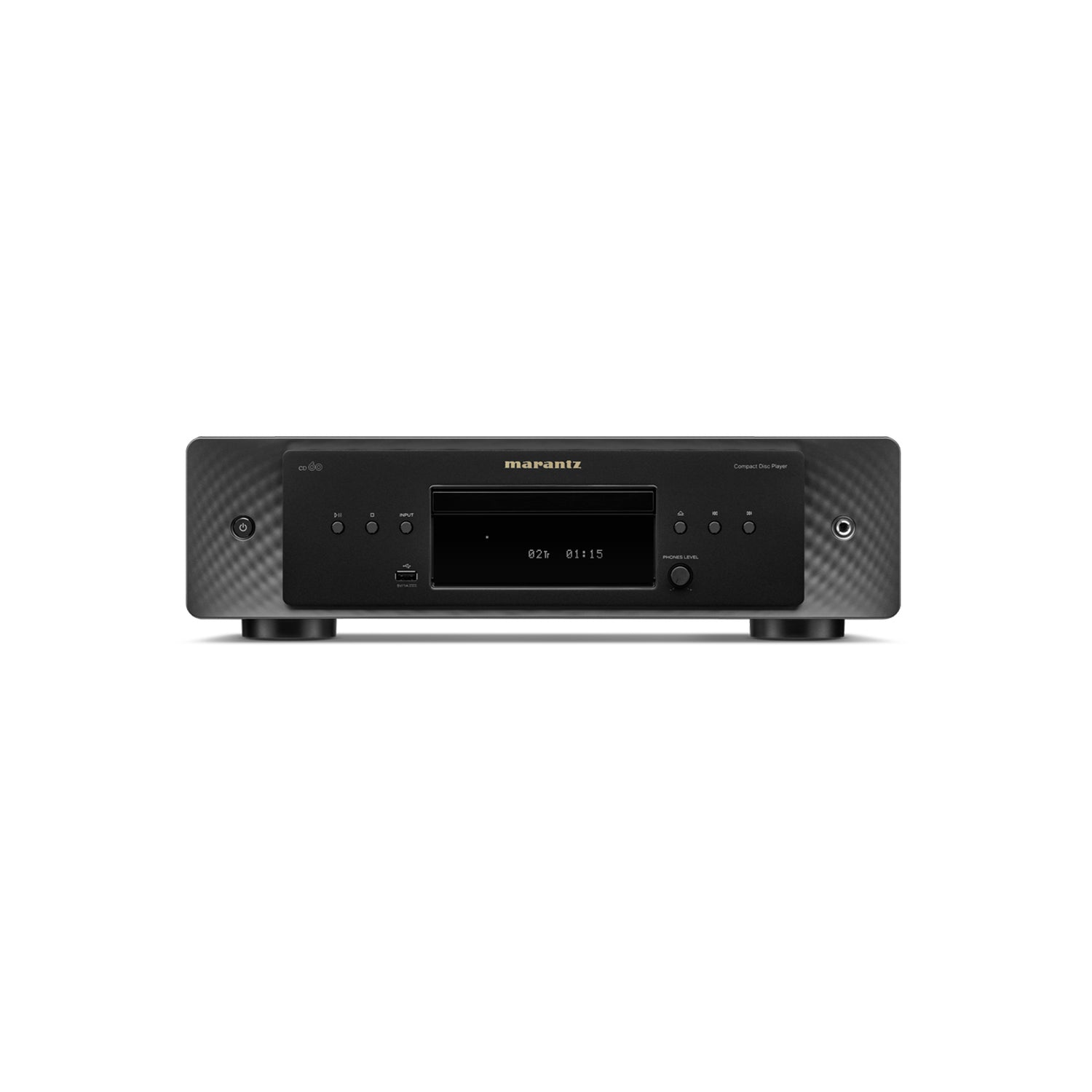

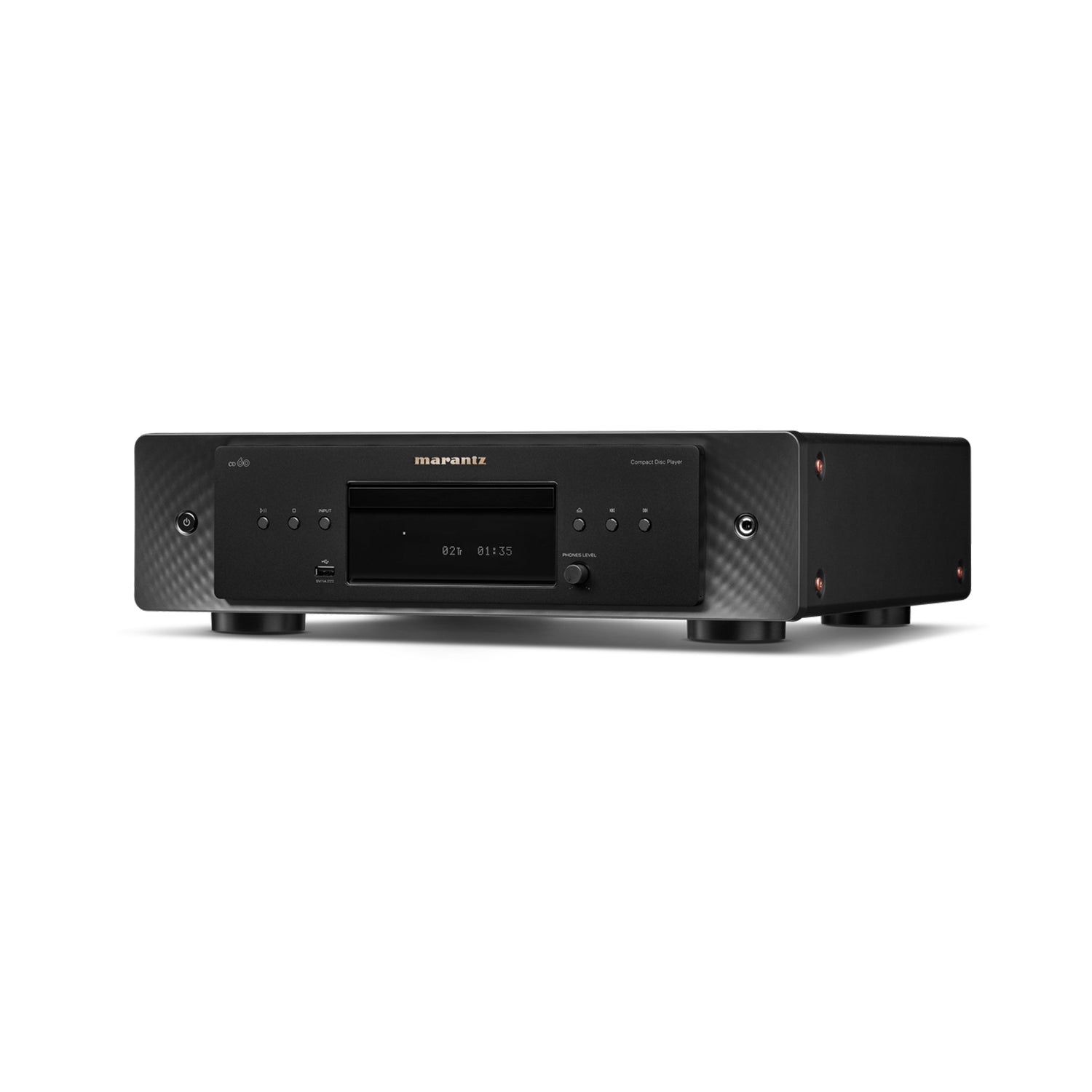

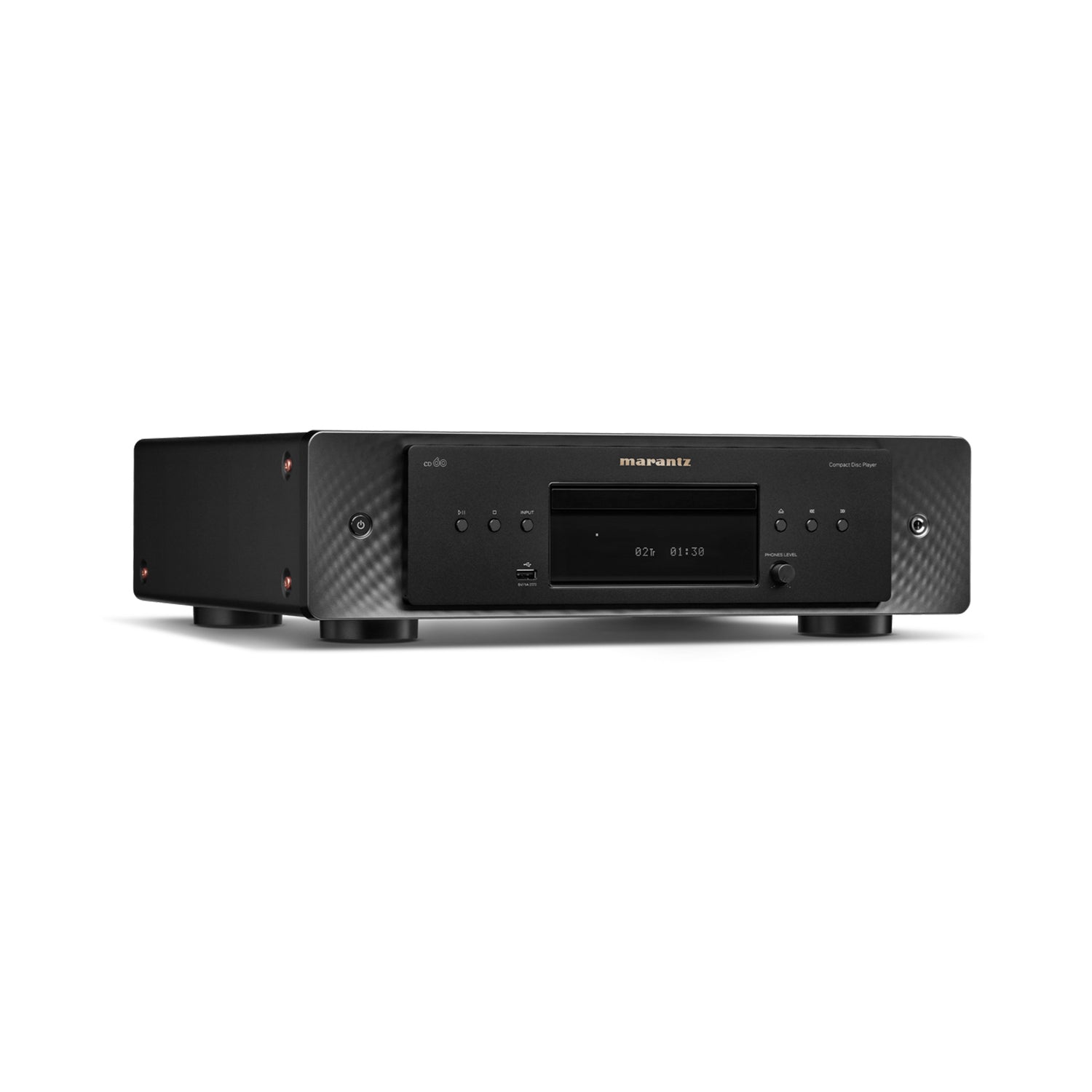

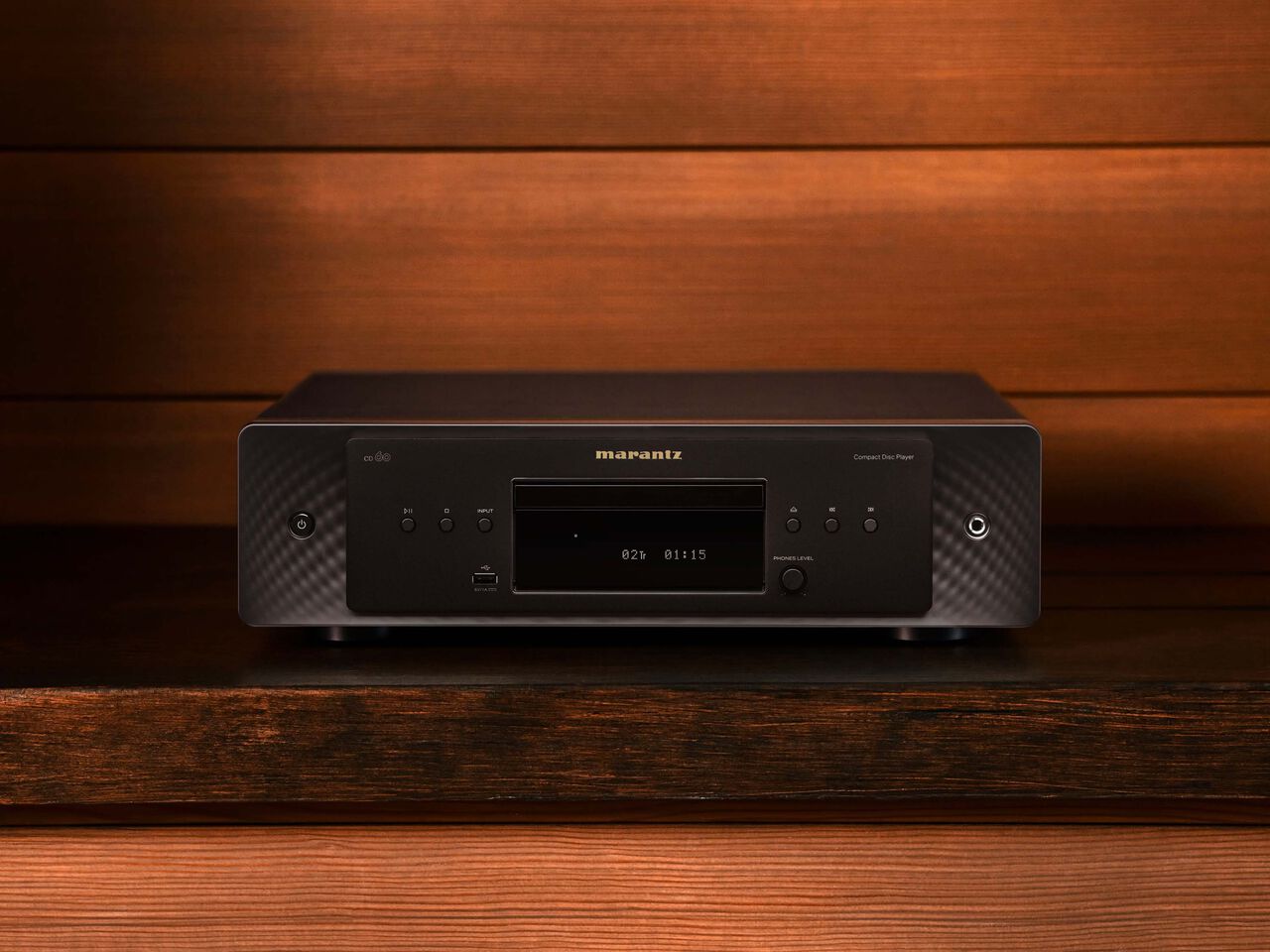

Iconic Design for Modern CD Enthusiasts
CD 60
Architectural design, modern materials, and intuitive operation make CD 60 as incredible to behold as to hear.
Unveil New Sounds In Classic CDs
CD 60 is for those who cherish their CD collections and who seek to discover new details upon every listen.
Sound Master Tuned
The Marantz Sound Master meticulously tuned CD 60 for amazing performance with careful parts selection to create the Most Musical Sound in your home.
Optimized HDAM Circuit
In the CD 60, the proprietary HDAM circuit has been further optimized from its previous version by placing the parts symmetrically on the audio board and creating a more direct signal path. This update improves the sound stage from the previous models in pursuit of The Most Musical Sound.
Plays Hi-Res Audio USB Sources
The CD 60 can play back MP3, WMA, AAC and WAV, FLAC HD, ALAC, AIFF (up to 192-kHz/24bit), and DSD (up to 5.6- MHz) files from a connected USB storage device.
Details & Specifications
General:
Unit Dimensions (W x H x D mm)
- 442 x 129 x 396
Net Weight
- 7.5kg
Packaging Dimensions (W x H x D mm)
- 525 x 249 x 511
Panel Color
- Available Colors: Silver/Gold and Marantz Black
Front (Center) Panel
- Aluminum
Specifications:
Frequency Response
- USB DSD: 2Hz - 50kHz (-3dB)
- USB PCM: 2Hz - 50kHz (-1.5dB)
- CD: 2Hz - 20kHz
Total Harmonic Distortion
- USB DSD: 0.0006%
- USB PCM 24bit: 0.0005%
- CD: 0.0015%
Signal to Noise Ratio
- USB DSD: 110dB
- USB PCM 24bit: 118dB
- CD: 118dB
Dynamic Range
- USB DSD: 110dB
- USB PCM 24bit: 118dB
- CD: 101dB
Line Output Level
- 2.2Vrms
Headphone Output Level
- 28mW / 32 ohms
Power Consumption
- 38W
- Standby: 0.3W
Audio Feature
HDAM
- New HDAM + HDAM-SA2
Power Transformer
- EI
Headphone Amp
- High slew rate op-amp + HDAM-SA2
H/P Amp Gain Setting
- Yes (Low / Mid / High)
Digital Filter
- Filter 1, 2 Selectable
Connectivity Playback Capability
CD Compatibility
- CD / CD-R/RW / WMA / MP3 / AAC
Data Disc Compatibility
- DSD / WAV / ALAC

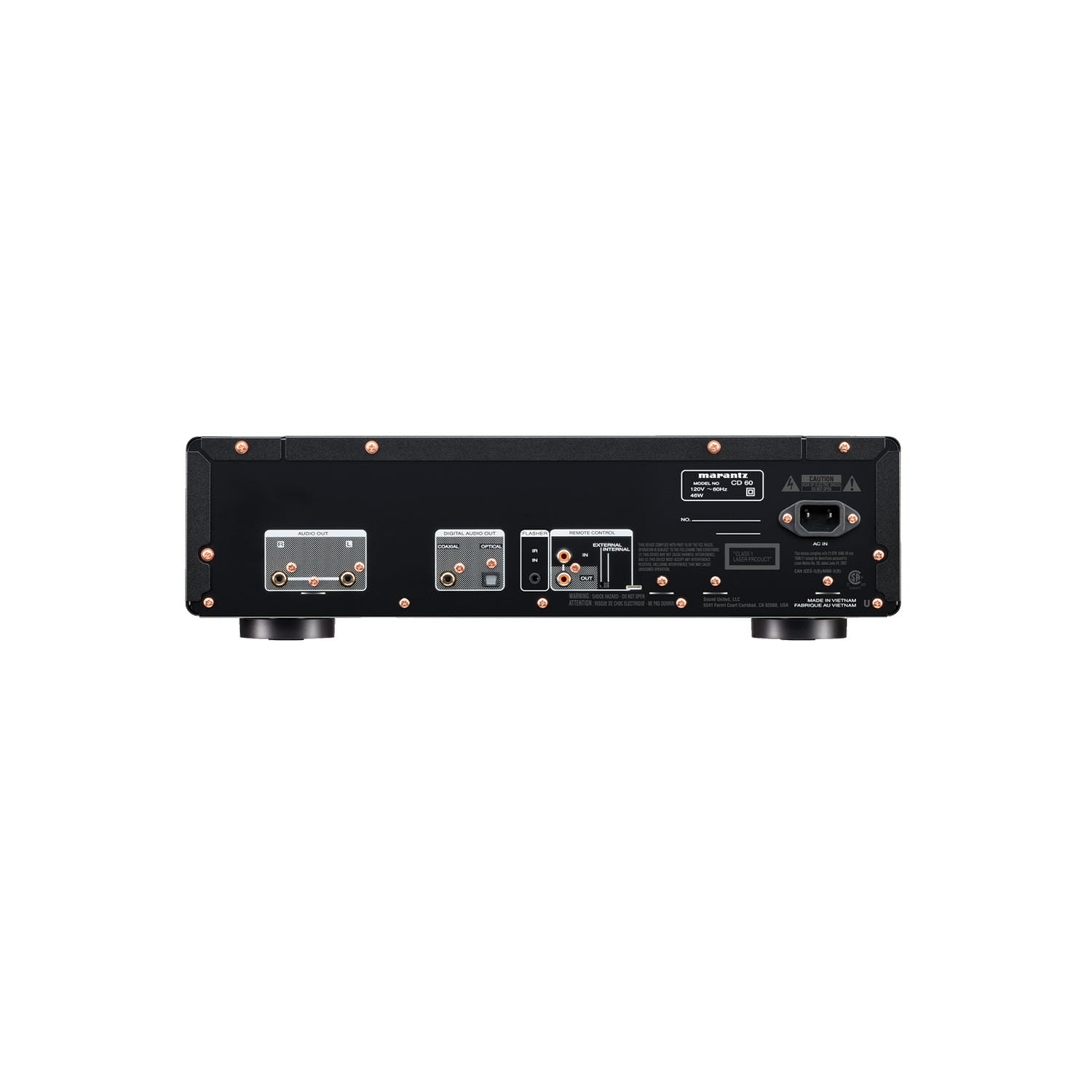

Fixed Analog Output (RCA)
- 1 (Gold Plated)
Optical Input / Output (Maximum Support)
- 0 / 1
Coaxial Input / Output (Maximum Support)
- 0 / 1
Headphone Output
- 1
Remote Control Bus Terminal
- Yes (RC-5 In / Out)
- w/ External / Internal Select Switch
Flasher Input
- Yes (U ver)
USB A
- 1 (Front)
Mass Storage Class
- 5V/1A
Support Format
- FAT 16/32
USB-A: FLAC / WAV / AIFF / ALAC / DSD
- Yes / Yes / Yes / Yes
DSD Native Playback
- Yes
USB Firmware Update
- Yes
Easy to use
Remote Controller
- System Remote (Amp and CD Player Control)
- Unit control (Button): POWER, Play/Pause, Stop, Input, Open/Close, Fwd, Rev
- Unit control (Knob): 1
- Phones Level
- Dimmer for Front Display: Bright / Dim / Dark / Off
- Control with App via Network Player (Use Remote Control Bus): Yes
- Last Function Memory: Yes
- Timer Play (Need external audio timer): Yes
- On/Off selectable in Menu
- Auto Standby Mode: Yes
Other
- Stereo RCA Cable: x1
- Remote connector cable: x1
- Accessory Box: Yes
- Battery: Yes (AAA x2)
- Power Cord: Yes
