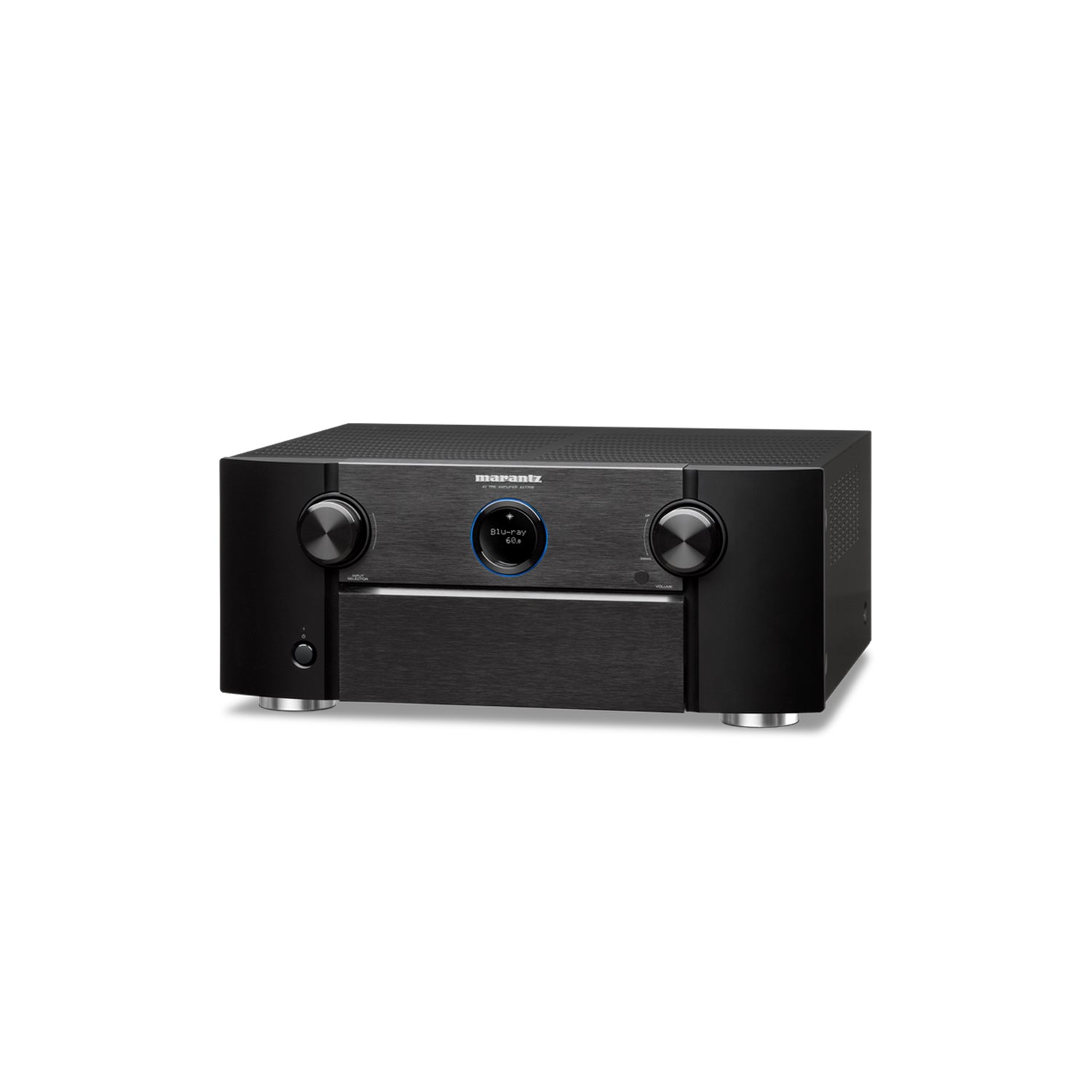

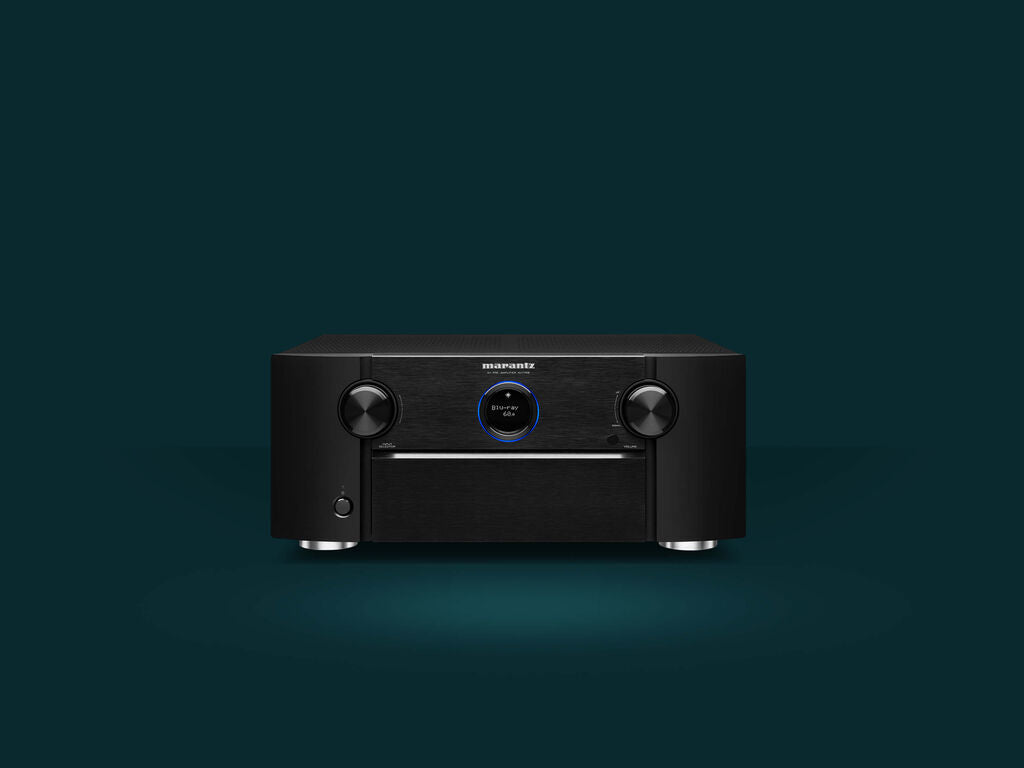

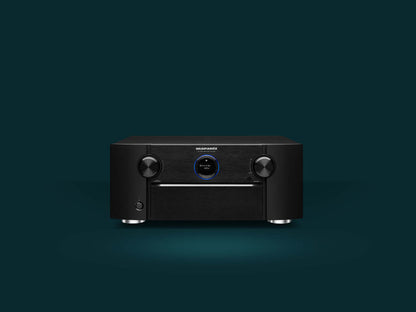

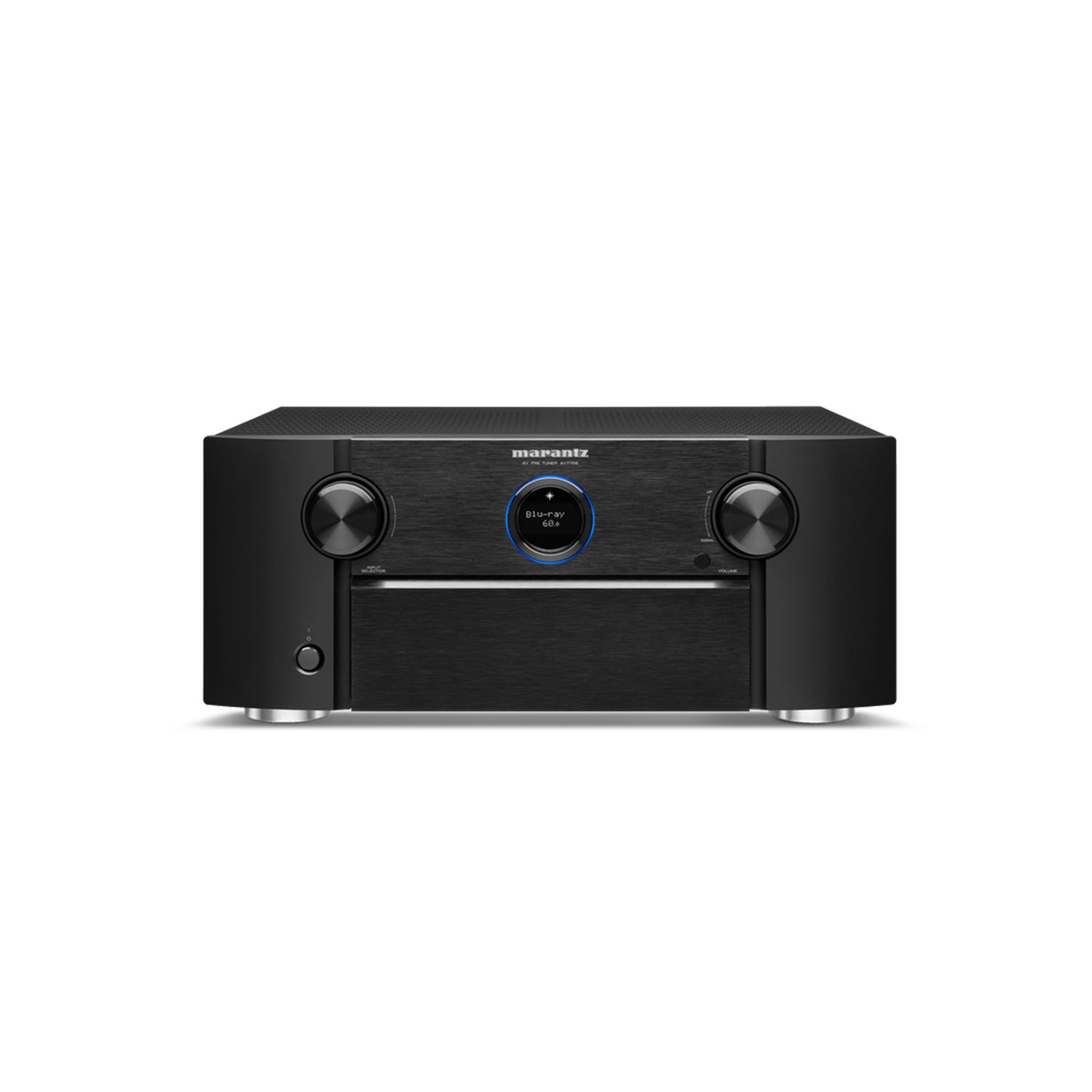

Marantz AV7706

Marantz AV7706

The Marantz AV7706 pre-amplifier features 8K HDMI passthrough, 3D audio formats, audiophile-quality music playback, multi-room HEOS® Built-in technology, and voice control.

Specifications

• Artisinal Design
• 7 Channels
• 7 HDMI Inputs plus eARC
• 8K Ultra HD
• 3D Audio
• HEOS Built-in
• 3 Year Warranty

Key Features

Multichannel Surround

• DTS Neo:X / DTS Neural:XNo / Yes
• DTS Virtual:XYes
• IMAX EnhancedYes
• Dolby TrueHD / Dolby Atmos/Dolby Atmos Height VirtualizationYes / Yes / Yes
• Dolby TrueHD / Dolby Atmos / Dolby SurroundNo / Yes
• Auro 3DYes
• Audyssey DSXNo
• Multichannel StereoYes
• Max Number of Processing (Preamp) Channels11.2

Sound Enhancements

• Copper Plated ChassisNo
• Power Transformer: Toroidal / EINo / Yes
• Current Feedback TopologyYes
• Hyper Dynamic Amplifier Modules (HDAM)Yes
• Pure DirectYes
• Gold plated RCA terminalsYes
• Clock Jitter ReducerYes
• AudysseyMultEQ XT32
• Audyssey Dynamic EQ / Dynamic VolumeYes / Yes
• Audyssey LFCYes
• Compressed Audio Enhancer: MDAX2Yes

Network

• HEOS Multi-room and StreamingYes
• Network Audio SharingYes
• Lossy formats MP3 / WMA / AACYes / Yes / Yes
• Lossless Formats: FLAC / ALAC / WAVYes / Yes / Yes
• Lossless formats: FLAC HD 192/24 / WAV 192/24 / ALAC 192/24Yes / Yes / Yes
• DSD Audio StreamingYes (2.8/5.6MHz)
• FLAC HD 192/24Yes
• WAV 192/24Yes
• ALAC 192/24Yes
• Gapless PlaybackYes (FLAC, WAV ,ALAC ,DSD)
• AirPlay Audio StreamingYes (AirPlay2)
• Internet radioYes (TuneIn)
• Other Streaming Services *Amazon Music HD/ Amazon Music / TIDAL / Deezer / iHeart Radio / Napster / Soundcloud / Mood Mix
• Compatible with Remote APP for Smart PhonesMarantz 2016 AVR RemYeste
• Compatible with Remote APP for TabletsAndroid / iOS / Amazon Kindle
• Ethernet PortsYes
• Wi-FiYes
• BluetoothYes

HDMI

• HDMI Inputs: Back / Front7 / 1
• HDMI Outputs: Main / Zone2 / 1
• Video Conversion Analog -> HDMIYes
• Analog to HDMI Scaling480i/576i up to 8K 60/50
• HDMI to HDMI Scalingup to 8K 60/50
• GUI Overlay on HDMIYes
• Enhanced ARCYes
• 3D Signal Pass-ThroughYes
• 4K Signal Pass-Through / Scaling / GUI OverlayYes / Yes / Yes
• HDMI Pass-Through in Standby ModeYes
• Picture Adjust / Noise ReductionYes / Yes
• CECYes
• DSD Audio CapabilityYes
• Audio Return ChannelYes
• Auto LipSyncYes

Multi-Room CI

• HEOS Multi-Room IntegratedYes
• HEOS Link Compatibility: IR/ IPYes / Yes
• Multi-Room Zones3
• Zone Audio Source: HDMI / Opt, Coax / Network, USB / AnalogYes (2ch) / Yes (2ch) / Yes / Yes
• Zone Audio Output: Speaker / PreoutNo / Yes
• Zone HDMI Output from HDMI SourceYes
• IP Control / RS232 Control / Web Control / App ControlYes / Yes /Yes / Yes
• IR Flasher InYes
• Marantz Remote BusYes
• DC Trigger Output2
• HDMI DiagnosticsYes

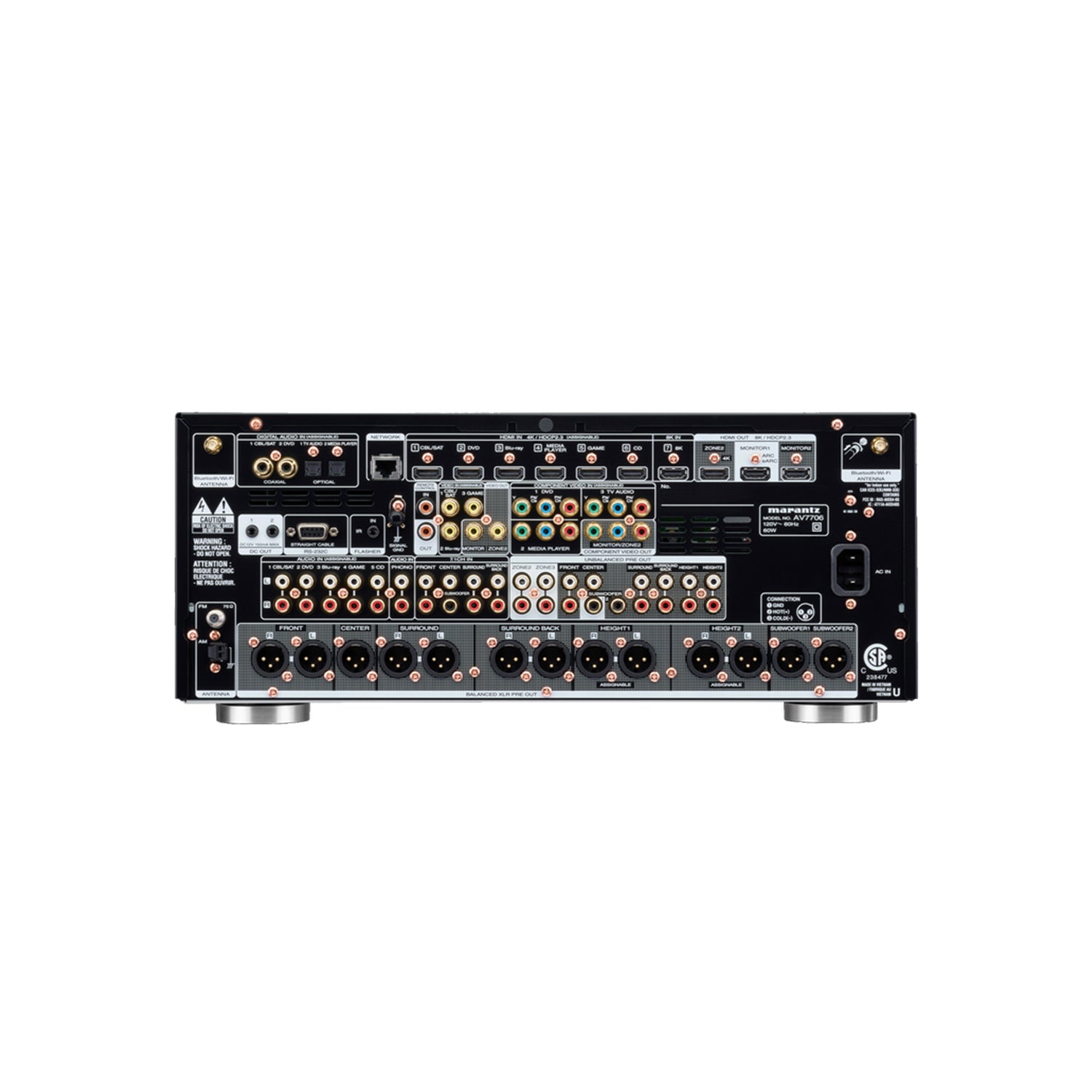

Inputs Outputs

• Composite In / Out3+1 / 2
• Component In / Out3 / 1
• HDMI In / Out7+1 / 3
• Multi-Room Video Out: Video / HDMIYes / Yes
• Analog In / Out5+1 / No
• Phono (MM) InYes
• Digital In: Optical / Coaxial2 / 2
• Multi-Room Out: Analog / Digital2 / No
• Multichannel Pre OutYes (11.2 RCA & 11.2 XLR)
• Subwoofer Out2 (independant)
• 7.1 Multichannel InputYes
• Speaker A Bassignable pre out
• Bi-Amp Driveassignable pre out
• Multi-Room Speaker Terminalpre out
• Front Inputs: Audio / Composite / Digital (Opt) / HDMI / USBYes / Yes / No / Yes / Yes
• USB Audio / Made for iPod® / Made for iPhone®Yes / No / No
• AM/FM TunerYes

General

• Metal Front PanelYes
• System Remote ControlRC044SR
• Pre-Programmed / Learnable / LCD DisplayYes / No / No
• Power Consumption in W60
• Power Consumption No-Sound (ECO on/off) in WNo
• Standby Consumption in W0.2
• CEC Standby Consumption in W0.5
• Network Standby Consumption in W3.5
• Network Control On Consumption in WTBD
• Maximum Dimensions
  Antenna:Horizontal:(W x D x H) in inches
  Antenna:Vertical :(W x D x H) in inches
  W/o Antenna:(W x D x H) in inches17.3 x 16.2 x 7.3
  ( 17.3 x 16.2 x 9.7 )
  【 17.3 x 15.8 x 7.3 】
• Weight in lbs.22.9 (TBD)

Others

• Auto Speaker Setup by MicrophoneAudyssey MultEQ XT32
• FL Display2 lines + port hole
• Graphic User Interface - GUIAdvanced
• ISF CertificationYes
• GUI Languages3
• Smart SelectYes
• Firmware Update by Network USBYes / Yes
• Variable Cross OverYes
• Optimized Bass RedirectionYes
• Bass SyncYes
• ECO ModeNo
• Auto Power offYes
• Sleep TimerYes
