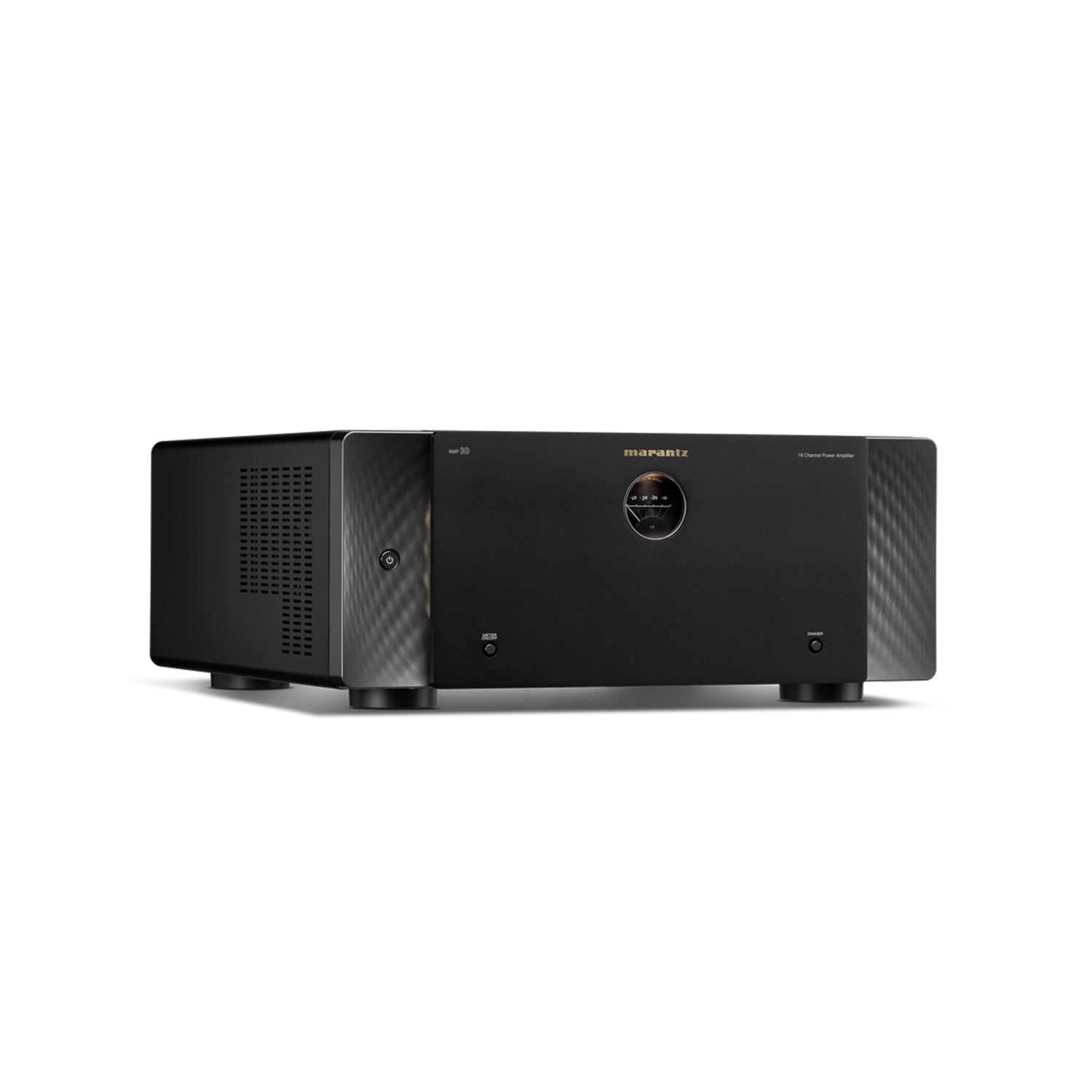

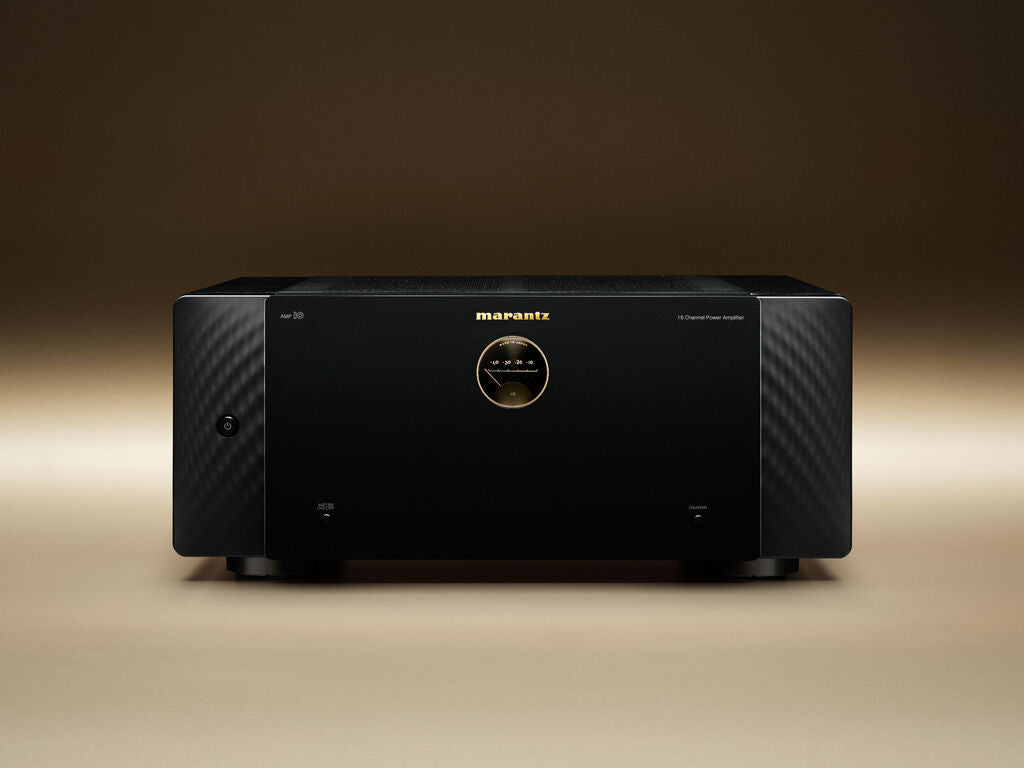

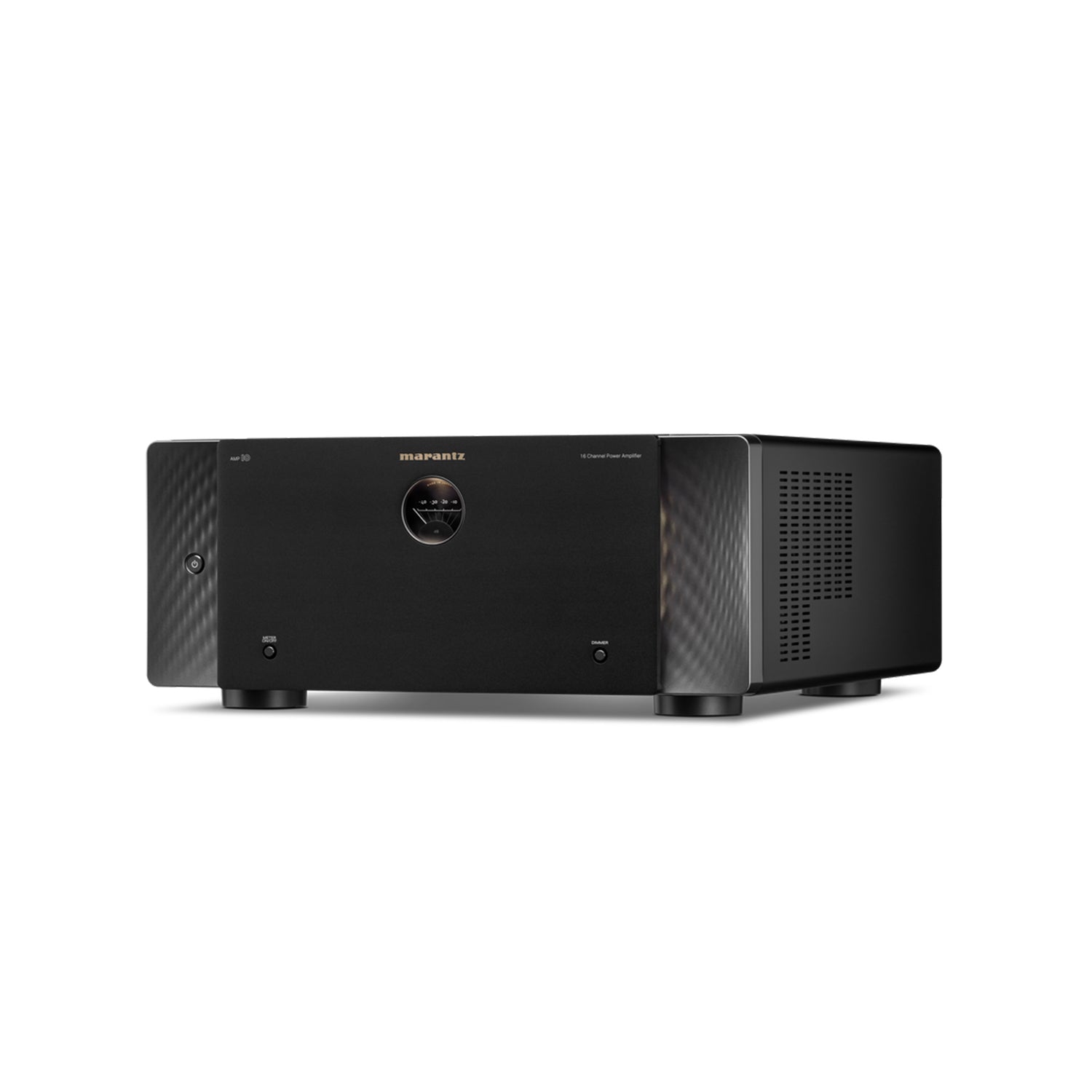

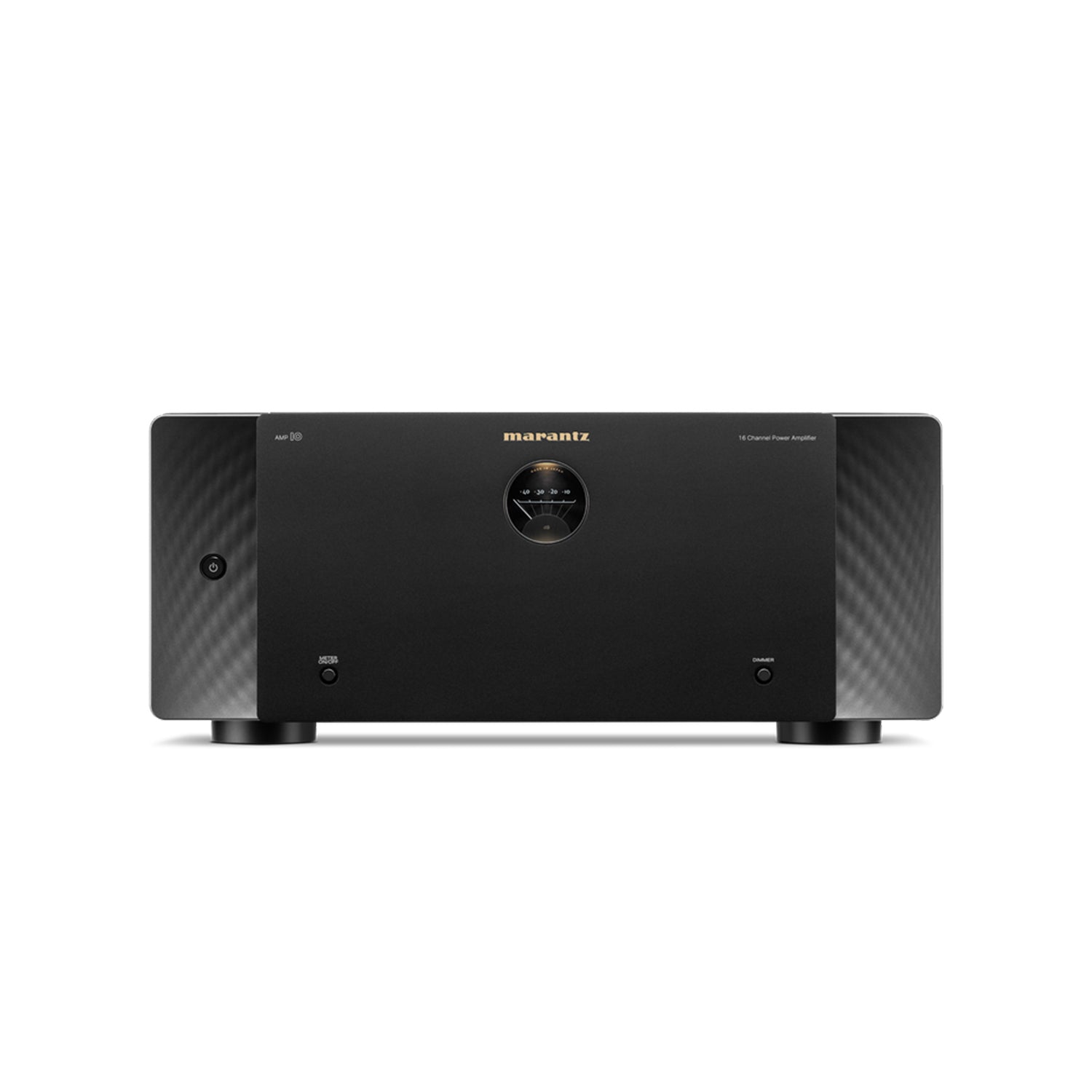

Reference 16-channel 200-watt-per-channel amplifier. Pair with AV 10 to create an elite-level home theater. Marantz HDAM, Current Feedback Amplification, and balanced line level input.
Specifications
Crafted in Shirakawa, Japan
16 Channels
200 Watts per Channel
Custom HDAM
Custom Switching Amplifiers
Selectable Output Modes
5 Year Warranty
Key Features
Multi-Room CI
IP Control / RS232 Control / Web Control / App ControlNo / Yes / No / No
IR Flasher InYes
Marantz Remote BusYes
DC Trigger Input/ Output1 / 1

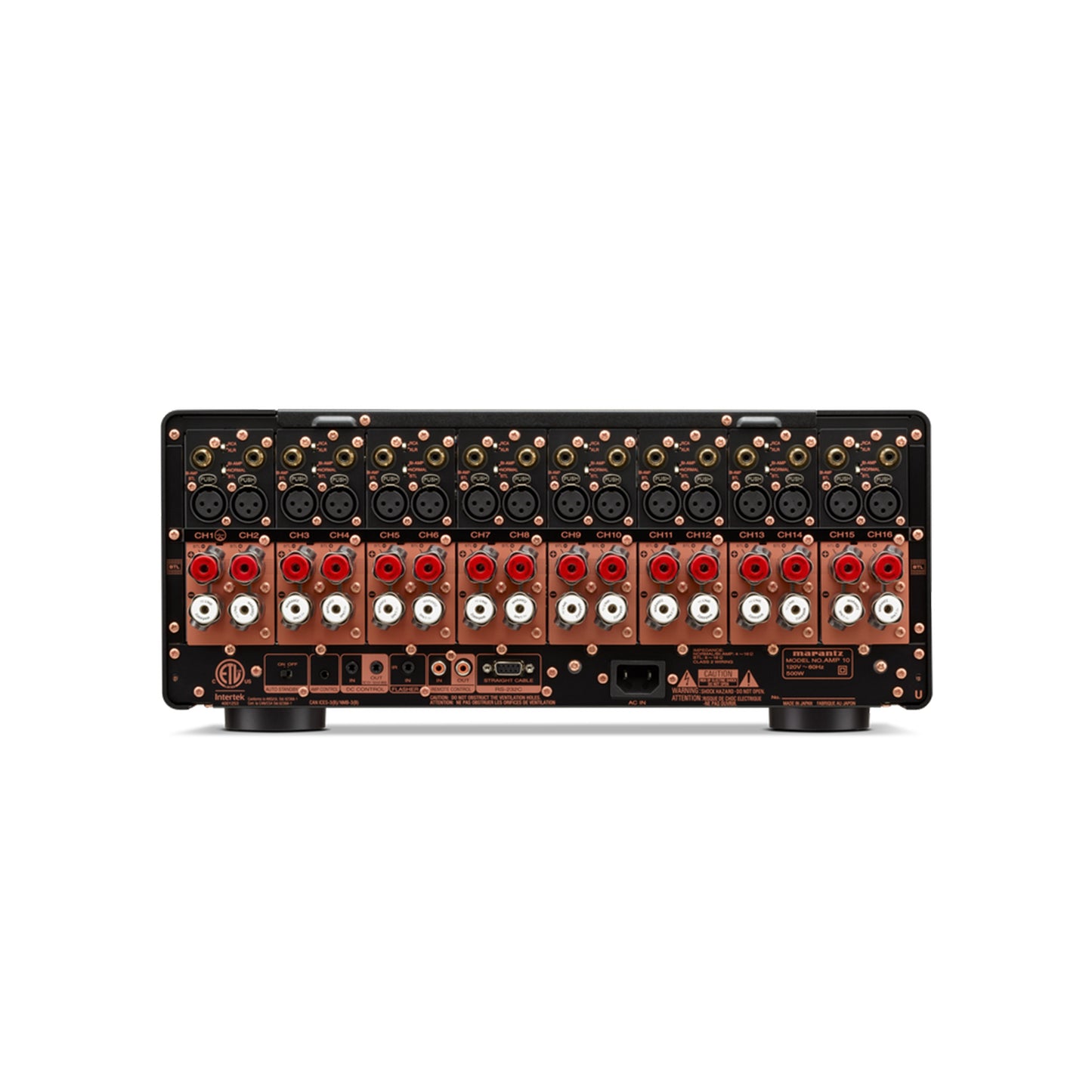

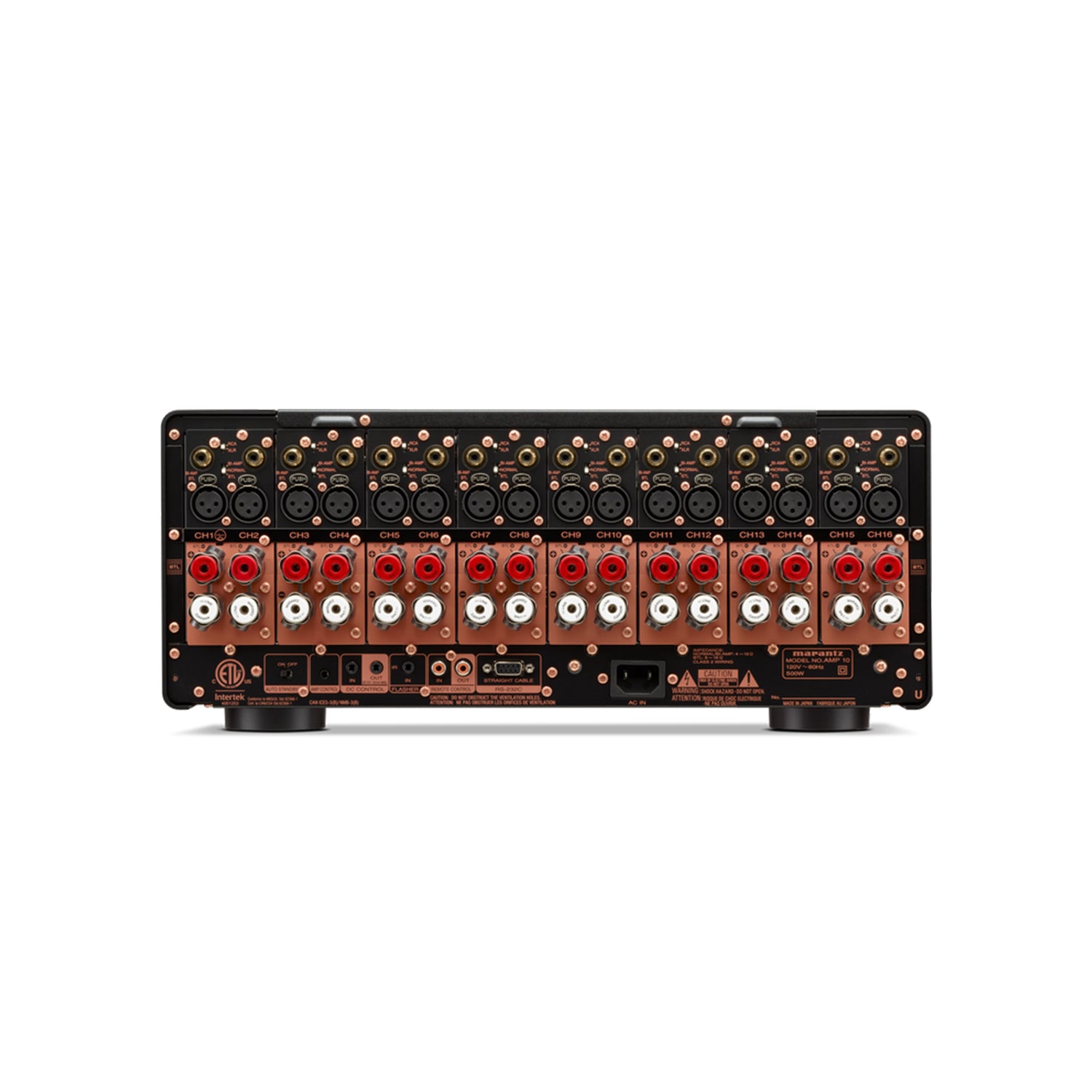

Inputs Outputs
Main Amplifier inBalanced & Unbalanced: 16ch (Exclusive use by a selector switch.)
Speaker TerminalSPKT-1+
Number of Speaker Terminals16
Bi-Amp Drive /BTL DriveYes / Yes
Level MeterYes
ChasissCopper Plated
Specifications
Number of poweramps16
Power Output (8 ohm, 1 kHz, 0.05% 2ch Drive) Normal / BTL200W / 400W
Power Output (4 ohm, 1 kHz, 0.7% 2ch Drive) Normal400W
Power Output (8 ohm, 1 kHz, 0.7% 5ch Drive) Normal200W
70% Guarantee(Normal/Bi-Amp/BTL)Yes
100% Guarantee(Normal/Bi-Amp)Yes
General
Metal Front PanelYes
Pre-Programmed / Learnable / LCD DisplayNo / No / No
Power Consumption in W500
Power Consumption No-Sound in W140W
Standby Consumption in W0.2
Maximum Dimensions【 17.4 x 19.2 x 7.4 】
Weight in lbs.43.7
What's in the boxMain unit, quick start guide, AC cord, Amp control cable, Remote control cable, SP terminal wrench
UPC code747192137519
Others
Front DisplayLevel Meter
Firmware Update by Network / USB / RS232CNo / No / No
