Marantz

Marantz 11.4 AV Receiver - Cinema30

Marantz 11.4 AV Receiver - Cinema30

$7,900.00 AUD
$7,900.00 AUD
Sale Sold out
Shipping calculated at checkout.
Color

Engineered with proprietary technology and crafted with premium materials for timeless style, CINEMA 30 redefines cinematic sound for superior home theater systems.

  • Crafted in Shirakawa, Japan
  • 11.4 Channels
  • 140 Watts per Channel
  • 7 HDMI Inputs plus eARC
  • 8K & Dolby Atmos
  • HEOS Built-in
  • 5 Year Warranty

Engineered To Perform

Built upon decades of rich heritage, designed with timeless style, and engineered for utmost performance, Marantz CINEMA Series are the foundation of the world's most demanding home theaters.

CINEMA 30

Timeless Yet Modern Style

Excellence is heard and seen. CINEMA 30 is meticulously crafted in Japan with authentic materials in a modern style, befitting its rich heritage and stunning performance.

No Compromise Engineering

HiFi performance technologies like HDAM SA-2, and more elevate the CINEMA 30 to performance levels seldom found in an AVR.

Sound Master Tuned & Calibrated For You

Powerful calibration and tuning tools are included, enabling you to get the best performance from your system.

 Technology Leader

Seven HDMI inputs, plus digital, analog, and phono inputs – even analog video plus loudspeaker and pre-amp outputs – ensure connectivity to virtually any components you have.

Details & Specifications:

Power Amplifier

Number of Powered Channels

  • 11

Power Output

  • 8 ohm, 20 Hz - 20 kHz, 0.05% 2ch Drive: 140 W
  • 6 ohm, 1 kHz, 0.7% 2ch Drive: 175 W
  • 6 ohm, 1 kHz, 10% 1ch Drive: 250 W

70% Guarantee

  • Yes

Discrete Power Amplifier

  • Yes

Amplifier Topology

  • Class A/B

Current Feedback Topology

  • Yes

Bi-Amp Drive

  • Assignable

Multichannel Surround Technologies

DTS

  • DTS HD Master
  • DTS

  • DTS

    Pro
  • DTS Neural

  • DTS Virtual

Dolby

  • Dolby TrueHD
  • Dolby Atmos
  • Dolby Atmos Height Virtualization
  • Dolby Atmos Music
  • Dolby Surround

Other

  • Max Number of Processing (Preamp) Channels: 13.4
  • IMAX Enhanced: Yes
  • Auro 3D: Yes
  • Audyssey DSX: No
  • Multichannel Stereo: Yes

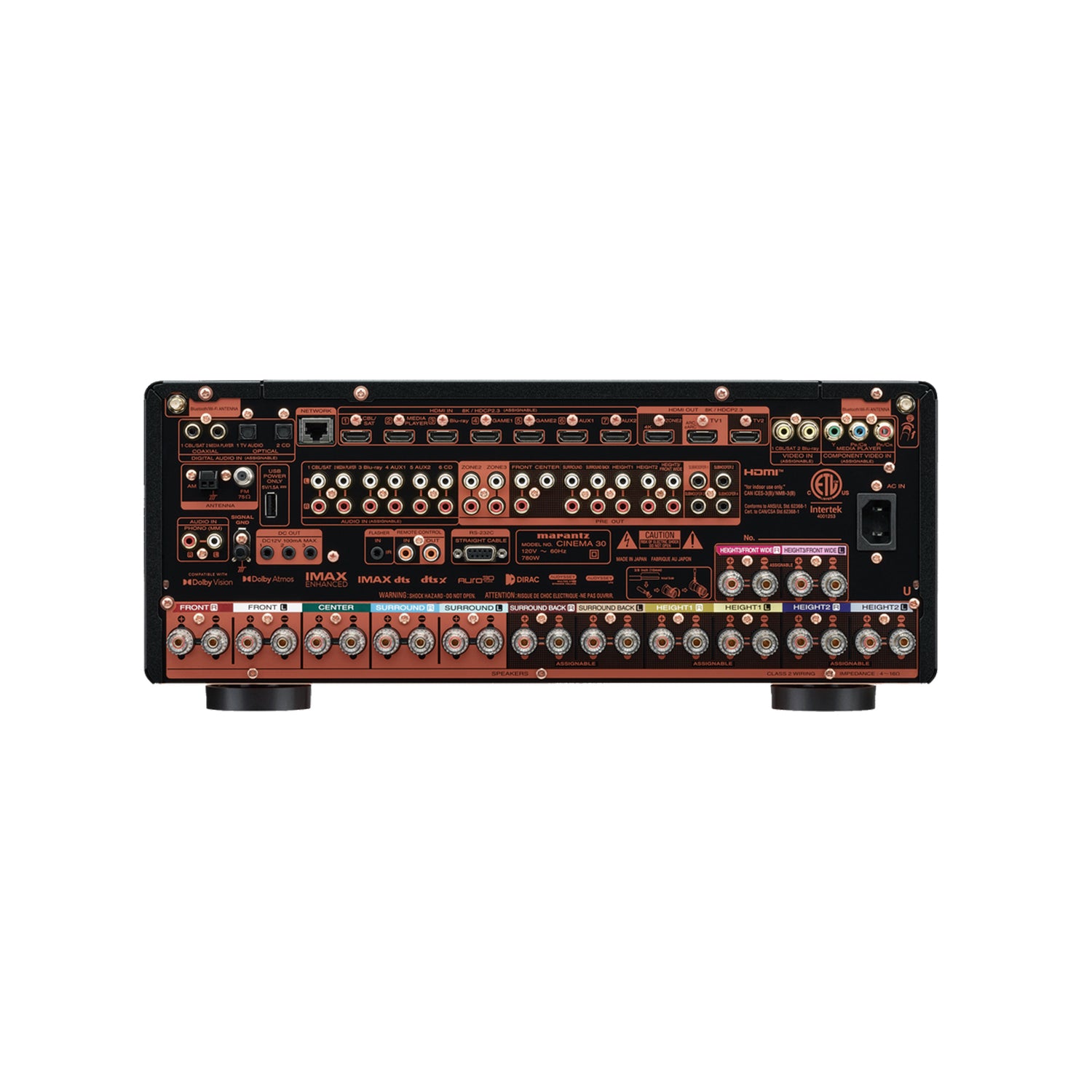

Inputs Outputs

Composite In / Out

  • In: 2
  • Out: 0

Component In / Out

  • In: 1
  • Out: 0

HDMI In / Out

  • In: 7
  • Out: 3

Multi-Room Video Out

  • Video: No
  • HDMI: Yes

Phono (MM) In

  • Yes

Digital In

  • Optical: 2
  • Coaxial: 2

Multi-Room Out

  • Analog: 2
  • Digital: 0

Subwoofer Out

  • 4 (independent)

7.1 Multichannel Input

  • No

Number of Speaker Terminals

  • 13

Speaker A / B

  • Assignable

Multi-Room Speaker Terminal

  • Assignable

USB Audio / Made for iPod / Made for iPhone

  • USB Audio: Yes
  • Made for iPod: No
  • Made for iPhone: No

AM/FM Tuner

  • Yes

DAB+ Tuner

  • No

Analog In / Out

  • In: 6
  • Out: 0

Multichannel Pre Out

  • Yes (13.4)

Front Inputs

  • Audio: No
  • Composite: No
  • Digital (Opt): No
  • HDMI: No
  • USB-A: Yes

HDMI

Total HDMI Inputs / No. Support 8K

  • Total HDMI Inputs: 7
  • Support 8K: 7

HDCP2.3 support

  • Yes

HDMI Outputs: Main / Zone

  • Main: 2
  • Zone: 1

Audio Return Channel

  • ARC, eARC

ALLM (Auto Low Latency Mode) Pass-through for gaming

  • Yes

Variable Refresh Rate / Quick Frame Transport

  • Variable Refresh Rate: Yes
  • Quick Frame Transport: Yes
  • Quick Media Switching: No

HDMI Pass-Through in Standby Mode

  • Yes

CEC

  • Yes

DSD Audio over HDMI

  • 2-channel – 5.1-channel, 2.8 MHz

Auto LipSync

  • Yes

HDMI Inputs: Back / Front

  • Back: 7
  • Front: -

Video Conversion Analog -> HDMI

  • Yes

HDMI to HDMI Scaling

  • 1080P/4K to 8K

HDMI 2.1: 8K/60Hz AB / 4K/120Hz AB

  • 8K/60Hz AB: Yes
  • 4K/120Hz AB: Yes

8K/60Hz AB / 4K/120Hz AB Pass-through In/Out

  • Pass-through: 7 In / 2 Out (up to 40Gbps)

HDMI 2.0: 3D / 4K / CEC / ARC

  • 3D: Yes
  • 4K: Yes
  • CEC: Yes
  • ARC: Yes

HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDR

  • HDR: Yes
  • HLG: Yes
  • Dolby Vision: Yes
  • HDR10+: Yes
  • Dynamic HDR: Yes

Variable Refresh Rate / Quick Frame Transport / Quick Media Switching

  • Variable Refresh Rate: Yes
  • Quick Frame Transport: Yes
  • Quick Media Switching: No

8K signal pass-through / scaling / GUI overlay

  • Pass-through: Yes
  • Scaling: Yes
  • GUI Overlay: Yes

4K Signal Pass-Through / Scaling / GUI Overlay

  • Pass-through: Yes
  • Scaling: Yes
  • GUI Overlay: Yes

DSD Audio Capability

  • Yes

Performance Technologies

Copper Plated Chassis

  • Yes

Toroidal Power Supply Transformer

  • Yes

Hyper Dynamic Amplifier Modules (HDAM)

  • Yes

Pure Direct Mode

  • Yes

Gold Plated RCA Terminals

  • Yes

Clock Jitter Reducer

  • Yes

Acoustic Room Correction

Audyssey

  • MultEQ XT32

Audyssey Dynamic EQ / Dynamic Volume

  • Dynamic EQ: Yes
  • Dynamic Volume: Yes

Audyssey LFC

  • Yes

Dirac Live Support

  • Yes

Variable Cross Over

  • Yes

Optimized Bass Redirection

  • Yes

Bass Sync

  • Yes

Dirac Live Upgradability

  • Yes

Music File Support

Lossy Formats

  • MP3
  • WMA
  • AAC

Lossless Formats

  • FLAC HD 192/24
  • WAV 192/24
  • ALAC 192/24

DSD Audio

  • 2.8 MHz
  • 5.6 MHz

Gapless Playback

  • FLAC
  • WAV
  • ALAC
  • DSD

Compressed Audio Enhancer: MDAX2

  • Yes

Network Audio Sharing

  • Yes

Streaming Services

HEOS Multi-room and Streaming

  • Yes

AirPlay Audio Streaming

  • AirPlay 2

Internet Radio

  • TuneIn

Streaming Services

  • Spotify: Spotify Connect
  • Pandora: Yes
  • SiriusXM: Yes
  • Other Streaming Services: Amazon Music HD, Amazon Music, TIDAL, Deezer, Napster, SoundCloud, Mood Mix

Roon tested

  • Yes

Network Connectivity

Ethernet Ports

  • Yes

Wi-Fi

  • Yes

Bluetooth

  • Yes

Bluetooth Re-transmit for Bluetooth headphones

  • Yes (with volume control)

Smart Home Integration and Control

Voice Assistant Compatibility

  • Alexa / Google Voice Assistant / Apple HomePod

App for Smart Phones & Tablets (iOS & Android)

  • Marantz AVR Remote

HEOS Multi-Room Integrated

  • Yes

HEOS Link Compatibility: IR / IP

  • Yes / Yes

Multi-Room zones

  • 3

Zone Audio Source

  • HDMI / Optical, Coaxial / Network, USB / Analog
  • 2 Ch / 2 Ch / Yes / Yes

Zone Audio Output

  • Speaker / Preout
  • Yes / Yes

Zone HDMI Output from HDMI Source

  • Yes

Control Connectivity

  • IP Control / RS232 Control / Web Control / App Control

IR Flasher In

  • Yes

Marantz Remote Bus

  • Yes

DC Trigger Output

  • 3

HDMI Diagnostics

  • Yes

Others

Front Display

  • 2 line FLD + port hole OLED

GUI Languages

  • 3

Setup Assistant

  • Yes

Smart Select on Remote

  • Yes

Firmware Update by Network / USB

  • Yes / Yes

ECO Mode

  • Yes

Auto Power off

  • Yes

Sleep Timer

  • Yes

GUI Overlay on HDMI

  • Yes

CEC

  • Yes

Auto Speaker Setup by Microphone

  • Audyssey MultEQ XT32 / Dirac Live (upgrade)

Graphic User Interface - GUI

  • Modern HD GUI

Smart Select

  • Yes

General

  • Available Colors: Black/Silver-Gold
  • Metal Front Panel: Yes

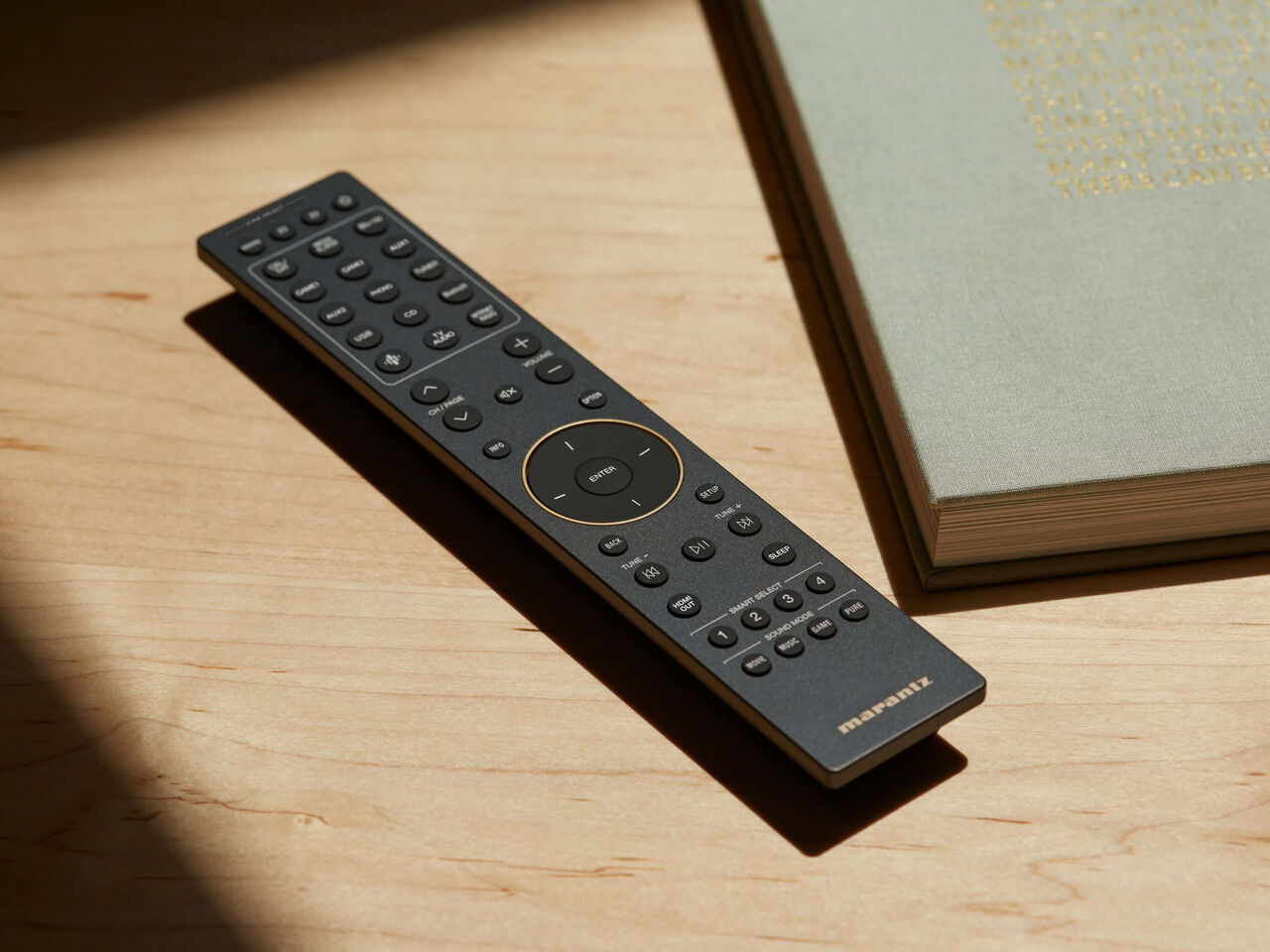

  • System Remote Control: RC-051SR
  • Power Consumption in W: 780W
  • Power Consumption No-Sound (ECO on/off) in W: 65W / 110W
  • Standby Consumption in W: 0.2W
  • CEC Standby Consumption in W: 0.5W
  • Network Standby Consumption in W: Less than 2.0W
  • What's in the Box: Main unit, remote control, batteries, AM/FM antennas, wire labels, quick start guide, Audyssey microphone, cardboard microphone stand, 2 External Detachable Antennas, AC cord
  • Weight in lbs: 42.8 lbs
