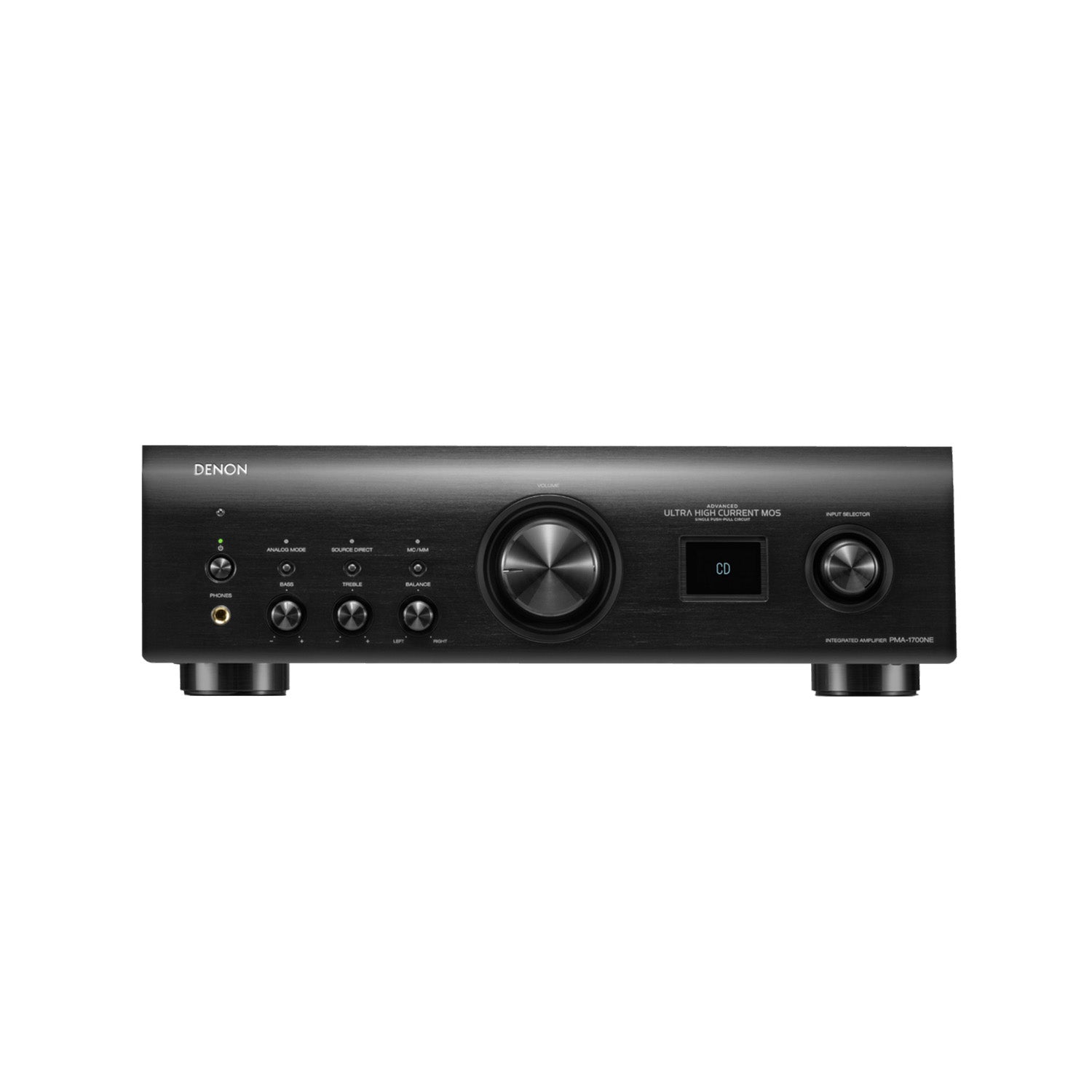

Denon PMA-1700NE

Denon PMA-1700NE

Featuring advanced ultra-high current single push-pull circuit power, Advanced AL32 Processing, and MM/MC phono equaliser, the Denon PMA-1700NE integrated amplifier delivers extraordinary sound quality with precise detail.

Specifications

• Stereo amplifier
• 70W per channel (8 ohms)
• AL32 Processing
• USB-DAC
• Precise electrical controls
• MM/MC phono

Key Features

General

• Unit (W x D x H): 434 x 410 x 135mm / 17.1 x 16.1 x 5.3in
• Cabinet Size (W x D x H): 434 x 374 x 135mm / 17.1 x 14.7 x 5.3in
• Net Weight: 17.6kg / 38.8lb
• Packaging Dimensions (W x D x H): 548 x 520 x 249mm / 21.6 x 20.5 x 9.8in
• Packaging Gross Weight: 20.4kg / 45lb
• Carton Colour: 2 Colour
• Cushion / Packing: 4 Separate / Sheet
• Panel Colour: SP / BK
• Front (Centre) Panel: Aluminium
• Side Cover: SECC with 4 straight emboss
• Side Screw: SP: Nickel / BK: Black
• Rear Panel: SECC t1.0mm
• Chassis Material: SECC t1.2mm
• Bottom Layer: Single

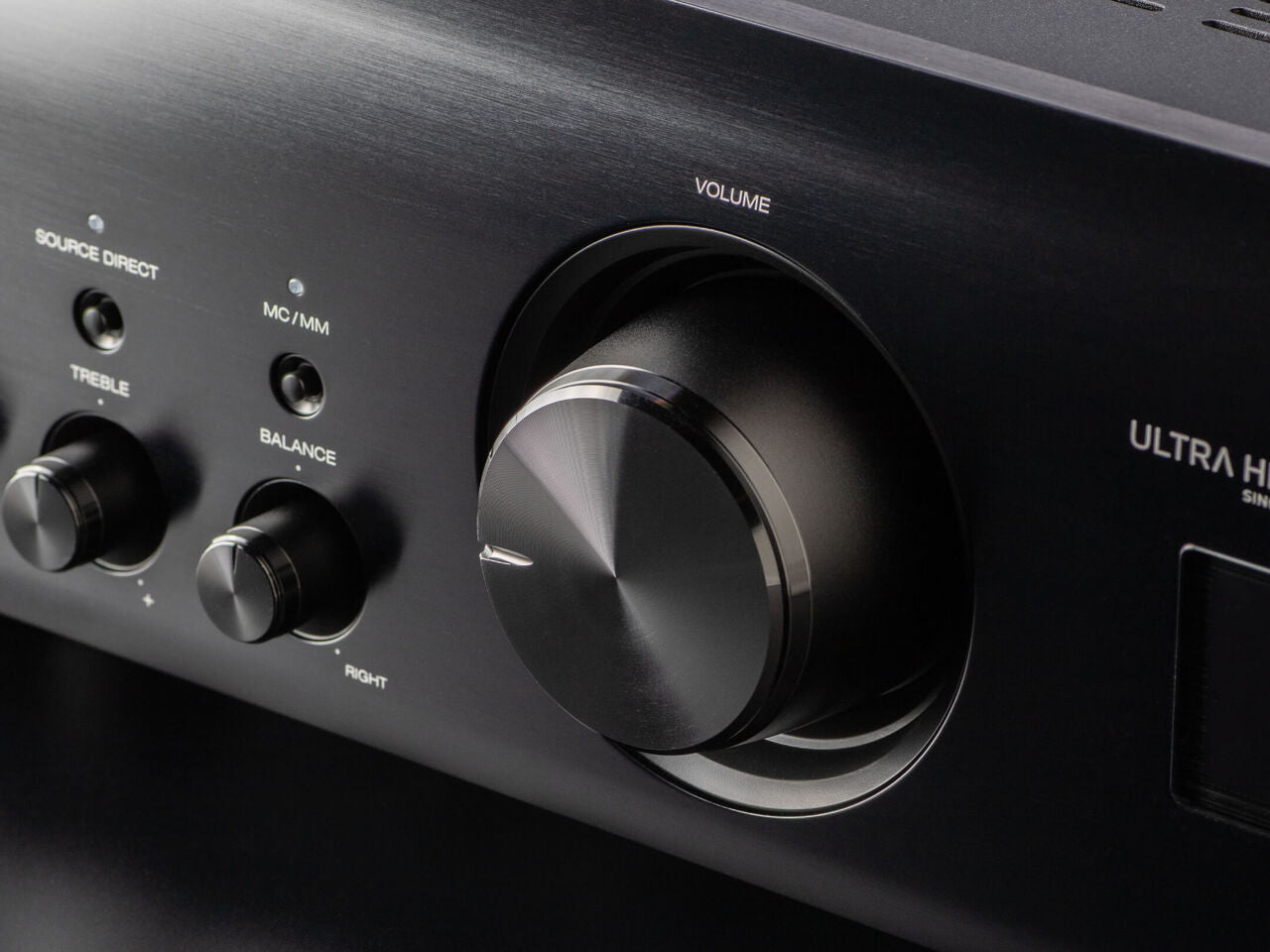

• Volume Knob: Aluminium
• Input Selector: Aluminium
• Bass / Treble / Balance / Phono Selector Knobs: Aluminium
• Power Button: Aluminium
• Other Knobs / Buttons (Loudness, Source Direct etc.): Moulded (Source Direct, Analog Mode, MM/MC)
• Foot: ABS Resin with Rigid Rib, w/Hot Stamp (H: 20mm)
• Heatsink for Power Amplifier: Extruded Aluminium


Specifications

• Rated Output Power: 70W + 70W
  (8ohm,20Hz-20kHz,THD0.07%)
  140W + 140W
  (4ohm, 1kHz, THD0.7%)
• Speaker Impedance: A or B : 4 ~ 16ohm
  A + B : 8 ~ 16ohm
• Frequency Response: 5Hz - 100kHz (0~ -3dB)
• Total Harmonic Distortion: 0.01 % (Rated output: –3 dB),
  8 ohm/ohms, 1 kHz
• Dumping Factor: 100 and over
• Input Sensitivity: Phono input MM: 2.5 mV / 47 kohm
  MC: 200
• RIAA Deviation: 20 Hz - 20 kHz ±0.5 dB (MM/MC)
• Phono Maximum Input MM: 130mV / 1kHz
  MC : 10mV / 1kHz
• Input Sensitivity: CD/LINE/RECORDER125 mV / 19 kohm
• Input Sensitivity: Power Amp input 0.85V / 47kohm (EXT. PRE)
• Signal to Noise Ratio PHONO (MM): (89dB)
  PHONO (MC): (74dB)
  CD: (107dB)
• Tone ControlBASS : 100Hz ±8dB
  TREBLE : 10kHz ±8dB
• Power Consumption: 295W
• at Standby: 0.2W TV autoplay off
  0.4W TV autoplay on

Audio Feature

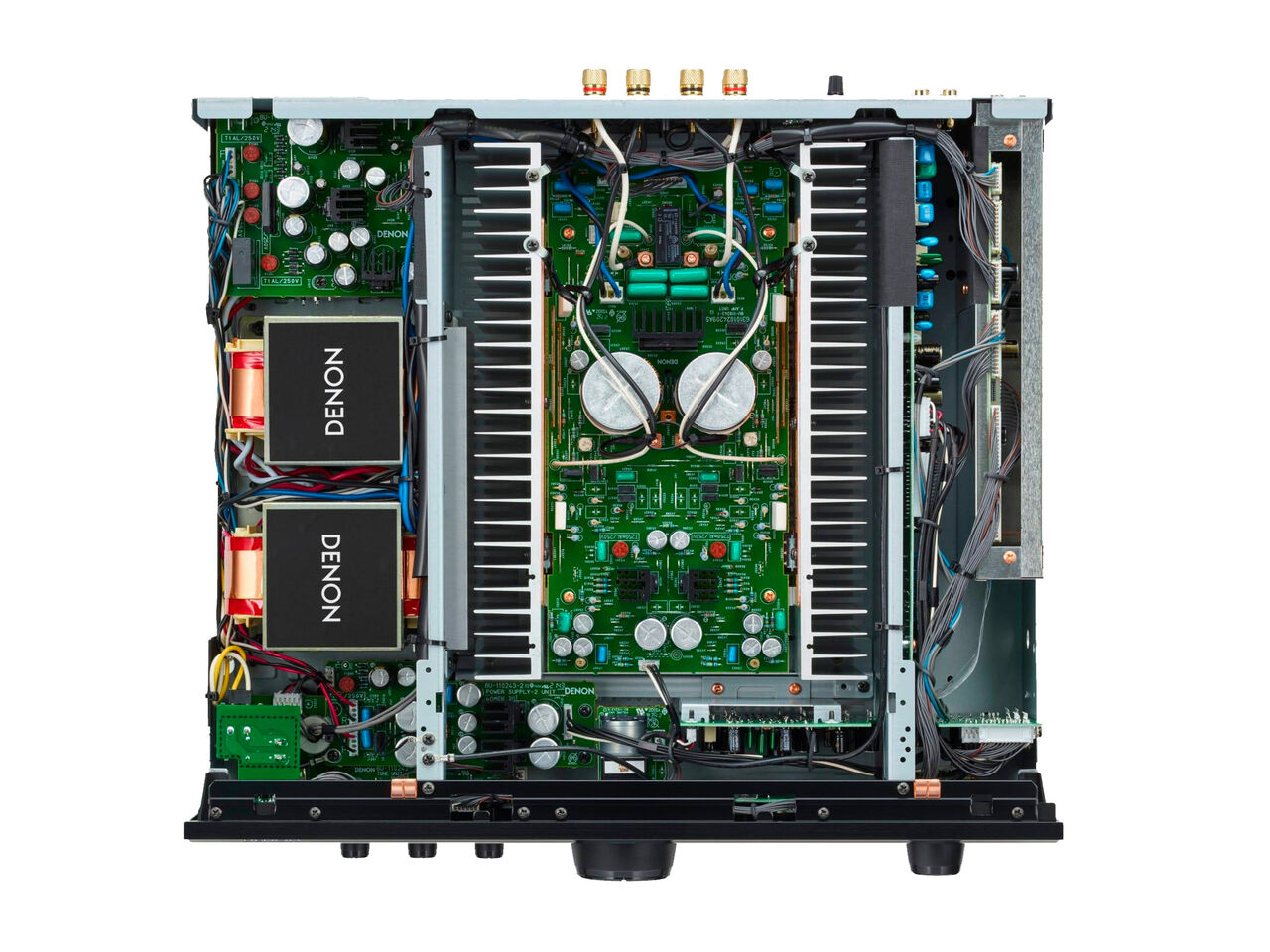

• Power Amplifier Circuit: New UHC-MOS, Single Push-Pull (7)
• Power Transformer: Dual El Core
• Pre-Amplifier Circuit: Variable Gain Preamplifier (OP AMP)
• Volume Control: Electric (MUSES 72323)
• Bass / Treble / Mid / Balance Control: Yes / Yes / No / Yes
• Type of Tone Control: Electric
• Controlled by: Potentiometer
• Headphone Circuit: Uses Power Amplifier
• Source Direct: Yes
• Analogue Amp Mode: Yes (Button on Front Panel)

• DAC Circuit: PCM1795
• Digital Filter: Fixed
• Digital Processing: Advanced AL32 Processing Plus
• DAC Master Clock Design (Doesn’t Support Network Playback): Yes
• Asynchronous Mode (for USB-B Input): Yes
• Isolator (for USB-B Input): Yes
• Full Isolation: Yes

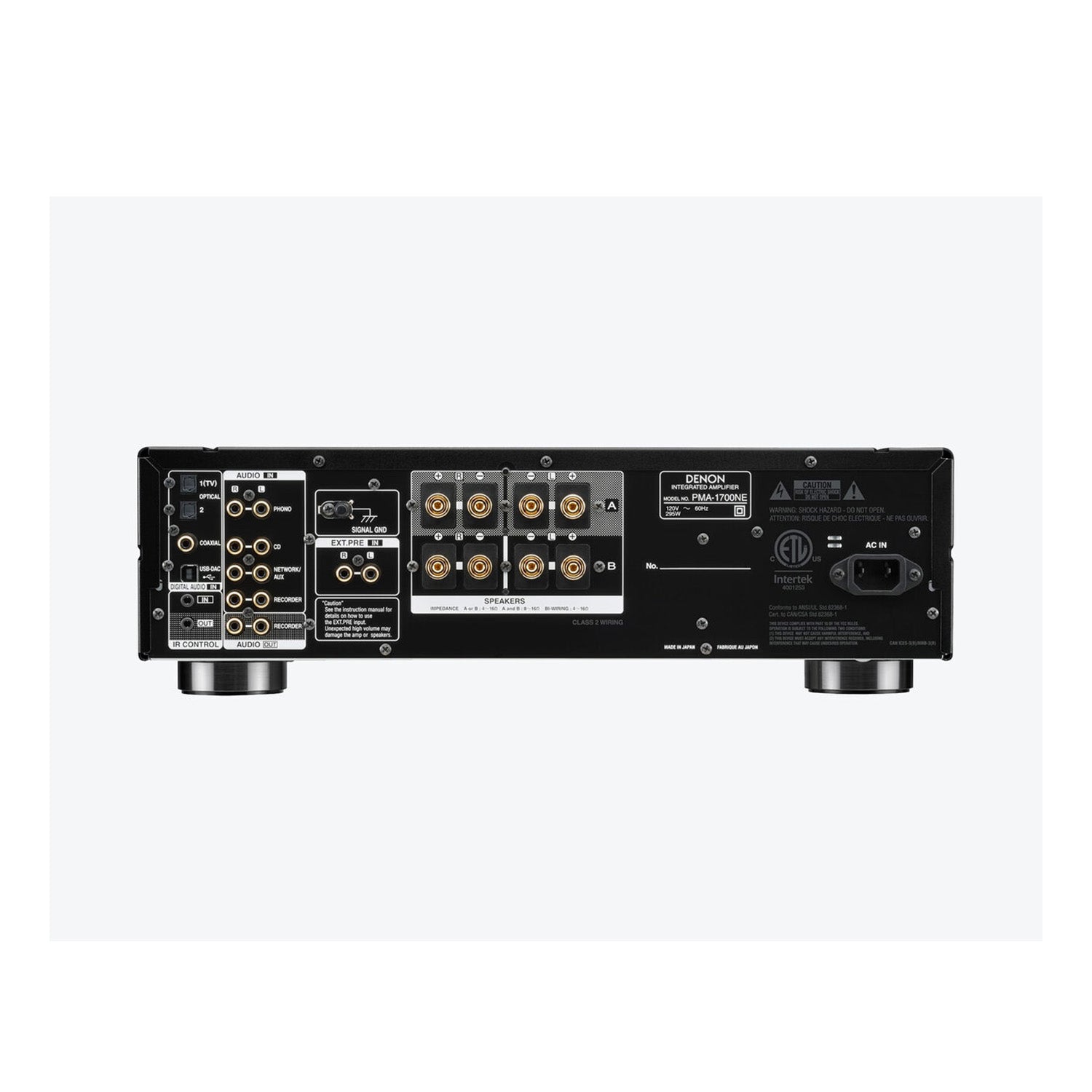

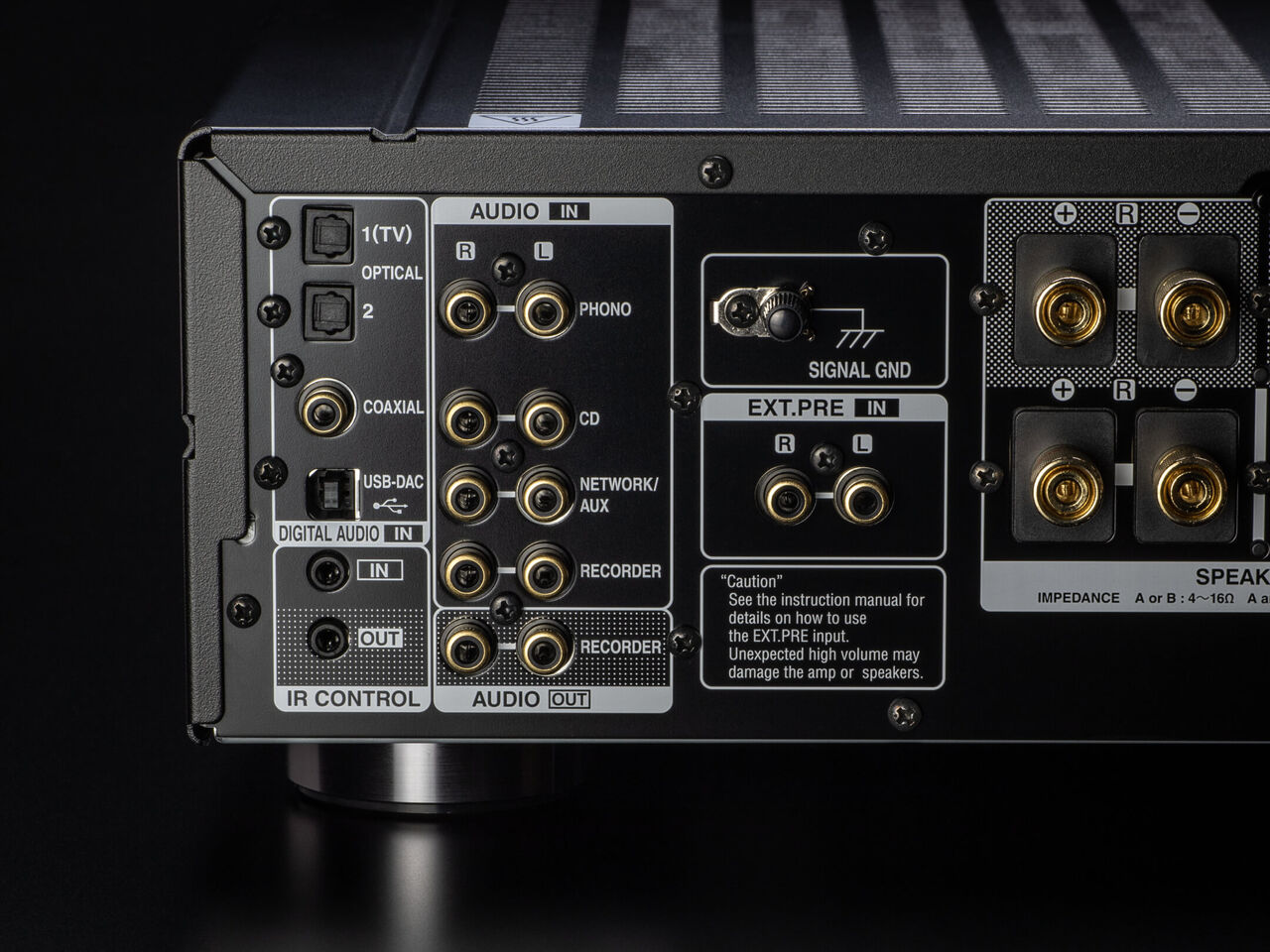

Connectivity

• Phono Input: Yes (MM / MC) (Default: MM)
• Analogue Input (Including Phono) / REC Out (RCA): 4 / 1 (PHONO / CD / AUX / RECORDER)
• Optical Input / Output (Maximum Support): 2 / 0 (192kHz / 24-bit)
• Coaxial Input / Output (Maximum Support): 1 / 0 (192kHz / 24-bit)
• External Pre Input (Power Amp Direct): Yes (Ext. Pre)

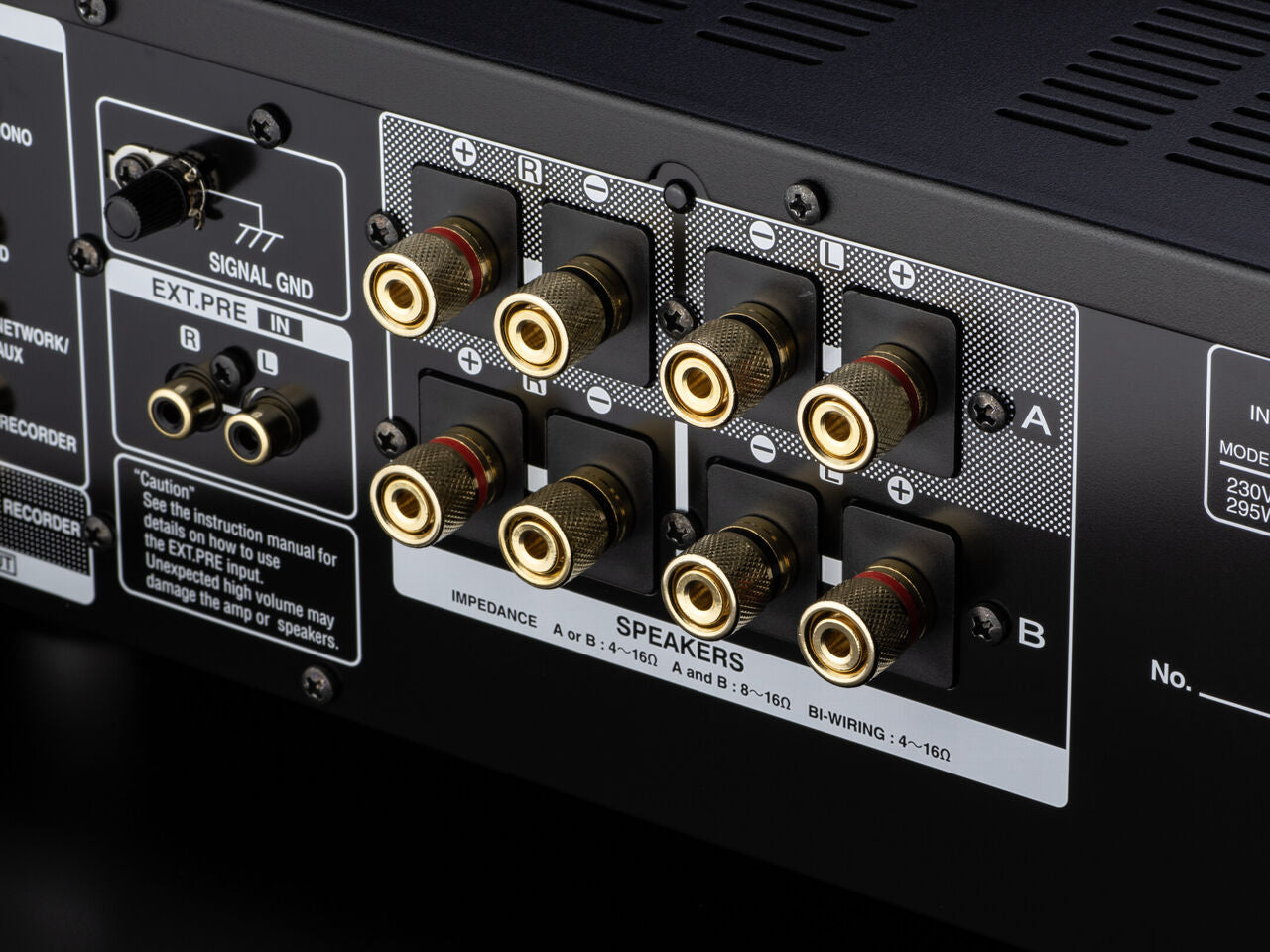

• Speaker Outputs (2 Sets): Yes (Bi-Wiring)
• Speaker Terminals: Gold-Plated
• Headphone Output: 1 (Speakers turn off when headphones are inserted)
• Remote Control Bus Terminal: Yes (Mini)
• AC Inlet: Yes

• Wi-Fi: No
• HEOS: No
• USB-B (USB DAC): 1 (Rear)
• Module or Main Device: New XMOS (XU210-256-TQ128)
• PCM Sample Rate: ~384kHz / 32-bit
• DSD Audio Streaming (DoP): ~11.2MHz
• Roon Certification: Yes (Roon Tested)


Control

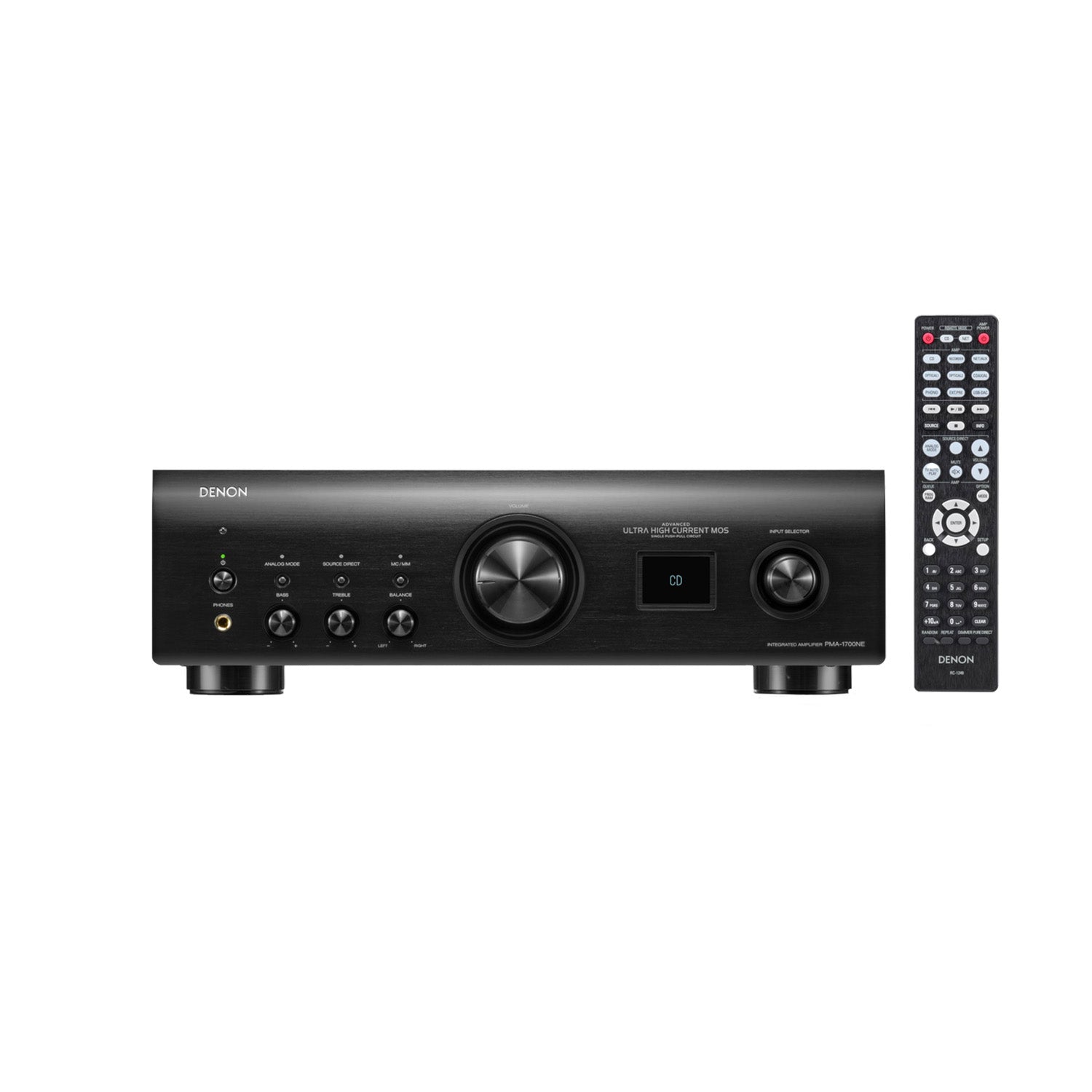

• Remote Controller: System Remote
  (w/CD Player Control)

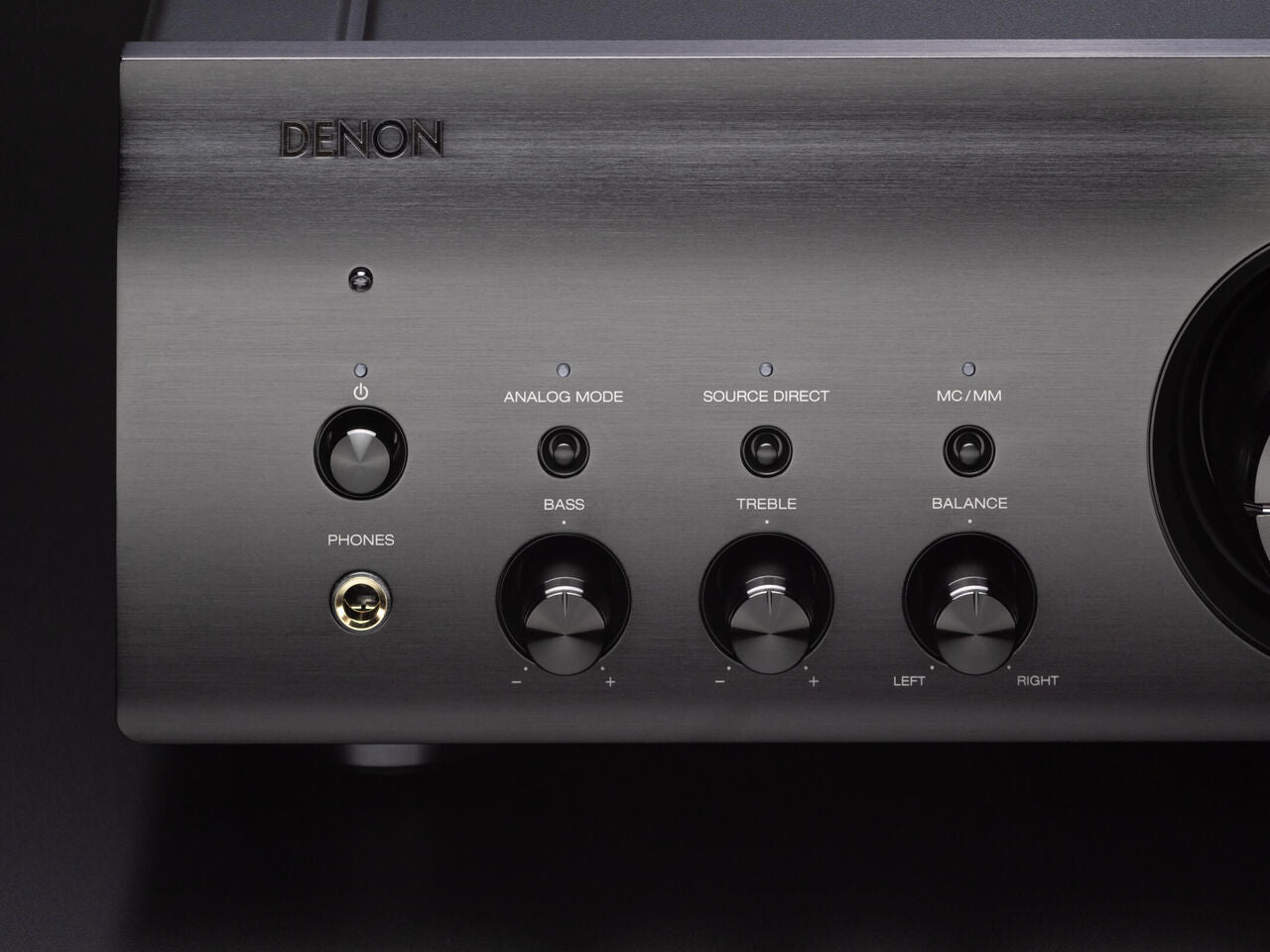

• Unit Control (Buttons):
  • Push Switch: 1 (Power)
  • Tact Switches: 3 (Analogue Mode, Source Direct, MM / MC)
• Unit control (Knob): 5
  VOLUME, INPUT SELECTOR, BASS, TREBLE, BALANCE
• LEDPOWER: 1 Red / Green
  ANALOG MODE: 1 Green
  SOURCE DIRECT: 1 Green
  MM / MC: 1 Green
• Front Panel Display: Yes
  (OLED 128 x 100 dot)
  MXS4036-A
• Display Language: Alphabetical
• Dimmer for Front Display: Bright / Dim / Dark / Off
• Control with App via Network Player (Use Remote Control Bus): Yes
• TV Auto-play (Opt/Coax digital-in detecter): Yes
• Last Function Memory: Yes
• Auto Standby Mode: Yes
• Owner's Manual Web Manual
  E2: (English, German, French, Italian, Dutch, Spanish,
  Swedish, Polish, Russian)
  E3: (English, French, Spanish)
  E1C: (Simplified Chinese)
  JP: (Japanese)
  Paper
  JP: (Japanese)
• Quick Start GuidePaper
  E2: (English, German, French, Italian, Dutch, Spanish,
  Swedish, Polish, Russian)
  E3: (English, French, Spanish)
  E1C: (Simplified Chinese)
  JP: (Japanese)
• Remote Control: Yes
• Battery: Yes (AAA x2)
• Power Cord: Yes
