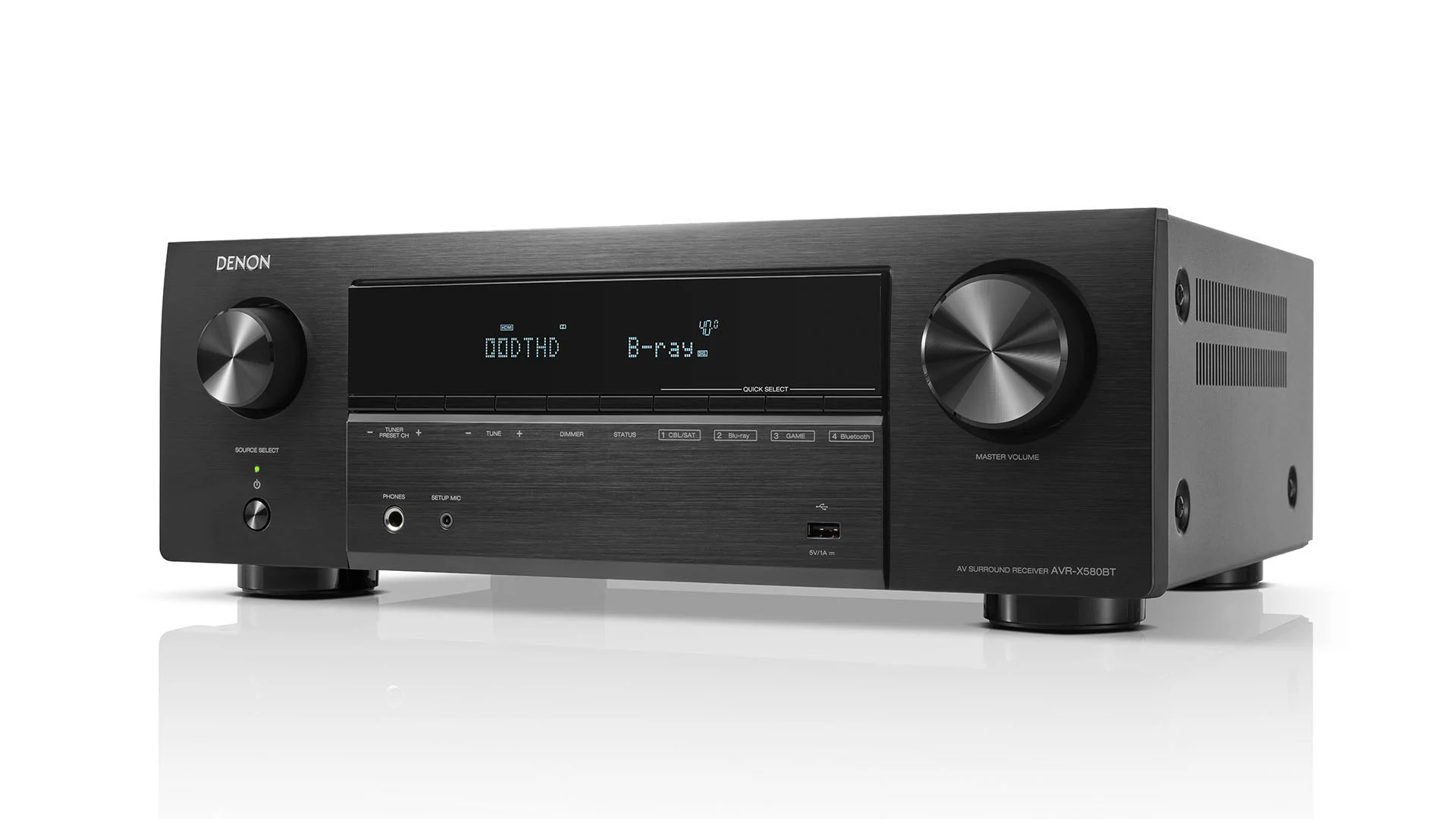

Denon AVR-X580BT AV Receiver

High-fidelity lossless Dolby TrueHD and Dolby Digital, Dolby digital Plus signal decoder, and Dolby Pro Logic II upmixer for 2-channel audio signals to createa full 5.1 surround sound experience.

High-fidelity lossless DTS-HD and DTS Surround, DTS 96/24signal decoding, along with DTSNeo 6 upmixer for 2-channelaudio signals to create a full 5.1surround sound experience.

Supports the latest technology on all HDMI inputs and output. ARC (Audio Return Channel) or eARC (Enhanced Audio Return Channel) makes playing TV audio through your AV receiver simple with just a single HDMI connection. eARC provides HD and 3D audio transmissions such as Dolby TrueHD, DTS HD Master Audio, and Dolby Atmos while ARC is limited to conventional 5.1ch audio formats or PCM.

Enjoy pristine picture quality on your 8K TV or projector.8K/60Hz pass-through and 8Kupscaling on 1080p or 4Kcontent is supported on all four HDMI inputs and one output. Supports HDCP 2.3, the latest copy protection standard, for peace of mind when streaming copy protected content.

Supports HDR (High Dynamic Range), HLG (Hybrid Log Gamma), as well as Dynamic HDR and HDR10+ pass-through. HLG offers HDR technology over broadcast content. Both Dynamic HDR and HDR10+ use dynamic metadata to optimize shadows and highlights as screens change.

Dolby Vision is a stunning HDR imaging technology that brings extraordinary colour, contrast, and brightness to the screen. Compatible with Dolby Vision so you can enjoy Dolby Vision content from a compatible source device and TV.

Supports Variable Refresh Rate (VRR), Quick Frame Transport (QFT), and Auto Low Latency Mode (ALLM) for a smooth, lag-free gaming experience when connected with compatible gaming devices.

Enjoy listening to your favourite audio content wirelessly from your smart devices.

Discover the incredible fidelity of high-resolution audio tracks and enjoy music as the artist intended. A front USB port supports up to 24bit/192kHz and hires audio playback from a USB drive. Supported audio formats are MP3, WMA, WAV, MPEG-4/AAC, FLAC, and ALAC.

Press one of the four QuickSelect buttons on the front panel to easily store and retrieve your favourite audio settings, such as an input source, volume level, or sound mode. You can also access quick Select buttons on the Denon 500 series remote app downloaded on your phone.

This iOS or Android control app allows you to turn the receiver on and off, select an input source, adjust the volume level, and browse music from your phone in a USB drive when connected to the receiver.

Immerse yourself in evenly distributed, accurate bass. Two subwoofer outputs smooth out low frequencies and provide better dispersion. No audible peaks or dips—just powerful,room-filling bass.

Award-winning Denon Setup Assistant provides simple, clear instructions to get started. Just connect your AV receiver to your TV and follow the instructions on the TV screen to connect your speakers, perform speaker measurements, and connect source devices.

As part of setup, follow the instructions on your TV to complete speaker setup and measurement using the included microphone. The receiver uses the measurements to optimize sound for the room, bringing the best out of your system. Just sit back and enjoy the great sound.

SPECIFICATIONS

Multichannel Surround

• Supported Formats:
  • DTS HD Master, DTS:X, DTS:X Pro
  • DTS Virtual:X
  • IMAX Enhanced
  • Dolby TrueHD, Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Atmos Music
  • Auro 3D
  • 360 Reality Audio / MPEG H
  • Multichannel Stereo
• Max Number of Processing (Preamp) Channels: 5.1

Sound Enhancements

• Mono Block Power Amp Construction
• Discrete Power Amplifier
• D.D.S.C. HD Digital
• Pure Direct
• Gold Plated RCA Terminals
• Clock Jitter Reducer
• Alpha Processing
• Audyssey
• Audyssey Dynamic EQ, Dynamic Volume
• Dirac Live Upgradability
• Compressed Audio Restorer

Network

• Media Server: Yes
• HEOS Wireless Multi-Room Technology: Yes
• Voice Assistant Compatibility: Alexa / Google Voice Assistant / Apple HomePod
• Supported Audio Formats:
  • Lossy: MP3, WMA, AAC
  • Lossless: FLAC, ALAC, WAV
  • High-Resolution: FLAC HD, WAV, ALAC (192 kHz / 24-bit)
  • DSD Audio Streaming: Yes
• Streaming Services:
  • AirPlay 2
  • TuneIn Internet Radio
  • Spotify Connect
  • Pandora
  • SiriusXM
  • Roon Tested
  • HEOS App Control
• Remote App Compatibility: Denon 500 Series Remote
• Connectivity:
  • Ethernet Ports: Yes
  • Wi-Fi: Yes
  • Bluetooth: Yes

HDMI

• HDMI Inputs: 4 (Back)
• HDCP 2.3 Support: Yes
• HDMI Outputs: 1 (Main)
• HDMI 2.1 Features: 8K/60Hz AB, 4K/120Hz AB
• HDR Support: HDR, HLG, Dolby Vision, HDR10+, Dynamic HDR
• Gaming Features:
  • ALLM (Auto Low Latency Mode) Pass-Through
  • Variable Refresh Rate (VRR), Quick Frame Transport (QFT), Quick Media Switching (QMS)
• 3D Signal Pass-Through: Yes
• 8K Signal Processing: Pass-Through, Scaling, GUI Overlay
• DSD Audio Capability: Yes
• ARC/eARC Support: Yes
• Auto LipSync: Yes

Multiroom / CI

• Multi-Room Zones: Yes
• Zone Audio Source: HDMI, Optical, Coaxial, Network, USB, Analog
• Zone Audio Output: Speaker, Pre-Out
• Zone HDMI Output from HDMI Source: No
• Control Connectivity:
  • IP Control
  • RS232 Control
  • Web Control
  • App Control
• Remote In/Out: No
• DC Trigger Output: Yes
• HDMI Diagnostics: Yes

Others

• Auto Speaker Setup by Microphone: Yes
• Front Display: 1-Line FLD
• GUI Languages: 3
• Setup Assistant: Yes
• Quick Select / Quick Select Plus: Yes
• Variable Crossover: Yes
• Optimized Bass Redirection: Yes
• Bass Sync: No
• ECO Mode: Yes
• Auto Power Off: Yes
• Sleep Timer: Yes

Inputs / Outputs

• HDMI In / Out: 4 / 1
• Multi-Room Video Out (Video / HDMI): No
• Analog In / Out: 2 / No
• Phono (MM) In: Yes
• Digital Inputs: Optical (2) / Coaxial (1)
• Multi-Room Output: Analog / Digital: No
• Multichannel Pre-Out: 0.2
• Subwoofer Output: 2
• Speaker Terminals: 5
• Speaker A/B: Yes
• Bi-Amp Drive: Yes
• Front Inputs: USB-A
• USB Audio / Made for iPod / Made for iPhone: Yes / No
• AM/FM Tuner: Yes

Specifications

• Number of Power Amps: 5
• Power Output:
  • 8Ω, 20 Hz – 20 kHz, 0.08% 2ch Drive: 70 W
  • 6Ω, 1 kHz, 0.7% 2ch Drive: 90 W
  • 6Ω, 1 kHz, 10% 1ch Drive: 140 W

General

• Metal Front Panel: No
• System Remote Control: RC-1254
• Pre-Programmed / Learnable / LCD Display: No
• Power Consumption: 310 W
• Power Consumption (No Sound, ECO On / Off): 26 W / 35 W
• Standby Consumption: 0.1 W
• CEC Standby Consumption: 0.5 W

Dimensions & Weight

• Maximum Dimensions (W x D x H):
  • Antenna Horizontal: 17.1 × 13 × 6 inches
  • Antenna Vertical: 17.1 × 13 × 6 inches
  • Without Antenna: 17.1 × 13 × 6 inches
• Weight: 16.8 lbs
