Denon AVC-X6800H - 11.4 AV Receiver

Denon AVC-X6800H - 11.4 AV Receiver

$5,999.00 AUD
$5,999.00 AUD
Sale Sold out
Shipping calculated at checkout.
Color

Denon AVC-X6800H - 11.4 AV Receiver

Designed and manufactured in Japan, the AVR-X6800H drives 11.4 channels of amplification for an upscaled experience. With Dolby Atmos and DTS:X, plus IMAX Enhanced and Auro 3D, the AVR-X6800H envelops larger living spaces in breathtaking 3D audio. With HEOS® Built-in, wirelessly stream your favorite music.

  • 11.4 channels
  • 140W per channel
  • 8K Ultra HD
  • 3D Audio
  • HEOS® Built-in
  • Seven HDMI Inputs

Discover an uncompromising home theater AV receiver

Optimize for your room

Enhance performance with room correction options from Audyssey (installed) or Dirac Live® Room Correction and Dirac Live® Bass Control (optional).



Powerful 11-channel amplifier

Featuring a sophisticated power amplifier design, the AVR-X6800H delivers high-power performance at 140 watts per channel (8 Ohms, 20 Hz–20 kHz, THD: 0.05%, 2 ch. driven) to ensure a dynamic and precise entertainment experience.

3D audio experience

Get enveloped in sound with Dolby Atmos®, DTS:X®, IMAX Enhanced and Auro 3D, along with Dolby Surround, DTS Neural:X, and Auro-Matic upmixer to optimize legacy content.

Configuration flexibility.

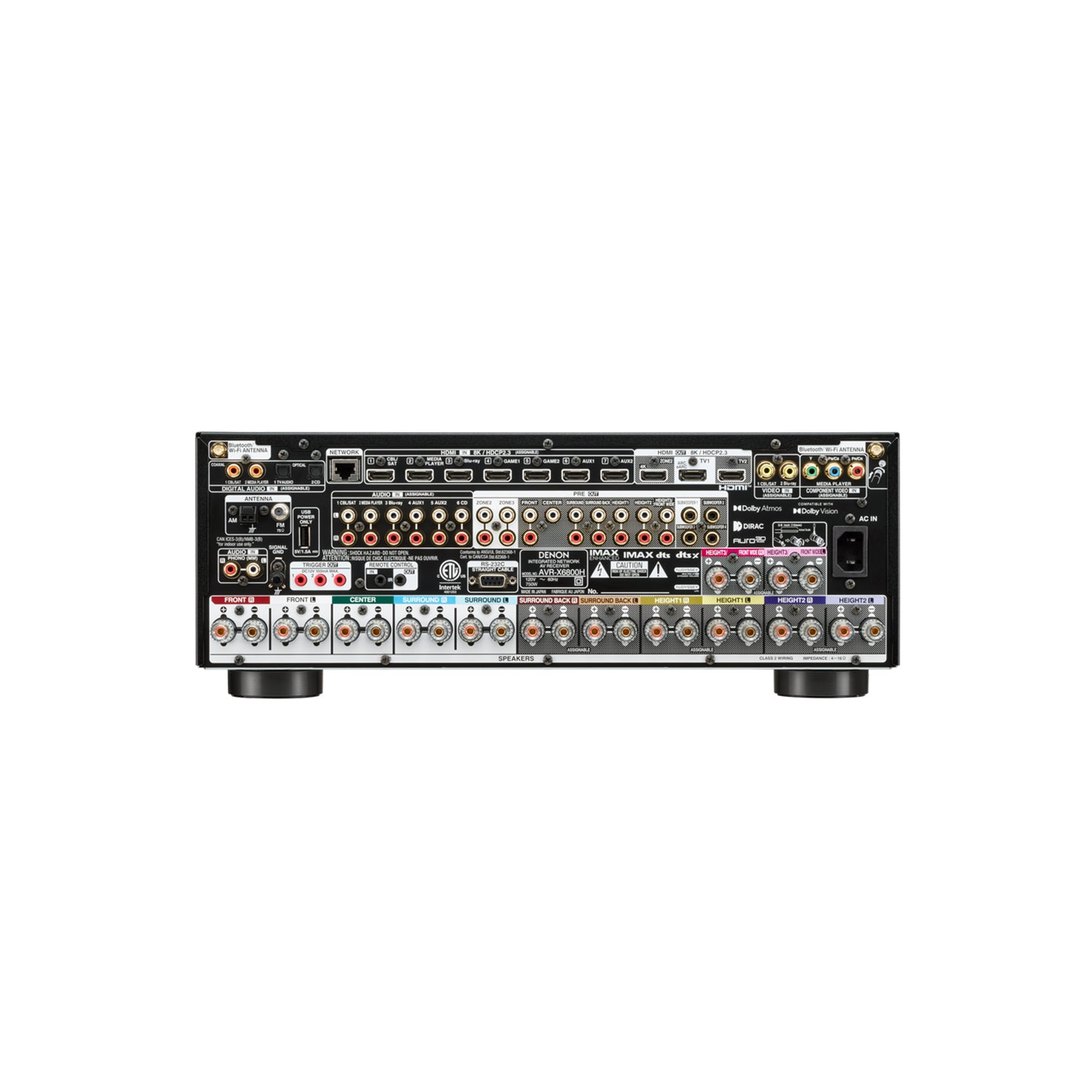

AVR-X6800H offers many setup options and flexibility to adjust your home theater to meet your needs. Supports 13.4 channel processing capability, [Pre-Elevated shot of the back] Amplifier mode, and optional Dirac Live upgradability (with fee).

Advanced 8K home theater

8K video is supported on all seven HDMI inputs and two of the three outputs. With HLG, HDR, Dolby Vision, HDR10+, and Dynamic HDR pass-through, there's no need to worry about video compatibility or picture quality.

HEOS® Built-in technology

Stream music wirelessly from a variety of free and premium streaming services. Share content to HEOS devices, like Denon Home speakers, in other rooms.



Sonic Innovation
For the Past 110 Years

For more than a century, we've crafted cutting-edge audio products that deliver the ultimate detail. Our Japanese heritage inspires us, and each product is hand-tuned by our sound master. Prepare to hear sound differently.

Details & Specifications:

Multichannel Surround

Audio Formats:

  • DTS HD Master: Yes
  • DTS:X: Yes
  • DTS

    Pro: Yes
  • DTS Neo:6: No
  • DTS Neural:X: Yes
  • DTS Virtual:X: Yes
  • IMAX Enhanced: Yes
  • Dolby TrueHD: Yes
  • Dolby Atmos: Yes
  • Dolby Atmos Height Virtualization: Yes
  • Dolby Atmos Music: Yes
  • Dolby ProLogic II: No
  • Dolby Surround: Yes
  • Auro 3D: Yes
  • 360 Reality Audio: Yes
  • MPEG H: Yes
  • Multichannel Stereo: Yes
  • Max. number of processing (preamp) channels: 13.4

Sound Enhancements

Construction:

  • Mono Block Power Amp Construction: Yes
  • Discrete Power Amplifier: Yes
  • D.D.S.C. HD Digital: Yes (32 bit)
  • Pure Direct: Yes
  • Gold Plated RCA Terminals: Yes
  • Clock Jitter Reducer: Yes

Audio Processing:

  • Alpha Processing: AL32 Processing Multichannel
  • Audyssey: MultEQ XT32
  • Audyssey Dynamic EQ: Yes
  • Audyssey Dynamic Volume: Yes
  • Audyssey LFC: Yes
  • Dirac Live Upgradability: Yes
  • Compressed Audio Restorer: Yes

Network

Media Features:

  • Media Server: Yes
  • HEOS Wireless Multi-Room Technology: Yes
  • Bluetooth Re-transmit for Bluetooth headphones: Yes (With volume control)
  • Alexa / Google Voice Assistant / Apple HomePod: Yes / Yes / Yes

Audio Formats:

  • Lossy Formats: MP3 / WMA / AAC - Yes / Yes / Yes
  • Lossless Formats: FLAC / ALAC / WAV - Yes / Yes / Yes
  • FLAC HD 192/24 / WAV 192/24 / ALAC 192/24: Yes / Yes / Yes
  • DSD Audio Streaming: Yes (2.8/5.6MHz)
  • FLAC HD 192/24: Yes
  • WAV 192/24: Yes
  • ALAC 192/24: Yes
  • Gapless Playback: Yes (FLAC, WAV, ALAC, DSD)

Streaming and Connectivity:

  • AirPlay Audio Streaming: Yes (AirPlay 2)
  • Internet Radio: Yes (TuneIn)
  • Spotify Connect: Yes (Connect)
  • Pandora: Yes
  • SiriusXM: Yes
  • Other Streaming Services: Amazon Music HD / Amazon Music / TIDAL / Deezer / iHeart Radio / Napster / SoundCloud / Mood Mix
  • Roon Tested: Yes
  • HEOS App Control: Yes
  • Compatible with Remote APP for Smart Phones: Denon AVR Remote
  • Compatible with Remote APP for Tablets: Android / iOS / Amazon Kindle

Network Connectivity:

  • Ethernet Ports: Yes
  • Wi-Fi: Yes
  • Bluetooth: Yes

HDMI

HDMI Inputs:

  • Back: 7
  • Front: No

HDCP Support:

  • HDCP2.3: Yes

HDMI Outputs:

  • Main: 2
  • Zone: 1

Video Conversion:

  • Analog -> HDMI: Yes

HDMI to HDMI Scaling:

  • 1080P/4K to 8K: Yes

HDMI Specifications:

  • HDMI 2.1: 8K/60 Hz AB / 4K/120 Hz AB - Yes / Yes
  • 8K/60Hz AB / 4K/120Hz AB Pass-Through In/Out: 7 / 2 (up to 40Gbps)
  • HDMI 2.0: 3D / 4K / CEC / ARC / InstaPrevue - Yes / Yes / Yes / Yes / No
  • HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDR: Yes / Yes / Yes / Yes / Yes
  • ALLM (Auto Low Latency Mode) Pass-Through for Gaming: Yes
  • Variable Refresh Rate / Quick Frame Transport / Quick Media Switching: Yes / Yes / No
  • 3D Signal Pass-Through: Yes
  • 8K Signal Pass-Through, Scaling, GUI Overlay: Yes / Yes / Yes
  • 4K Signal Pass-Through / Scaling / GUI Overlay: Yes / Yes / Yes
  • HDMI Pass-Through in Standby Mode: Yes
  • CEC: Yes
  • DSD Audio Capability: Yes
  • Audio Return Channel (ARC / eARC): ARC, eARC
  • Auto LipSync: Yes

Multi-room / CI

Multi-Room Zones:

  • Number of Zones: 3

Zone Audio Source:

  • HDMI: Yes (2-channel)
  • Optical, Coaxial: Yes (2-channel)
  • Network: Yes
  • USB: Yes
  • Analog: Yes

Zone Audio Output:

  • Speaker: Yes
  • Pre-Out: Yes

Zone HDMI Output from HDMI Source:

  • Yes

Control Connectivity:

  • IP Control: Yes
  • RS232 Control: Yes
  • Web Control: Yes
  • App Control: Yes

Remote In / Out:

  • Remote In: Yes
  • Remote Out: Yes

DC Trigger Output:

  • 3

HDMI Diagnostics:

  • Yes

Others

Auto Speaker Setup by Microphone:

  • Audyssey MultEQ XT32
  • Dirac Live (upgrade)

Front Display:

  • 2 Line FLD

Graphic User Interface - GUI:

  • Modern HD GUI

GUI Languages:

  • 3

Setup Assistant:

  • Yes

Quick Select Plus, Quick Select:

  • Yes / No

Firmware Update by Network / USB:

  • Yes / Yes

Variable Crossover:

  • Yes

Optimized Bass Redirection:

  • Yes

Bass Sync:

  • Yes

ECO Mode:

  • Yes

Auto Power Off:

  • Yes

Sleep Timer:

  • Yes

Inputs Outputs

VIDEO

  • Composite In / Out: 2 / No
  • Component In / Out: 1 / No
  • HDMI In / Out: 7 / 3
  • Multi-Room Video Out: Video / HDMI: No / Yes

AUDIO

  • Analog In, Out: 6 / No
  • Phono (MM) In: Yes
  • Digital In: Optical / Coaxial: 2 / 2
  • Multi-Room Out: Analog / Digital: 2 / No
  • Multichannel Pre-out: Yes (13.4)
  • Subwoofer Out: 4 (independent)

OTHER

  • Speaker Terminal: Gold-Plated Screw / Regular Screw: Yes / No
  • Number of Speaker Terminals: 13
  • Speaker A / B: assignable
  • Bi-amp drive: assignable
  • Multi-Room Speaker Terminal: assignable
  • Front Inputs: Audio / Composite / Digital (Opt) / HDMI / USB: No / No / No / No / Yes
  • USB Audio / Made for iPod / Made for iPhone: Yes / No / No
  • USB Power Supply on Rear Panel: Yes
  • AM/FM Tuner: Yes

Specifications

Number of Power Amps: 11

Power Output:

  • 8 ohm, 20 Hz - 20 kHz, 0.05% 2ch Drive: 140 W per channel
  • 6 ohm, 1 kHz, 0.7% 2ch Drive: 175 W per channel
  • 6 ohm, 1 kHz, 10% 1ch Drive: 250 W per channel

General

Design and Control:

  • Metal Front Panel: Yes
  • System Remote Control: RC-1256
  • Pre-programmed / Learnable / LCD Display: Yes / No / No

Power Consumption:

  • Power Consumption in W: 750
  • Power Consumption No-Sound (ECO On / Off) in W: 65W / 110W
  • Standby Consumption in W: 0.1
  • CEC Standby Consumption in W: 0.5
  • Network Standby Consumption in W: Less than 2.0

Dimensions and Weight:

  • Maximum Dimensions (W x D x H) in mm:
    • Antenna:Horizontal: 171 × 153 × 66
    • Antenna:Vertical: 171 x 153 x 93
    • w/o Antenna: 171 x 149 x 66
  • Carton Dimensions (Packaging) (W x D x H) in Inches: 20.9 x 18.3 x 11.9
  • Weight in LBS: 34.4
  • Weight in LBS (Packaging): 40.1

Power and Audio Specifications:

  • Power Supply: AC 120 V, 60 Hz
  • Speaker Impedance: 4–16Ω/ohms

Pre-Amplifier Section:

  • Input Sensitivity: 200 mV
  • Frequency Response: 10 Hz–100 kHz — +1, –3dB (Direct mode)
  • S/N Ratio: 102dB (IHF-A weighted, Direct mode)

FM Section:

  • Tuning Frequency Range: 87.5–107.9 MHz

AM Section:

  • Tuning Frequency Range: 520 kHz–1710 kHz

Included Accessories:

  • Main unit, remote control, batteries, AM/FM antennas, wire labels, quick start guide, Audyssey microphone, cardboard microphone stand, 2 External Detachable Antennas, AC cord

UPC Code:

  • 747192140359
