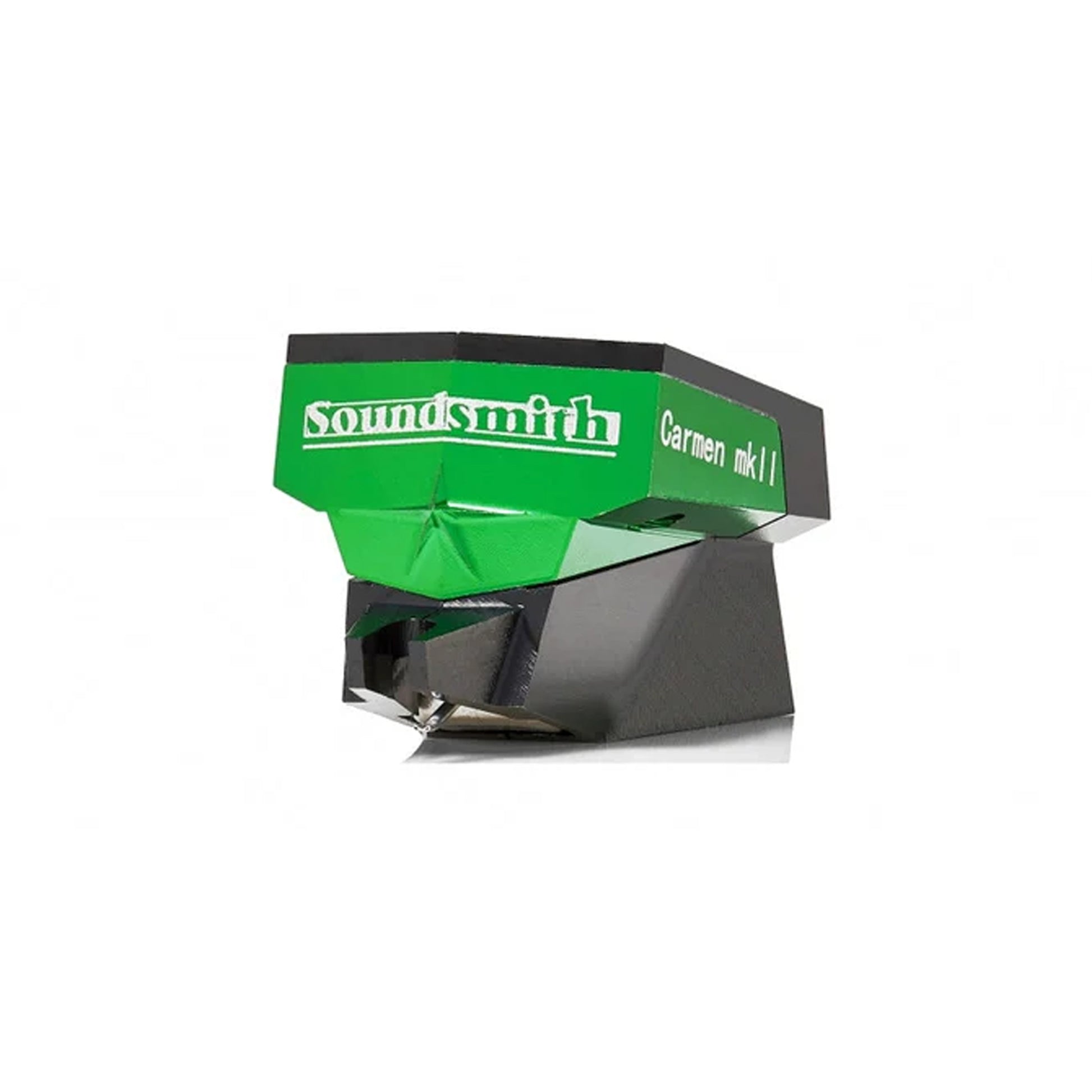

Carmen MkII

Anthem MDX-16

The Carmen MKII was created out of the desire to make a very high performance design at an affordable price... Just slightly lush with a well developed midrange, the Carmen MKII is surprisingly pleasing and will seduce you into late listening sessions.

The stylus used is a part of what makes it special; an ultra low mass cut and polished into a true Hyper-Elliptical shape. The combination of low tip mass and the Moving Iron gives the Carmen MKII a tremendous resolution advantage over MC designs selling for more than twice the price. Housed in our new ES DEMS body design, the Carmen MKII delivers.

Technical Specifications:

Stylus: Nude Elliptical, 0.120mm SQ Radius of curvature: 6 x 17 ?m

Cantilever: Aluminum Alloy Recommended Tracking force: 1.3-1.6 gm

Effective tip mass: 0.35 mg

Compliance: 22 ?m/mN

Frequency response: 20-20,000 Hz ± 2.5 dB

Channel Separation (stereo only): 1000 Hz >26 dB 50-15,000 >20 dB

Channel difference: <1.6 dB (Stereo) <1.0 dB (Mono)

Output voltage: 2.12 mV Cartridge weight: 9.2 Grams Loading: ? 47 k?
